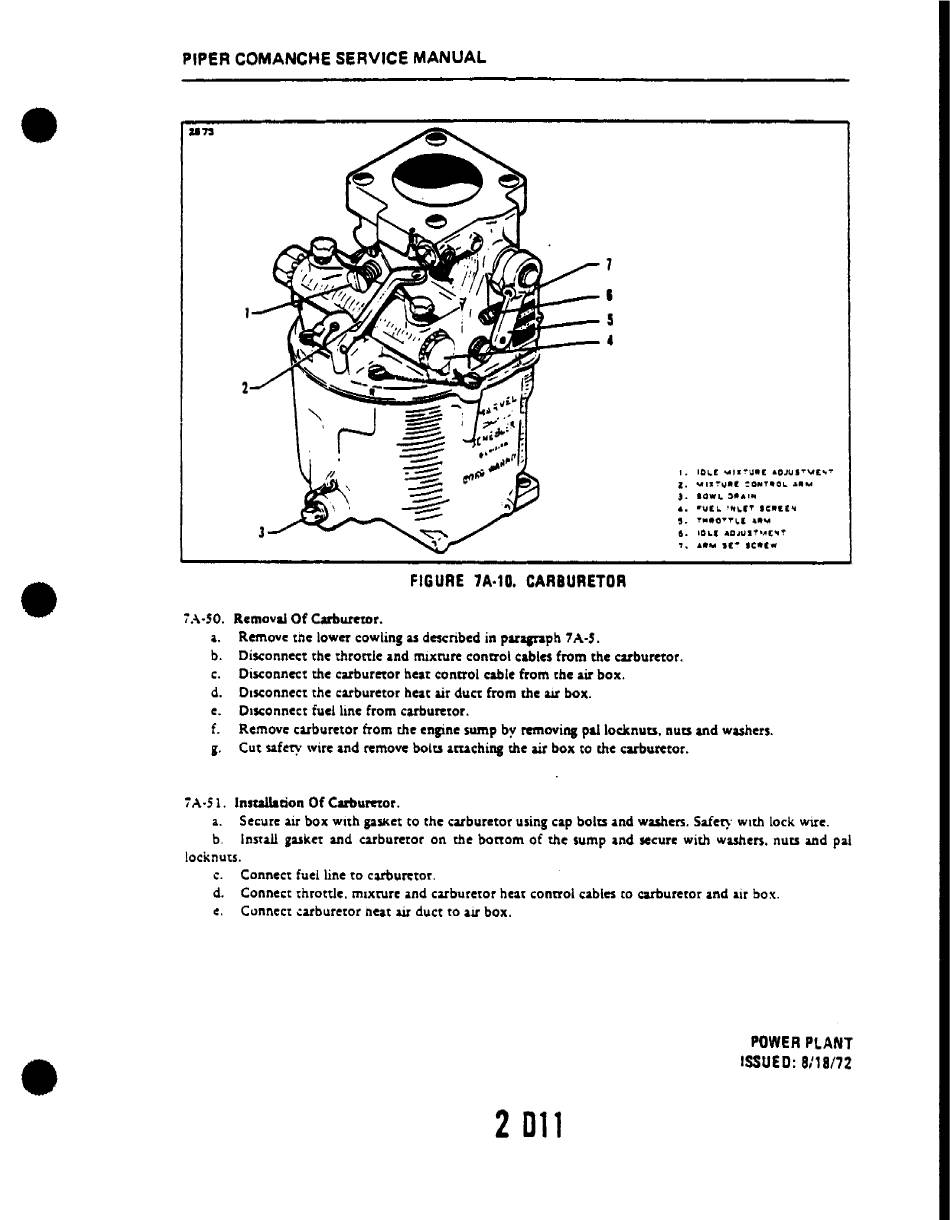

FIGURE lA·l0. CARBURETOR
7A·50. Removal Of Carburetor.
a. Remove the lower cowling as described in parqraph 1A·5.
b. Disconnect the throttle and mixture control cables from tht carburetor.
c. Disconnect the carburetor heat control cable from tbe air box.
d. Disconnect the carburetor heat air duct from the aU box.
e. Disconnect fuei line from carburetor.
f. Remove carburetor from the engine sump by removing pa1locltnuts. nutS and washers.
g. Cut safcty wire and remove bolts attaching the air box to the carburetor.
7A·
S
1.
Installation Of Carburetor.
a. Secure air box with gaSkCt to the carburetor using cap bolts and washers. Safet)' With lock wire.
b. Install gasket and carburetor on the bottom of the sump and secure with washers. nuts and pal
locknuts.
c. Connect fuel line to carburetor.
d. Conncct throttle. mixture and carburetor heat control cables co carburetor and air box .
e. Connect carburetor neat air duct to air box.
