PIPER COMANCHE SERVICE MANUAL
COMPONENT LUlfUCANT
FREQUENCY
1. PROPELLER GREA.SE FITTING. RIGHT
MIL·G·23827 100 HRS
2. PROPELLER GREA.SE FITTING. LEFT MIL-G-23827
100 HRS
PA·24-1S0 & PA·24-260
SKETCH H
NOTE
REMOVE ONE OF THE TWO GREA.SE FITTINGS FOR EACH BLADE. APPLY GREA.SE
THROUGH FITTING UNTIL FRESH GREASE APPEA.RS AT HOLE OF REMOVED
FITTING
•
31'.
.
. .

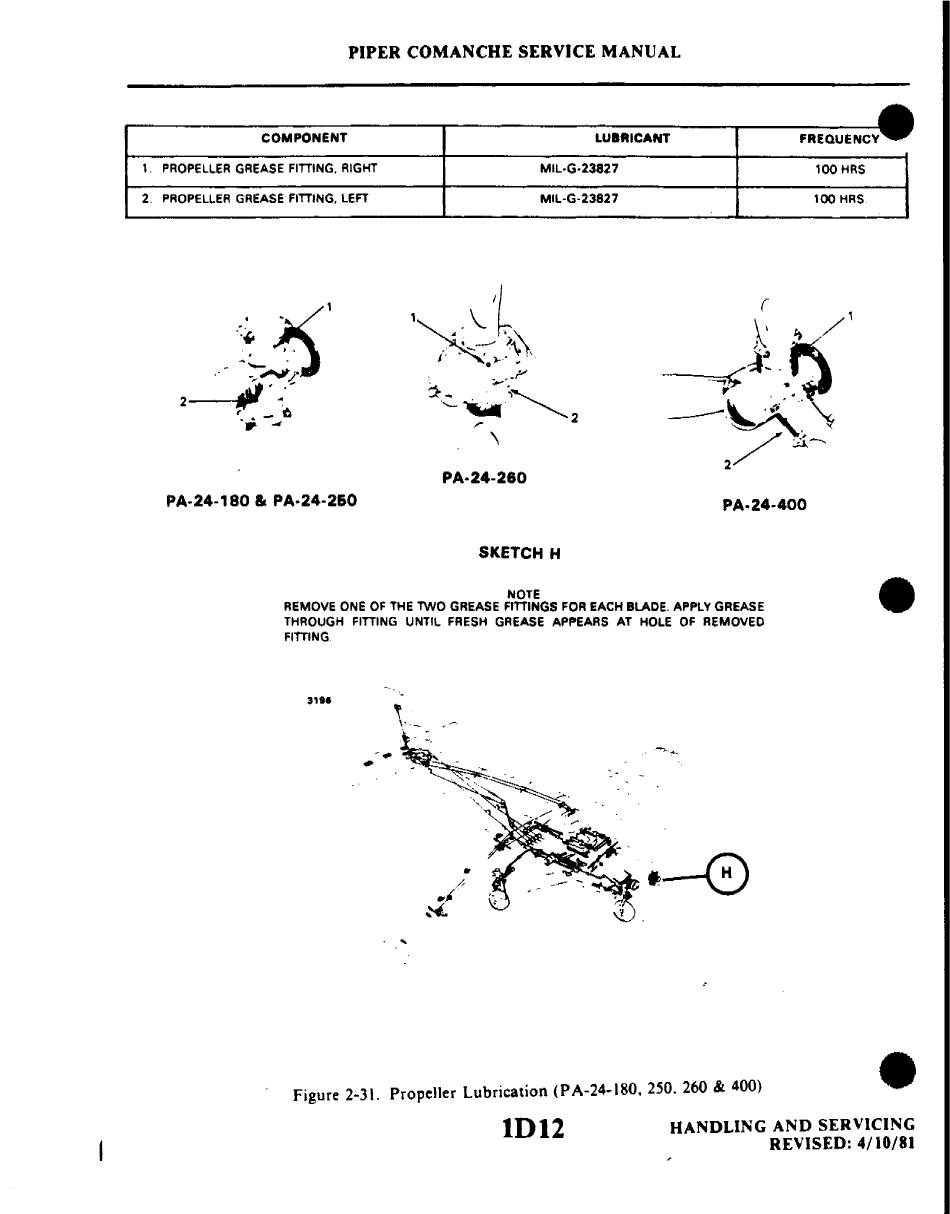

Figure 2-31. Propeller Lubrication (PA-24-180. 250. 260 & 400)
•
ID12
HANDLING AND SERVICING
REVISED: 4/10/81
