PIPER
COMANCHE SERVICE MANUAL
•

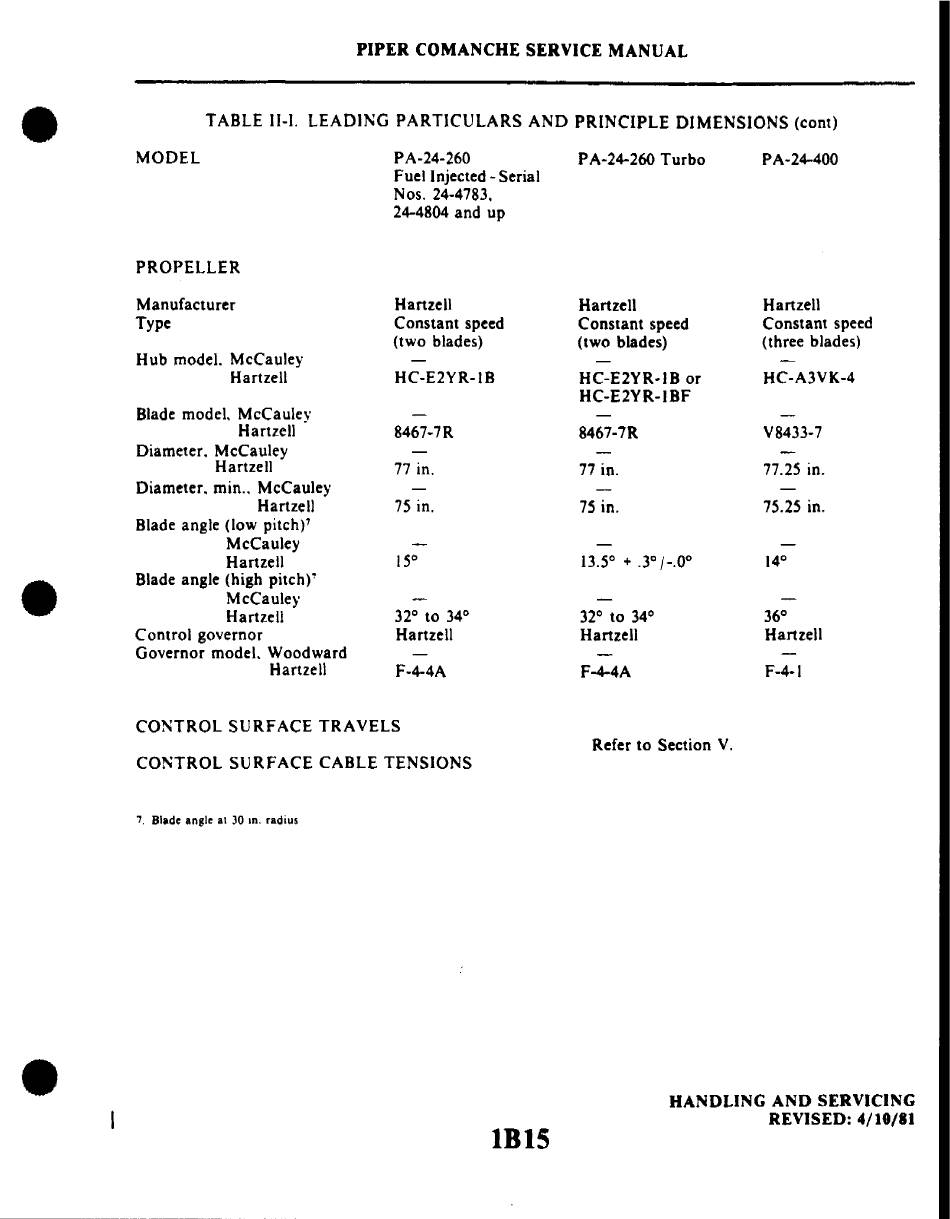

TABLE II-I. LEADING PARTICULARS AND PRINCIPLE DIMENSIONS (cont)
MODEL PA-24-260
P A-24-260 Turbo PA-24-400
Fuel Injected - Serial
Nos. 24-4783.
24-4804 and up
PROPELLER
Manufacturer Hartzell
Hartzell
Hartzell
Type Constant speed
Constant speed
Constant speed
(two blades)
(two blades)
(three blades)
Hub model. McCauley
Hartzell HC-E2YR-IB HC-E2YR·IB or HC-A3VK-4
HC-E2YR-IBF
Blade model. McCauley
Hartzell
8467-7R
8467-7R V8433-7
Diameter. McCauley
Hartzell
77 in.
77 in. 77.25 in.
Diameter. min .. McCauley
Hartzell 75 in.
75 in. 75.25 in.
Blade angle (low pitch)?
McCauley
Hartzell
15° 13.5° + .3°1-.0° 14°
•
Blade angle (high pitch)'
McCauley
Hartzell
32°
to
34°
32° to 34°
36°
Control governor
Hartzell Hartzell Hartzell
Governor model. Woodward
Hartzell
F-4-4A
F-4-4A
F-4-J
CONTROL SURFACE TRAVELS
Refer to Section V.
CONTROL SURFACE CABLE TENSIONS
7. Blade angle al 30 in. radius
•
HANDLING AND SERVICING
REVISED: 4/10/11
