PIPER COMANCHE SERVICE MANUAL
•
I
CZIO
15. BOLT ASSEMBLY
16. BOLT ASSEMBLY
11. FORK ASSEMBLY
34 ORIFICE TUBE
35. PISTON TUBE
36. "0" RING. PISTON TUBE PLUG
31. PLUG. PISTON TUBE
38. "0" RING. ORIFICE TUBE
39 RING. ORIFICE TUBE IPA·24-4001
40. ORIFICE PLATE
41. SNAP RING
42. PIN. BEARING RETAINING
43. BEARING. UPPER PISTON TUBE
44. BEARING. LOWER PISTON TUBE
45. "0" RING
46. "0" RING
41. WIPER STRIP
48. WASHER
49. SNAP RING
50. NUT
51. WASHER
•

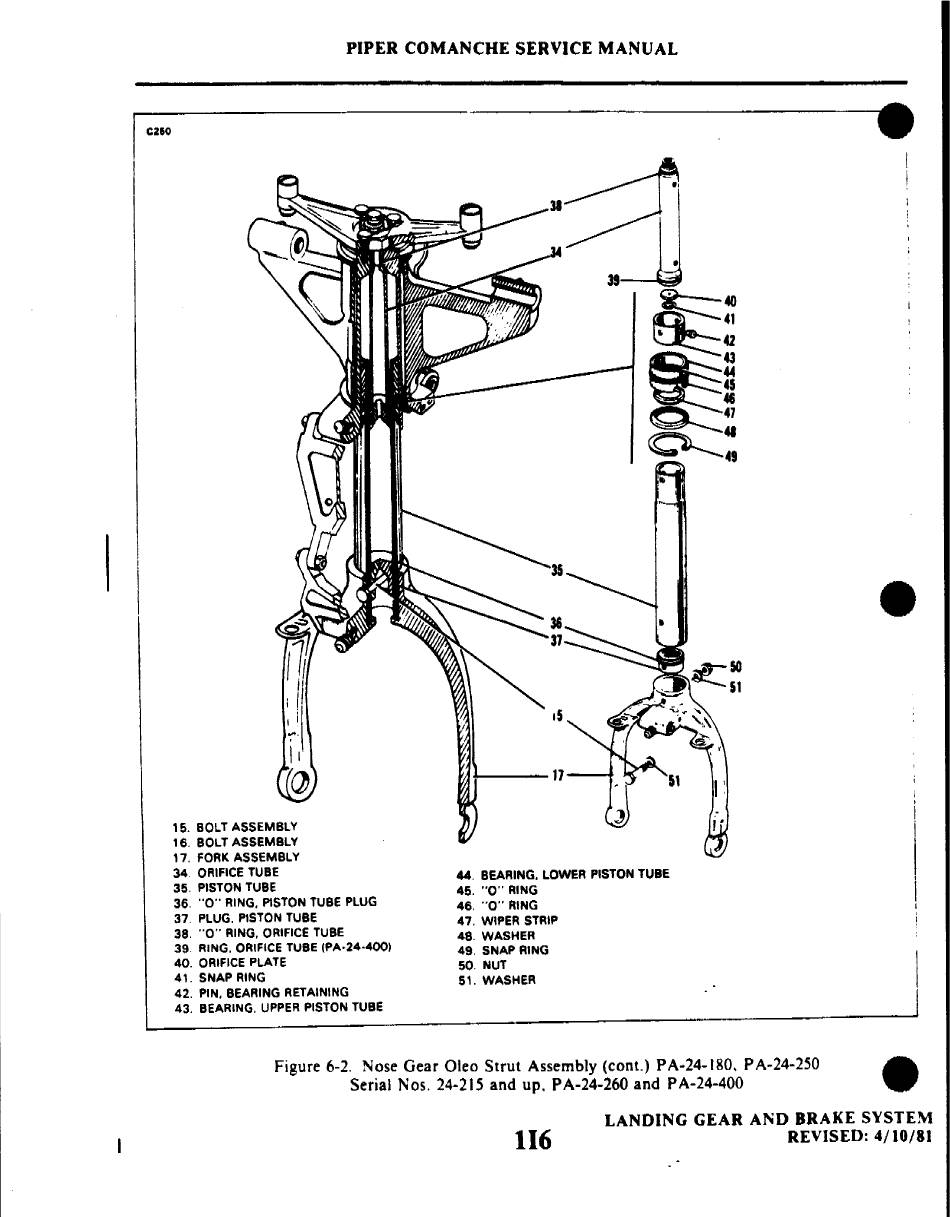

Figure 6-2. Nose Gear Oleo Strut Assembly (cont.) PA·24-180. PA-24-250 •
Serial
Nos.
24-215 and up. PA-24-260 and PA-24-400
LANDING GEAR AND BRAKE SYSTEM
116
REVISED: 4/10/81
