PIPER COMANCHE SERVICE MANUAL

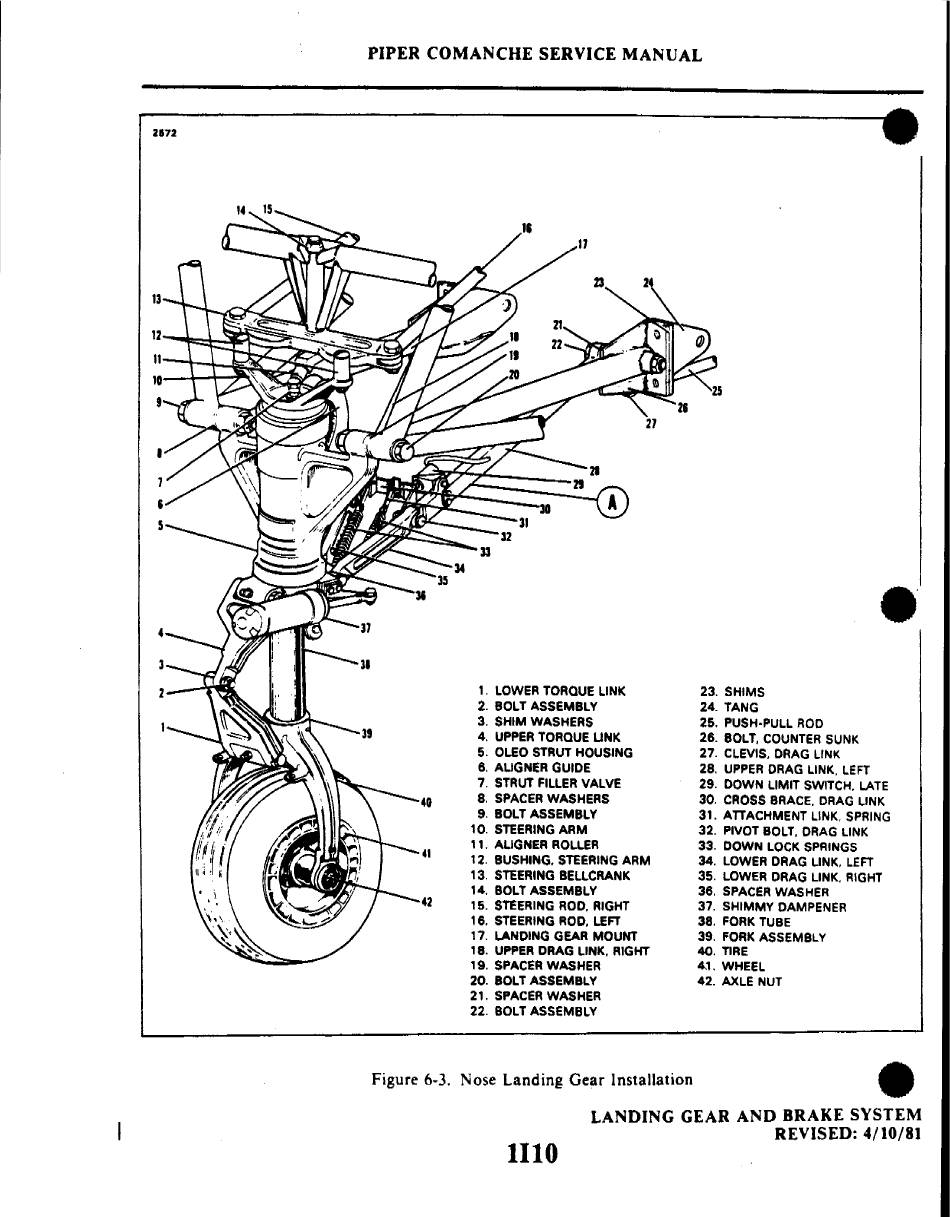

Figure 6·3. Nose Landing Gear Installation
1. LOWER TORQUE LINK
2.
BOLT ASSEMBLY
3.
SHIM WASHERS
4. UPPER TORQUE UNK
5.
OLEO STRUT HOUSING
6.
ALIGNER GUIDE
7.
STRUT FILLER VALVE
8.
SPACER WASHERS
9. BOLT ASSEMBLY
10.
STEERING ARM
11. ALIGNER ROLLER
12. BUSHING, STEERING ARM
13.
STEERING BELLCRANK
14.
BOLT ASSEMBLY
, 5.
STEERING ROD. RIGHT
, 6.
STEERING ROD. LEFT
, 7.
LANDING GEAR MOUNT
18. UPPER DRAG LINK, RIGHT
19. SPACER WASHER
20. BOLT ASSEMBLY
21.
SPACER WASHER
22. BOLT ASSEMBLY
13
31
32
30
A
••
23.
SHIMS
24. TANG
25.
PUSH·PULL ROD
26.
BOLT, COUNTER SUNK
27.
CLEVIS, DRAG LINK
28. UPPER DRAG LINK. LEFT
29.
DOWN LIMIT SWITCH. LATE
30.
CROSS BRACE. DRAG LINK
31.
ATTACHMENT LINK. SPRING
32. PIVOT BOLT, DRAG LINK
33.
DOWN LOCK SPRINGS
34.
LOWER DRAG LINK, LEFT
35.
LOWER DRAG LINK. RIGHT
36.
SPACER WASHER
37. SHIMMY DAMPENER
38.
FORK TUBE
39. FORK ASSEMBLY
40. nRE
4.1. WHEEL
42. AXLE NUT
•
LANDING GEAR AND BRAKE SYSTEM
REVISED: 4/10/81
