PIPER COMANCHE SERVICE MANUAL

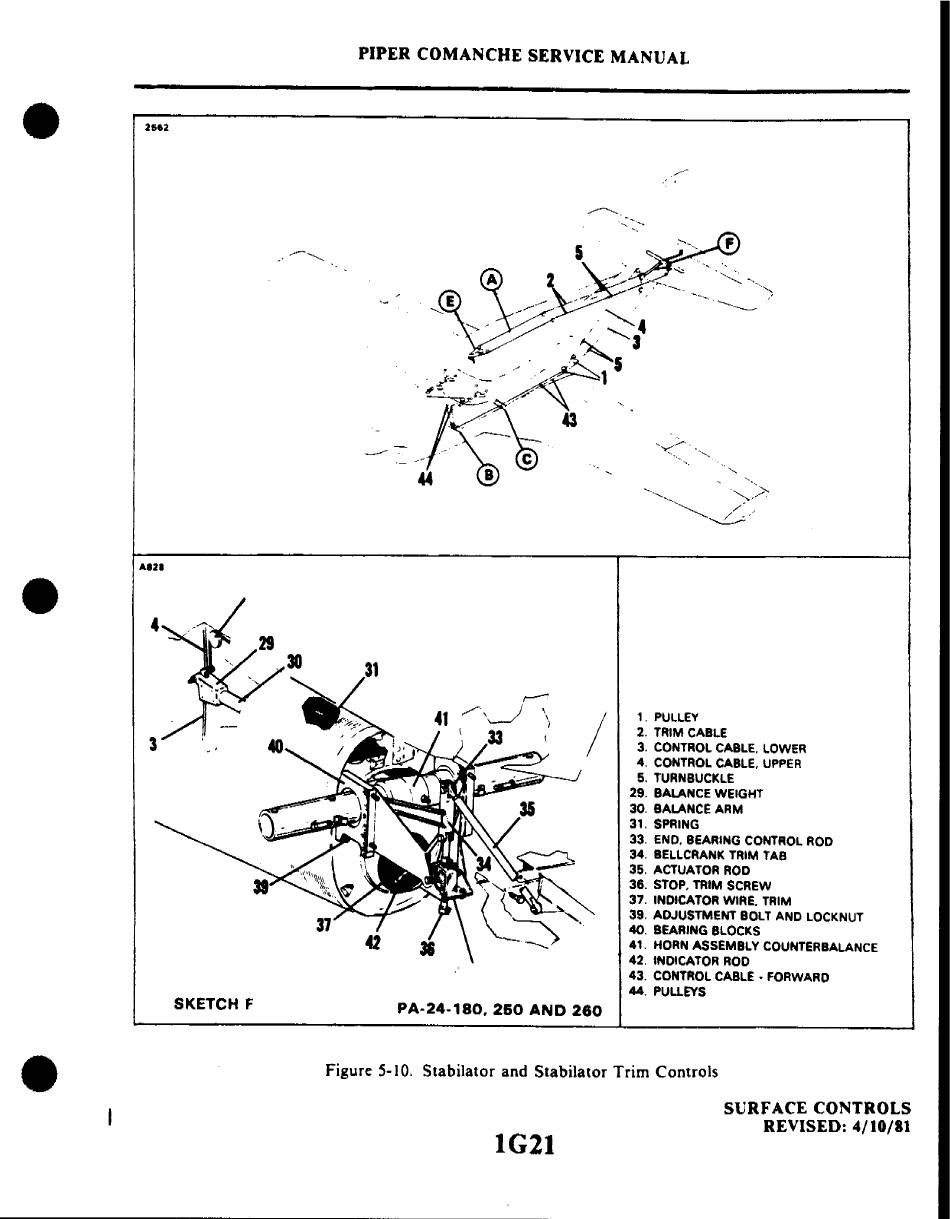

Figure 5-10. Stabilator and Stabilator Trim Controls
1. PULLEY
2. TRIM CABLE
3. CONTROL CABLE. LOWER
4. CONTROL CABLE. UPPER
5. TURNBUCKLE
29. BALANCE WEIGHT
30. BALANCE ARM
31. SPRING
33. END. BEARING CONTROL ROD
34. BELLCRANK TRIM TAB
35. ACTUATOR ROD
36. STOP, TRIM SCREW
37. INDICATOR WIRE. TRIM
39. ADJUSTMENT BOLT AND LOCKNUT
40. BEARING BLOCKS
41. HORN ASSEMBLY COUNTERBALANCE
42. INDICATOR ROD
43. CONTROL CABLE· FORWARD
44. PULLEYS
/
PA·24·180. 260 AND 260
SKETCH F
.... 2.
•
•
IG21
SURFACE CONTROLS
REVISED: 4/10/81
