PIPER COMANCHE SERVICE MANUAL

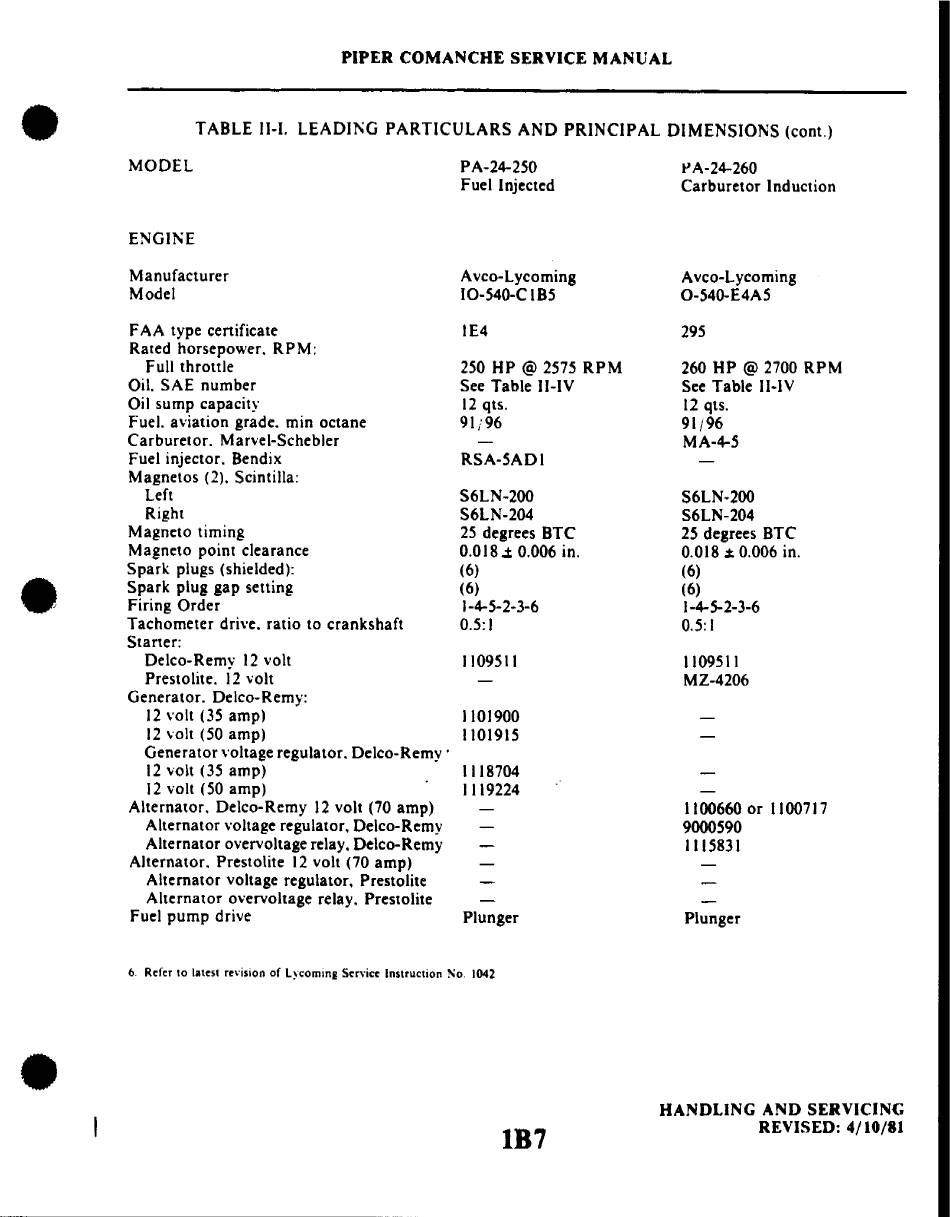

TABLE II-I. LEADI?'G PARTICULARS AND PRINCIPAL DIMENSIO?,S (cont.)
MODEL
PA-24-250
Fuel Injected
PA-24-260
Carburetor Induction
ENGI?'E
Manufacturer
Avec-Lycoming Avec-Lycoming
Model
IO-540-C IB5 0-54Q-E4A5
FAA type certificate IE4
295
Rated horsepower. RPM:
Full throttle
250 HP @ 2575 RPM 260 HP
@
2700 RPM
Oil. SAE number
See Table II-IV See Table II-IV
Oil sump capacity 12 qts.
12 qts.
Fuel. aviation grade. min octane
91;96 91;96
Carburetor. Marvel-Schebler
MA-4-5
Fuel injector. Bendix
RSA-5ADI
Magnetos (2). Scintilla:
Left
S6LN-200
S6LN-200
Right
S6LN-204 S6LN-204
Magneto timing
25 degrees BTC 25 degrees BTC
Magneto point clearance
0.018.± 0.006 in.
0.018
J:.
0.006 in.
Spark plugs (shielded): (6)
(6)
•
Spark plug gap setting (6)
(6)
Firing Order
1-4-5-2-3-6
1-4-5-2-3-6
Tachometer drive. ratio to crankshaft 0.5:1
0.5: I
Starter:
Delco-Rerny 12 volt
11095II
11095II
Presto lite. 12 volt
MZ-4206
Generator. Delco-Remy:
12 volt (35 amp)
1101900
12 volt (50 amp)
1101915
Generator voltage regulator. Delco-Remy .
12 volt (35 amp)
1118704
12 volt (50 amp)
1119224
Alternator. Delco-Rerny 12 volt (70 amp)
1100660 or 1100717
Alternator voltage regulator. Delco-Rerny
9000590
Alternator overvoltage relay. Delco-Remy
1115831
Alternator. Prestolite 12 volt (70 amp)
Alternator voltage regulator. Prestolite
Alternator overvoltage relay. Prestolite
Fuel pump drive
Plunger
Plunger
6. Refer
10
latest revision of Lycoming Service lnstruction So. 1042
•
IB7
HANDLING AND SERVICING
REVISED: 4/10/81
