Nose Landing Gear Lubrication - Piper PA-24 Comanche Service Manual

•
•
PIPER COMANCHE SERVICE MANUAL
COMPONENT
LUBRICANT
FREQUENCY
1. STEERING ROD END BEARING. STEERINGBELLCRANK
PIVOT BEARING. STEERING ARM BUSHING. GEAR
ALIGNING BUSHING
MIL·L·7870 100 HRS
2. DRAG LINK PIVOT
MlI·G·23827
100 HRS
3. NOSE GEAR DOOR HINGE. DOOR ACTUATING
MECHANISM. NOSE GEAR PUSH· PULL ROD END
BEARINGS
MIL·L·7870
100 HRS
4 SHIMMY DAMPENER ROD END BEARING AND MOUNT
MIL·L-7870
100 HRS
5 UPPER AND LOWER TORQUE LINK CONNECTING BOLT MIL-L-7870 100 HRS
6. WHEEL BEARINGS (2)'
MIL-G-3545
100 HRS
7
UPPER AND LOWER TORQUE LINK BUSHINGS
MIL-G-23827
100 HRS
B STRUT HOUSING ATTACHMENT BUSHINGS MIL-G-23827 100 HRS
9
GEAR OLEO STRUT FILLER
(3'"
MIL-H-S606
AS REQUIRED
'REFER TO SPECIAL INSTRUCTION ON TABLE II-VIII
31. .
•

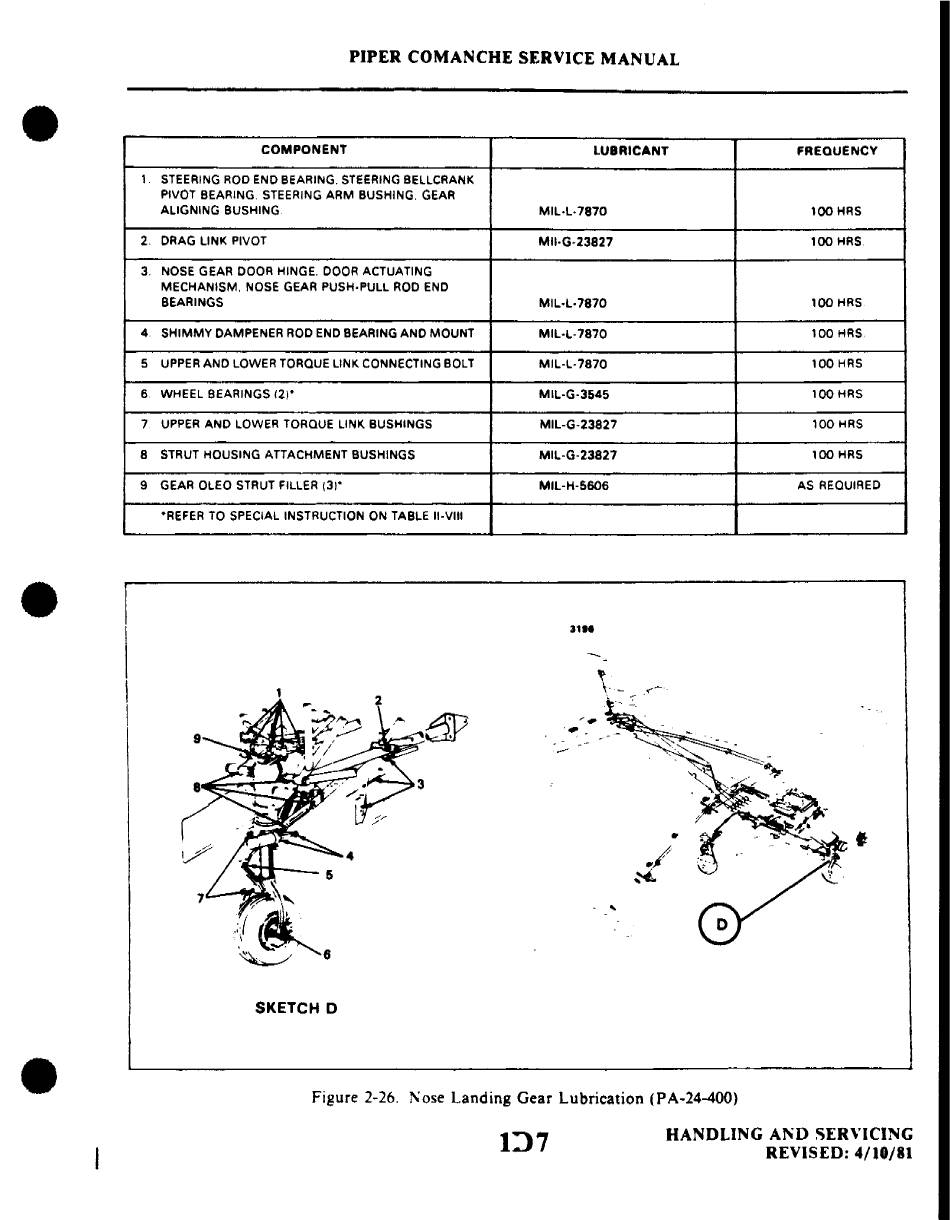

SKETCH 0
Figure
2~26.
Nose Landing Gear Lubrication (PA·24-400)
1:l7
HANDLING AND SER"ICING
REVISED: 4/10/81
