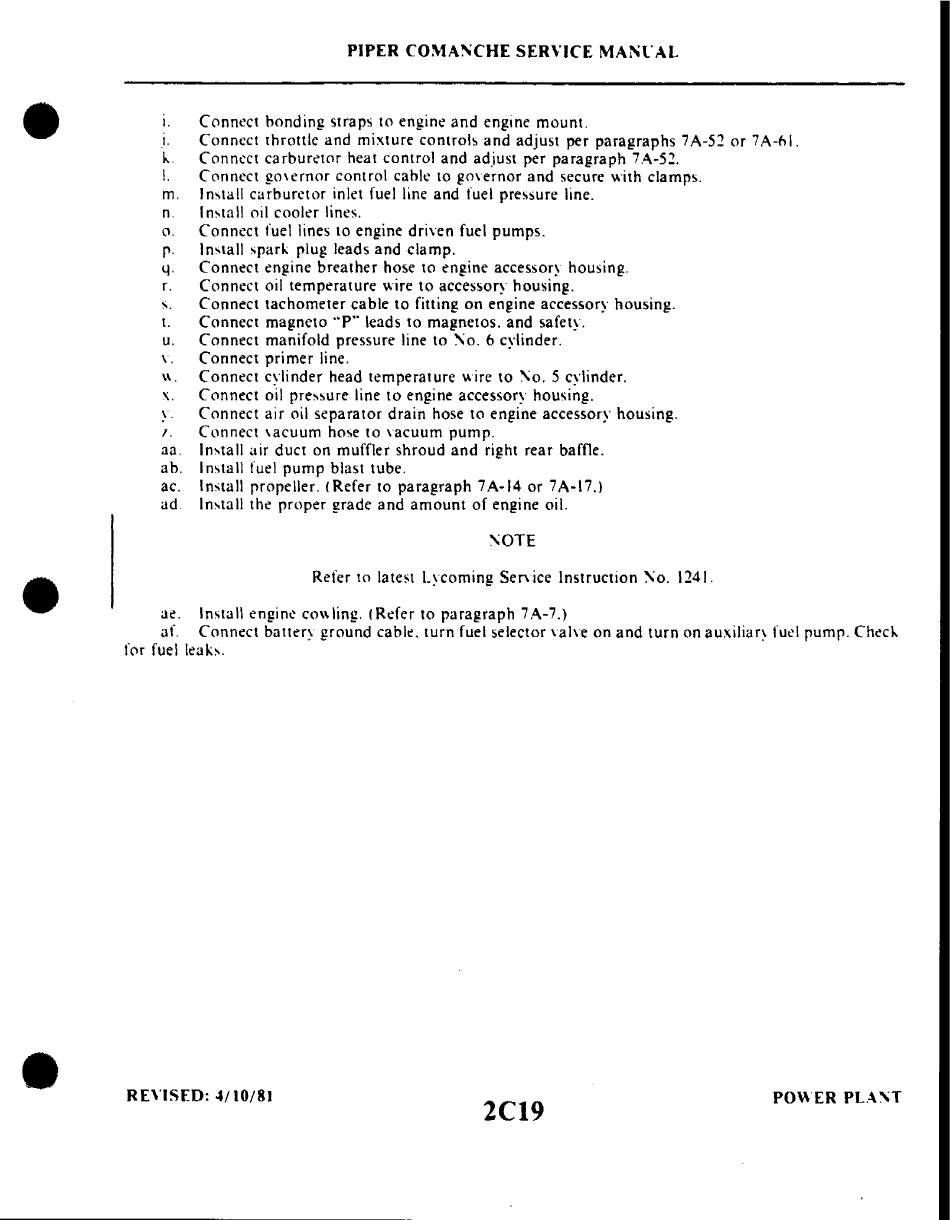

Piper PA-24 Comanche Service Manual page 351

ue. Install engine cowling. (Refer to paragraph 7A-7.)
af. Connect battery ground cable. turn fuel selector valve on and turn on auxiliary fU1C' 1 pump. Check
for fuel leaks.
•
l.
l.
\..,
I.
m.
n,
o.
r·
4·
r.
~.
t.
U.
\.
\\.
\.
\
.
I.
aa.
ah.
ac.
ad
•
PIPER
COMA~CHE
SERVICE MAl'4l'
AL
Connect bonding straps
to
engine and engine mount.
Connect throttle and mixture controls and adjust per paragraphs 7A-51 or 7A-tll.
Connect carburetor heat control and adjust per paragraph 7A-51.
Connect governor control cable
to
governor and secure with clamps.
lnstall carburetor inlet fuel line and fuel pressure line.
Install oil cooler lines.
Connect fuel lines to engine driven fuel pumps.
Install spark plug leads and clamp.
Connect engine breather hose to engine accessory housing.
Connect oil temperature wire to accessory housing.
Connect tachometer cable to fitting on engine accessory housing.
Connect magneto "P' leads to magnetos. and safety.
Connect manifold pressure line to
'0.
6
cylinder.
Connect primer line.
Connect cylinder head temperature wire to
'0.
5 cylinder.
Connect oil pressure line to engine accessory housing.
Connect air oil separator drain hose to engine accessory housing.
Connect vacuum hose to vacuum pump.
Install air duct on muffler shroud and right rear baffle.
Install fuel pump blast tube.
Install propeller, (Refer to paragraph 7A-14 or 7A-17.)
Install the proper grade and amount of engine oil.
'OTE
Refer to latest Lycoming Service Instruction
'0.
1241.
•
REVISED: 4/10/81
2C19
POWER PL\'T
