PIPER COMANCHE SERVICE MANUAL
3
•
11
/
5

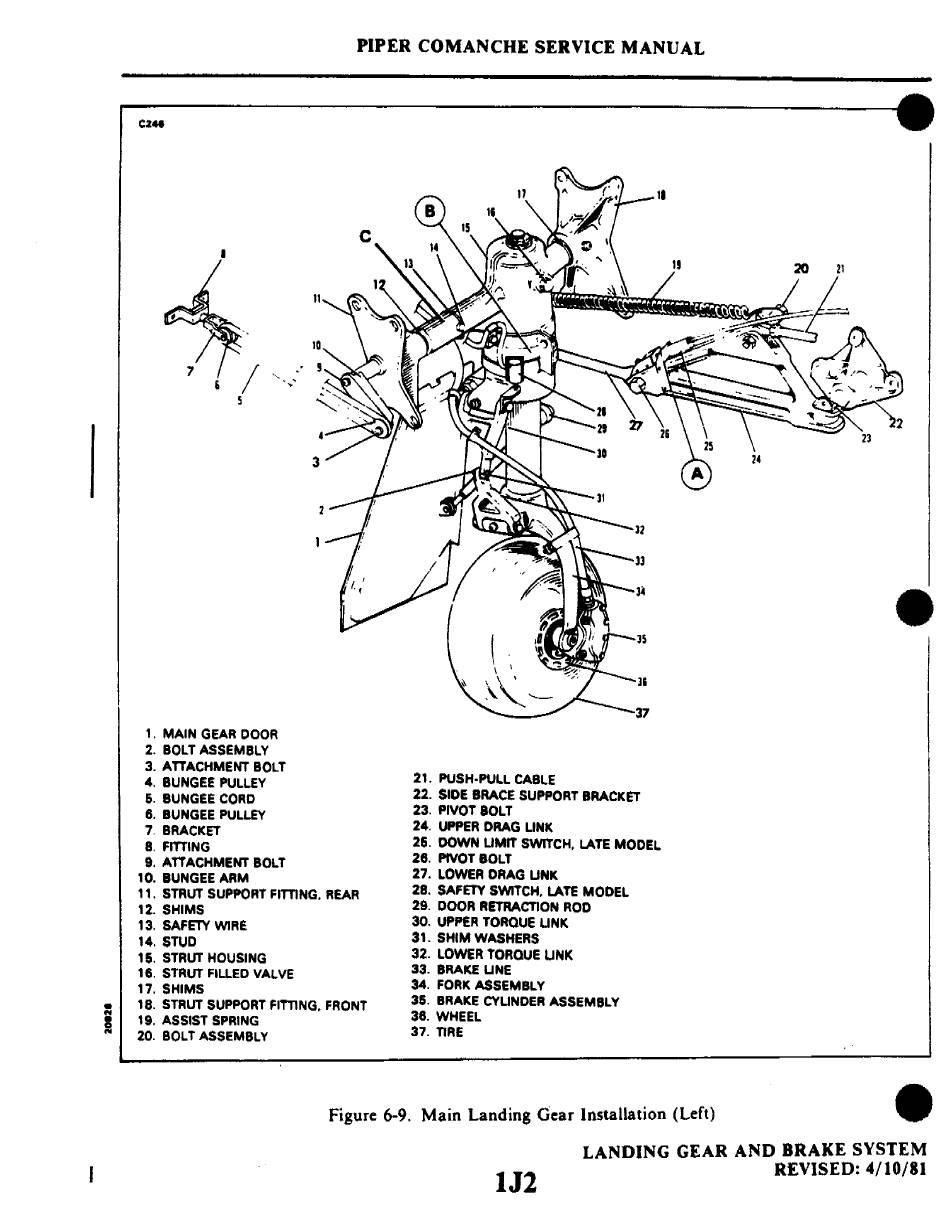

Figure 6-9. Main Landing Gear Installation (Left)
•
. .
!
1. MAIN GEAR DOOR
2. BOLTASSEMBLY
3. ATTACHMENT BOLT
4. BUNGEe PULLEY
5. BUNGEE CORD
6. BUNGEE PULLEY
7. BRACKET
8. FmlNG
9. ATTACHMENT BOLT
10. BUNGEE ARM
11. STRUT SUPPORT FITTING, REAR
12. SHIMS
13. SAFETY WIRE
14. STUD
15. STRUT HOUSING
16. STRUT FILLED VALVE
17. SHIMS
18. STRUT SUPPORT FITTING, FRONT
19. ASSIST SPRING
20. BOLTASSEMBLY
21. PUSH-PULL CABLE
22. SIDE BRACE SUPPORT BRACKET
23.
PIVOTBOLT
24. UPPER DRAG UNK
26.
DOWN UMIT SWITCH, LATEMODEL
26.
PIVOT BOLT
27. LOWER DRAG UNK
28.
SAFETY SWITCH.
LATE
MODEL
29. DOOR RETRACTION ROO
30.
UPPER TORQUE UNK
31. SHIM WASHERS
32.
LOWER TORQUE UNK
33. BRAKE UNE
34. FORK ASSEMBLY
35. BRAKE CYUNDER ASSEMBLY
36. WHEEL
37. TIRE
•
IJ2
LANDING GEAR AND BRAKE SYSTEM
REVISED: 4/10/81
