Rudder And Rudder Trim Control View - Piper PA-24 Comanche Service Manual

PIPER COMANCHE SERVICE MANUAL
1. RUDDER CABLE
2 PULLEY
3. CONTROL KNOB
4. TUBE
5. SUPPORT BLOCK
6. BRACKET
7. UNIVERSAL JOINT
8. COVER
9. PLACARD
10. NOSE GEAR STEERING ARM
11. ACTUATOR SCREW. TRIM BUNGEE
12.
TUBE. TRIM BUNGEE
13. CLIP
14. SAFETY WIRE
15 SPRING
16. CONTROL ROD
17. LOCKNUT
18 END BEARING
20 FITTING. SWAGGED BALL
21. TURNBUCKLES
._
.
.,.....-
.
9
3
7
5
•
SKETCH A
1711
SKETCH B

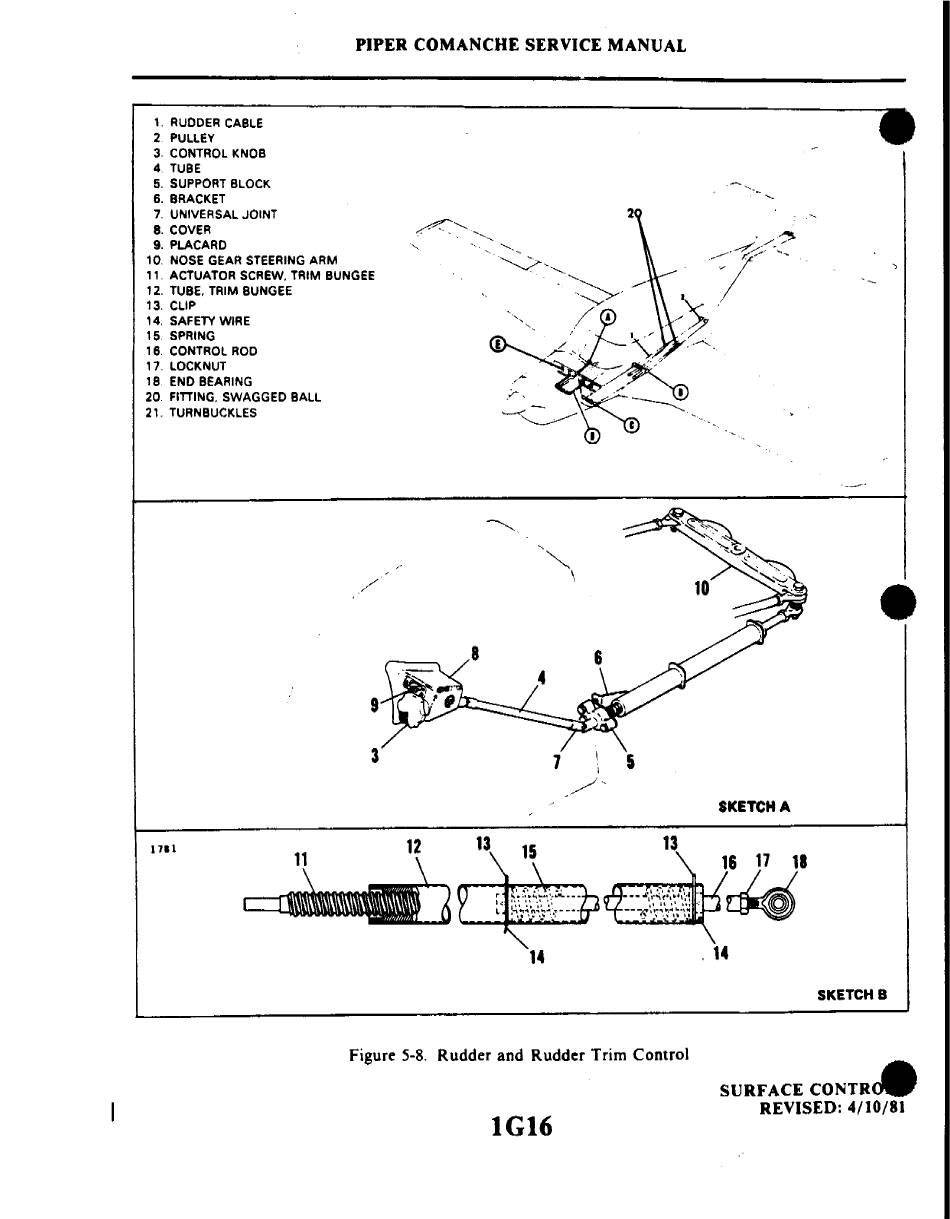

Figure 5-8. Rudder and Rudder Trim Control
IG16
SURFACE CONTR.
REVISED: 4/10/81
