ECDIS User Guide Basic Operation of ECDIS

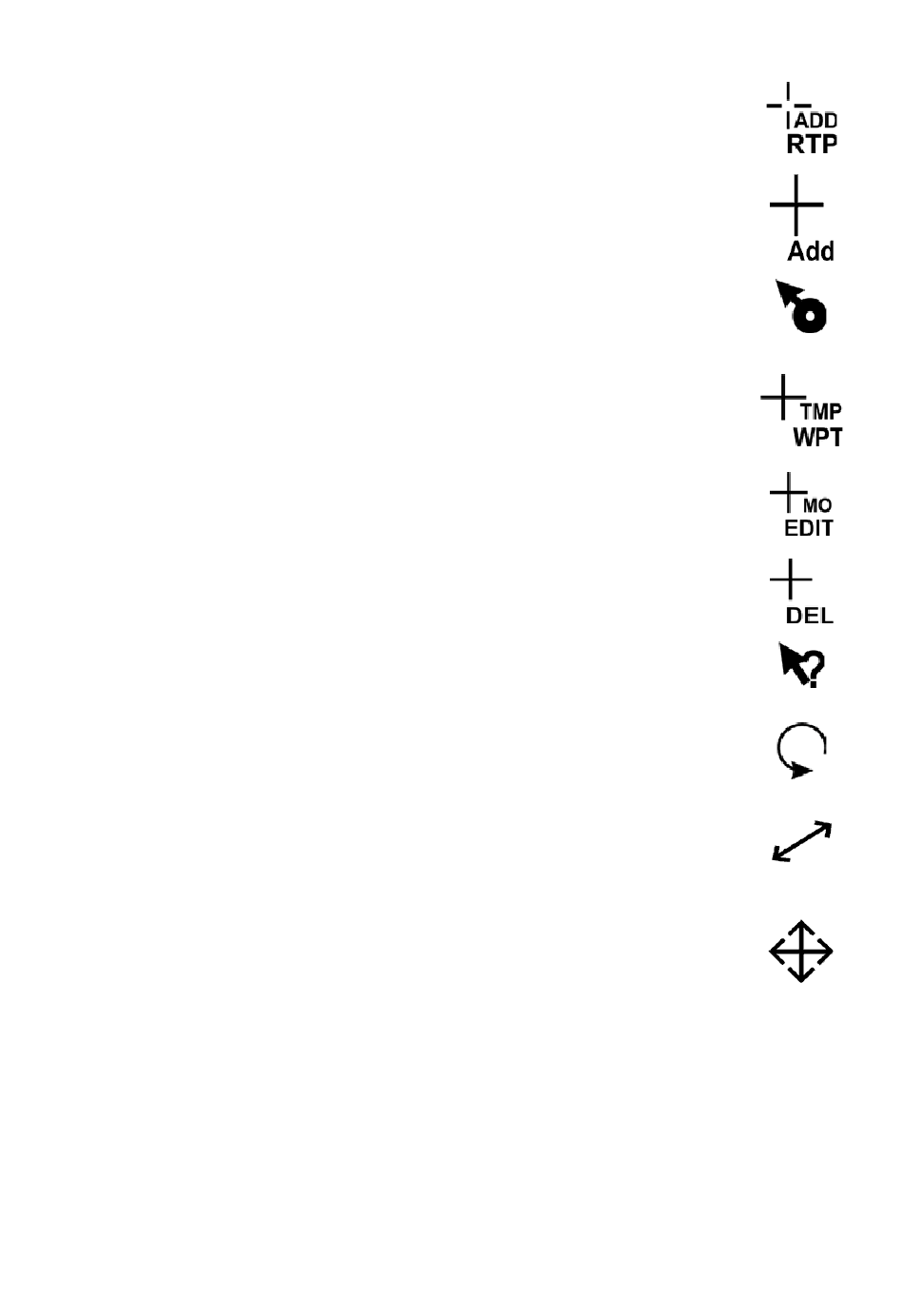

When a waypoint is to be added to a route plan, the letters
ADD RTP appear below the cursor see Routes.
When a Polygonal activation zone is created, the letters
Add appear below the cursor, see Activation Zones.
When a map offset is to be applied graphically, the cursor
changes to the following symbol.
When a Temporary Route is created or edited, the letters
TMP WPT appear below the cursor, see Temporary
Routes.
When a mapping object is created or edited, the letters MO
EDIT appear below the cursor.
When the cursor moves over an object to be deleted the
letters DEL appear below the cursor.
When the iHelp button is selected and the cursor moves
over screen functions it changes to the following symbol.
When the cursor moves over an Electronic Bearing Line
(EBL) or Parallel Index line it changes to the following
symbol.
When the range of a Variable Range Marker (VRM) or
Parallel Index line is adjusted the cursor changes to the
following symbol.
When the video cursor moves over an Electronic Range
and Bearing Line (ERBL), or Distance Line, it changes to
the following symbol.
