Chart Legend

The Chart Legend sub menu enables you to view
read only information on every chart currently
visible on the screen.

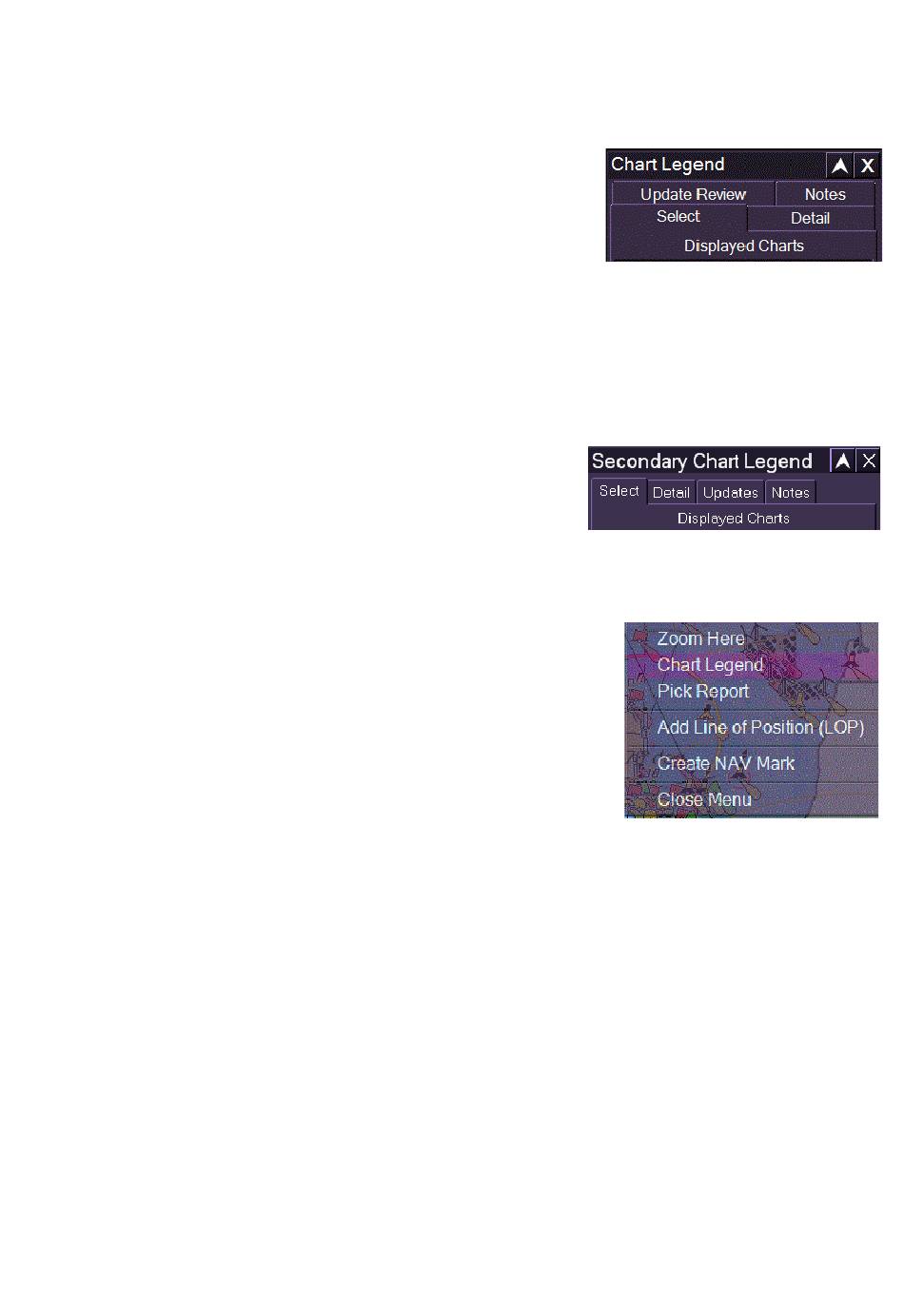

The Chart Legend window is divided into four tab
folders:
•
Select
•
Detail
•
Update Review
•
Notes
In addition to the main Chart Legend menu, a
further Secondary Chart Legend menu is also
available. This is available when using split
screen display or picture in picture display.

Chart Information at a Specific Point

The user can access chart legend information at a
specific point on the display by right clicking and
selecting Chart Legend from the subsequent
context menu.
When Chart Legend is accessed from the context
menu the Chart Legend Select folder opens
displaying the Latitude/Longitude position of the
selection and the specific chart at that selected
point under the currently loaded chart engine.
