Sperry Marine Visionmaster FT ECDIS User Manual page 512

System

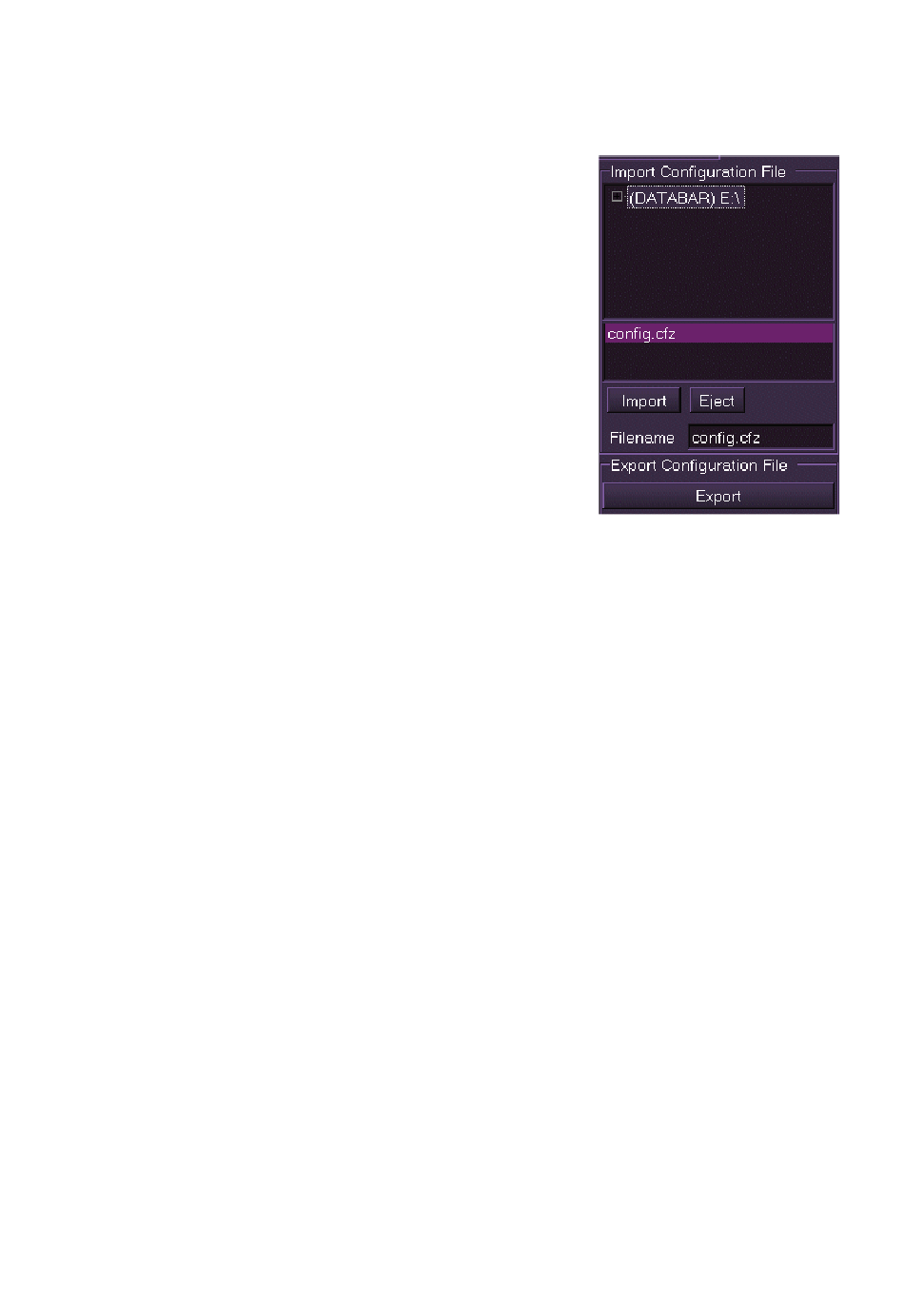

Importing a Configuration
To import a configuration, do the following:
1. Connect a USB memory stick to a USB
port at the front of the VisionMaster PC.
The device name appears in the Import
Configuration File field.
2. Select the device. Any compressed
configuration file that has been copied to
the device will be displayed in the field
below, i.e. config.cfz.
3. Highlight the file. The file will be shown in
the Filename field.
4. Click the Import button. The system
proceeds to import the configuration file
to all nodes on the system. While the
import process is taking place Import, Export and Eject are
disabled and the Import button changes to Wait.. Note that the
import process may take a long period of time.
5. When the import is complete a temporary prompt appears
confirming that the file has been copied to all nodes on the system
and the Import, Export and Eject buttons are re-enabled.
6. Click the Eject button and remove the memory stick from the
VisionMaster PC.
Applying the Config Update
When a modified configuration has been imported, all the nodes on the
system will require a re-start in order to apply the modified configuration,
see Shutdown.
Note that if an exception is raised during start-up after importing a modified
configuration, the system will automatically revert to the previous
configuration at the next re-start.
13-28
ECDIS User Guide
65900012
