Chapter 4 Charts

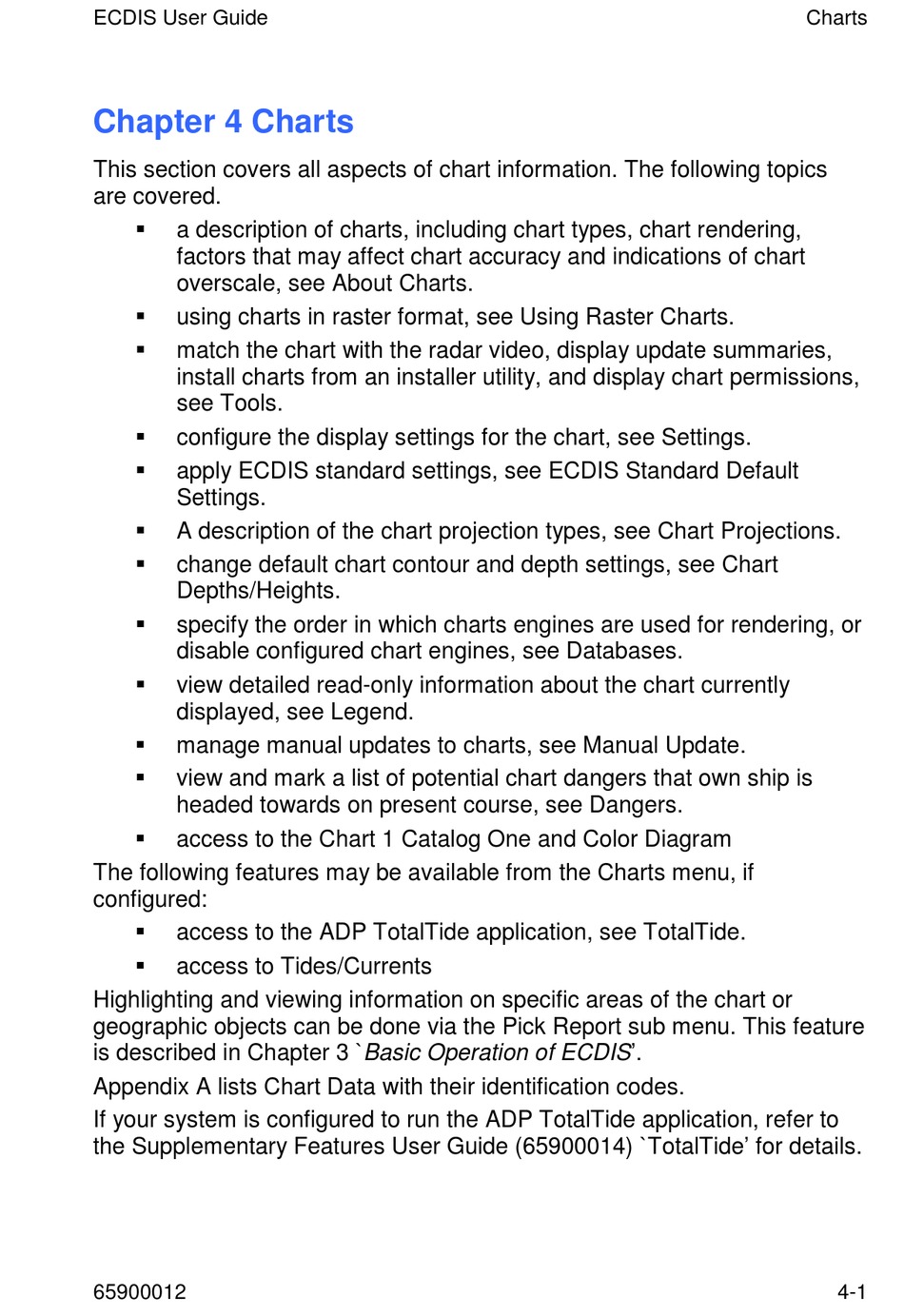

This section covers all aspects of chart information. The following topics
are covered.

a description of charts, including chart types, chart rendering,
factors that may affect chart accuracy and indications of chart
overscale, see About Charts.

using charts in raster format, see Using Raster Charts.

match the chart with the radar video, display update summaries,
install charts from an installer utility, and display chart permissions,
see Tools.

configure the display settings for the chart, see Settings.

apply ECDIS standard settings, see ECDIS Standard Default
Settings.

A description of the chart projection types, see Chart Projections.

change default chart contour and depth settings, see Chart
Depths/Heights.

specify the order in which charts engines are used for rendering, or
disable configured chart engines, see Databases.

view detailed read-only information about the chart currently
displayed, see Legend.

manage manual updates to charts, see Manual Update.

view and mark a list of potential chart dangers that own ship is
headed towards on present course, see Dangers.

access to the Chart 1 Catalog One and Color Diagram
The following features may be available from the Charts menu, if
configured:

access to the ADP TotalTide application, see TotalTide.

access to Tides/Currents
Highlighting and viewing information on specific areas of the chart or
geographic objects can be done via the Pick Report sub menu. This feature
is described in Chapter 3 `Basic Operation of ECDIS'.
Appendix A lists Chart Data with their identification codes.
If your system is configured to run the ADP TotalTide application, refer to
the Supplementary Features User Guide (65900014) `TotalTide' for details.
