Fixed Test Targets

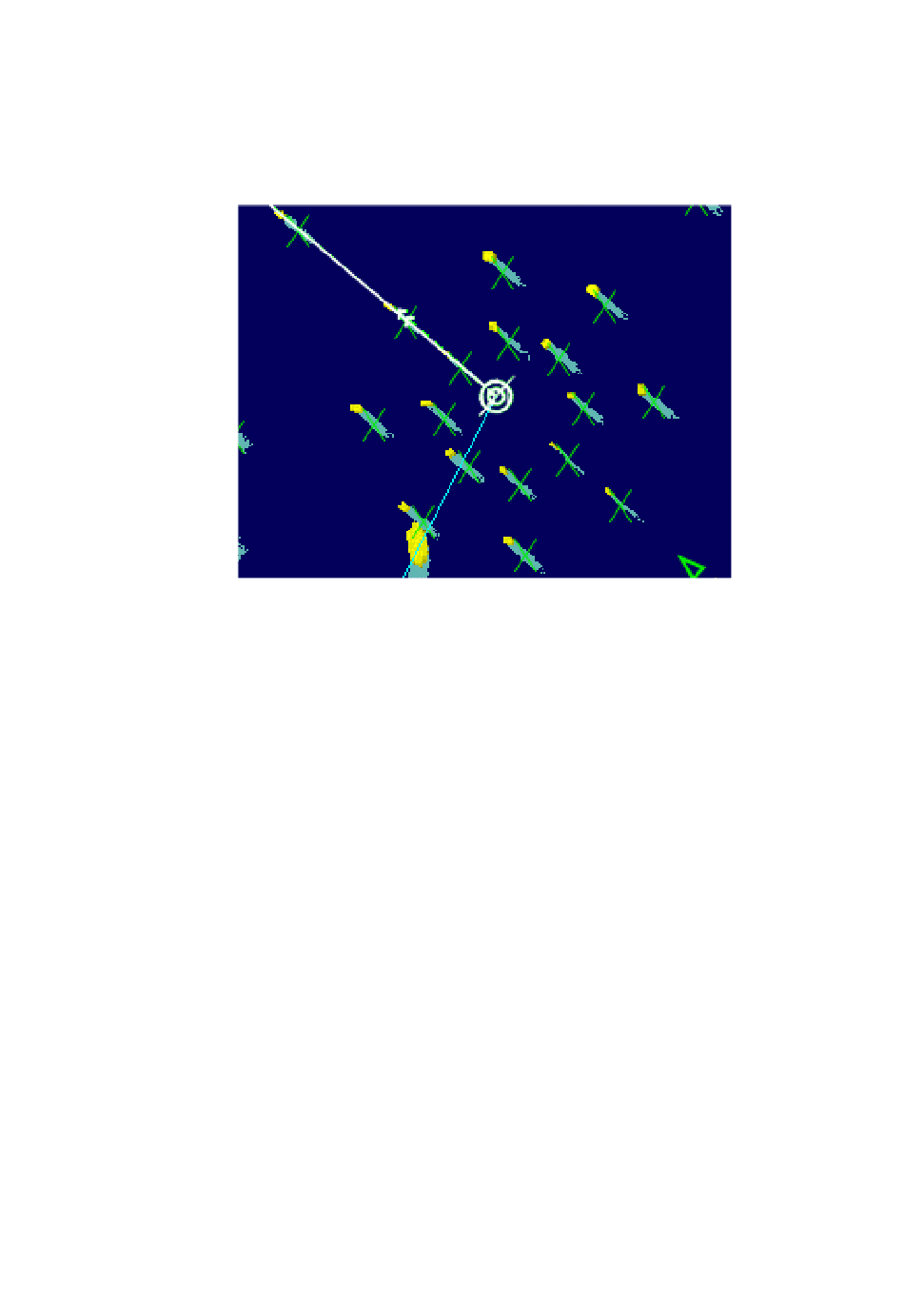

The Fixed Test Targets area includes a Display check box. When this
check box is ticked, test targets, which are stationary relative to own ship,
are displayed on the chart display. See below.
The targets are generated every 45 degrees starting at 0 degrees relative
to own ship's heading and increasing in 2 NM increments to 40 NM. The
targets are a fixed size in both azimuth and range.
