ECDIS User Guide Targets

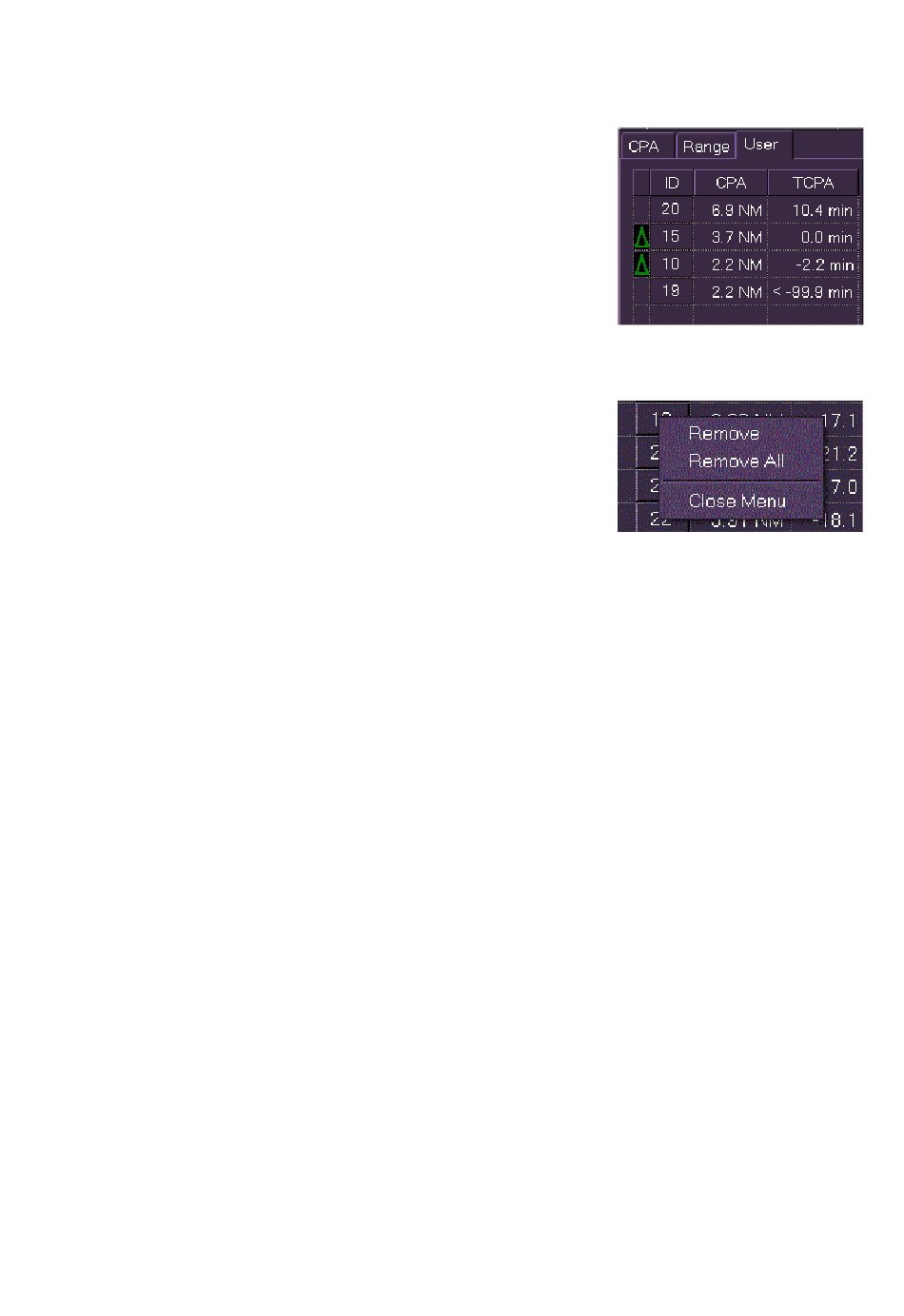

Selecting Targets for the User Folder

Any target manually selected from the chart
display. For a target to be displayed in the User
Folder it should only be selected whilst this
folder is present. The list will include targets
which are not established, in which case the
CPA and TCPA information displayed for the
target is shown as dashed until a vector is
established.
Targets are automatically removed from the list if they are dropped or
cancelled by the operator.
To remove a target from the User list right click
on the target ID and select Remove from the
window fly out. To remove all targets from the
User folder select Remove All from the fly out.

Viewing Target Data from Multiple Targets

Any target in the multiple targets menu can be selected for display in the
target data window.
To select a target click on the target ID (from any of the three tab folders),
the Target Data folder from the Selected Target sub-menu is displayed with
the target's information.
65900012 10-23
