Basic Operation of ECDIS

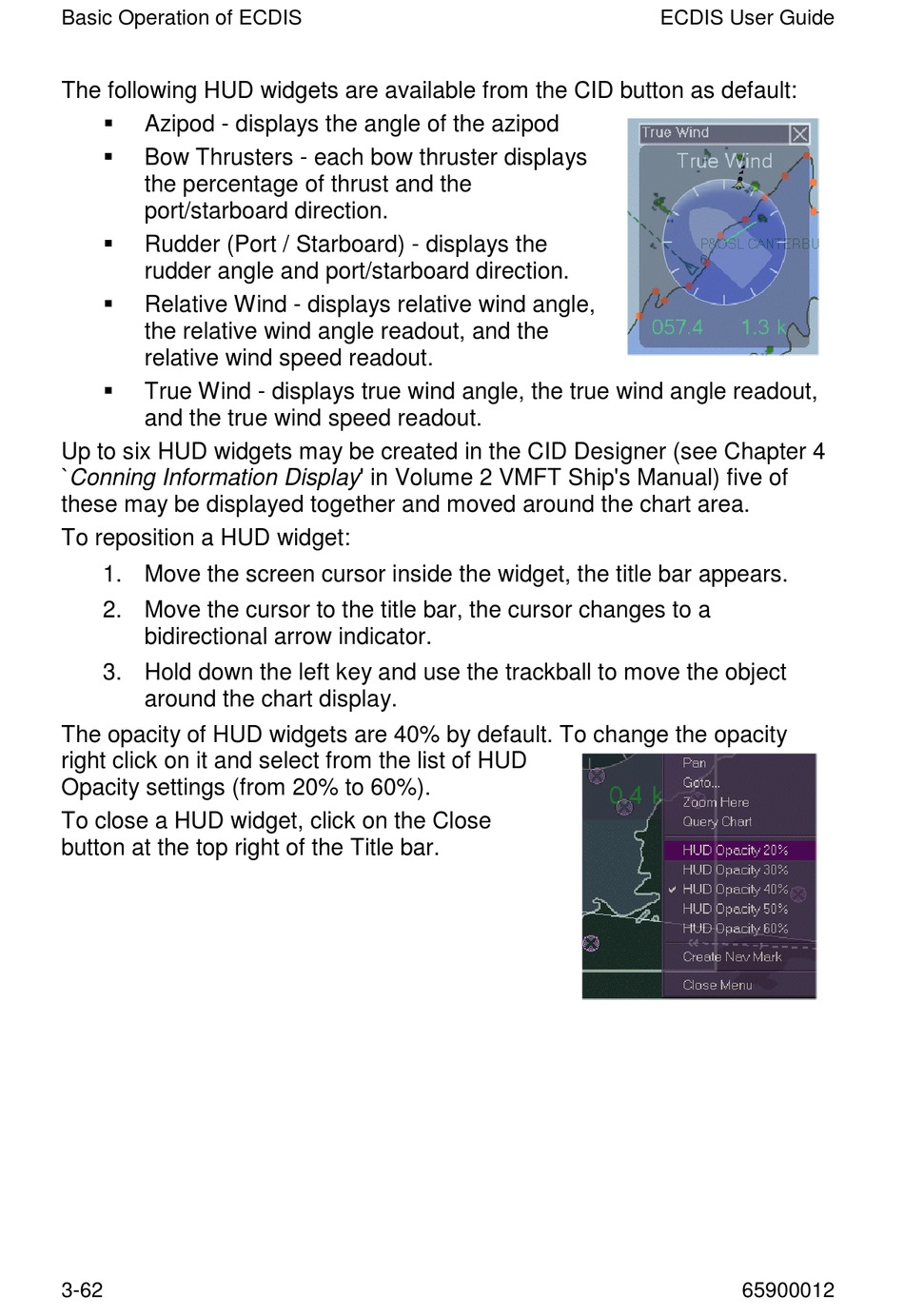

The following HUD widgets are available from the CID button as default:

Azipod - displays the angle of the azipod

Bow Thrusters - each bow thruster displays
the percentage of thrust and the
port/starboard direction.

Rudder (Port / Starboard) - displays the
rudder angle and port/starboard direction.

Relative Wind - displays relative wind angle,
the relative wind angle readout, and the
relative wind speed readout.

True Wind - displays true wind angle, the true wind angle readout,
and the true wind speed readout.
Up to six HUD widgets may be created in the CID Designer (see Chapter 4
`Conning Information Display' in Volume 2 VMFT Ship's Manual) five of
these may be displayed together and moved around the chart area.
To reposition a HUD widget:
1. Move the screen cursor inside the widget, the title bar appears.
2. Move the cursor to the title bar, the cursor changes to a
bidirectional arrow indicator.
3. Hold down the left key and use the trackball to move the object
around the chart display.
The opacity of HUD widgets are 40% by default. To change the opacity
right click on it and select from the list of HUD
Opacity settings (from 20% to 60%).
To close a HUD widget, click on the Close
button at the top right of the Title bar.
