Dual Radar – Interswitched System
On an interswitched system a display radar channel can be associated
with any one of the scanner units in the system. A scanner unit can be
selected from its associated display as a Master radar channel for
controlling that scanner, or as a Slave radar channel if another display
radar channel has been selected as the Master.
The Master/Slave status of all display radar channels, and their specific
scanner couplings, can be monitored from any display unit in the system.

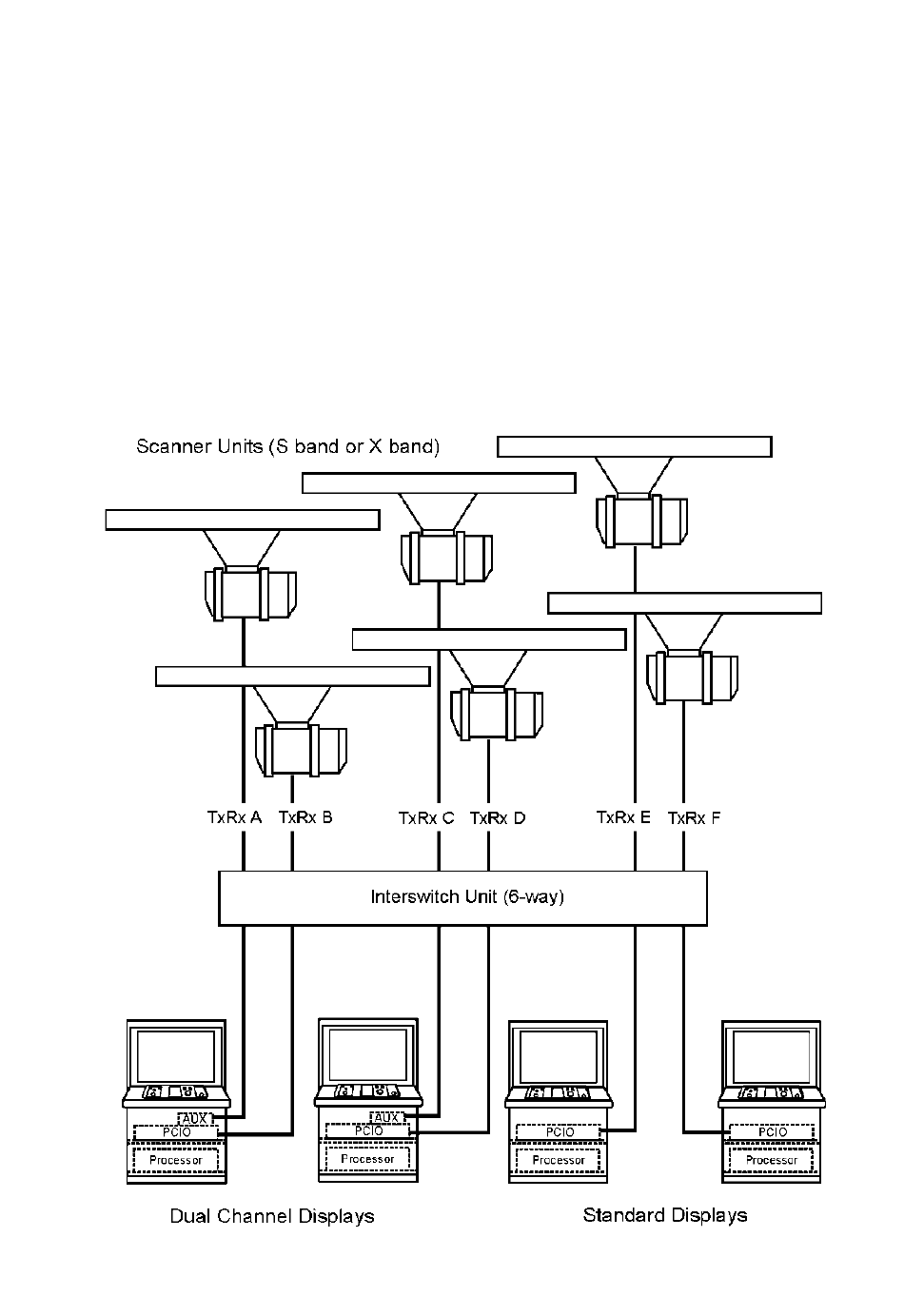

The figure below shows two dual channel displays with two standard
displays, connected to a 6-Way Interswitch unit.
