Routes
ECDIS User Guide
When a SAR pattern is saved the system creates a route. This route can
then be opened for monitoring and editing in the same way as other routes,
see Monitor Route and Edit Route.

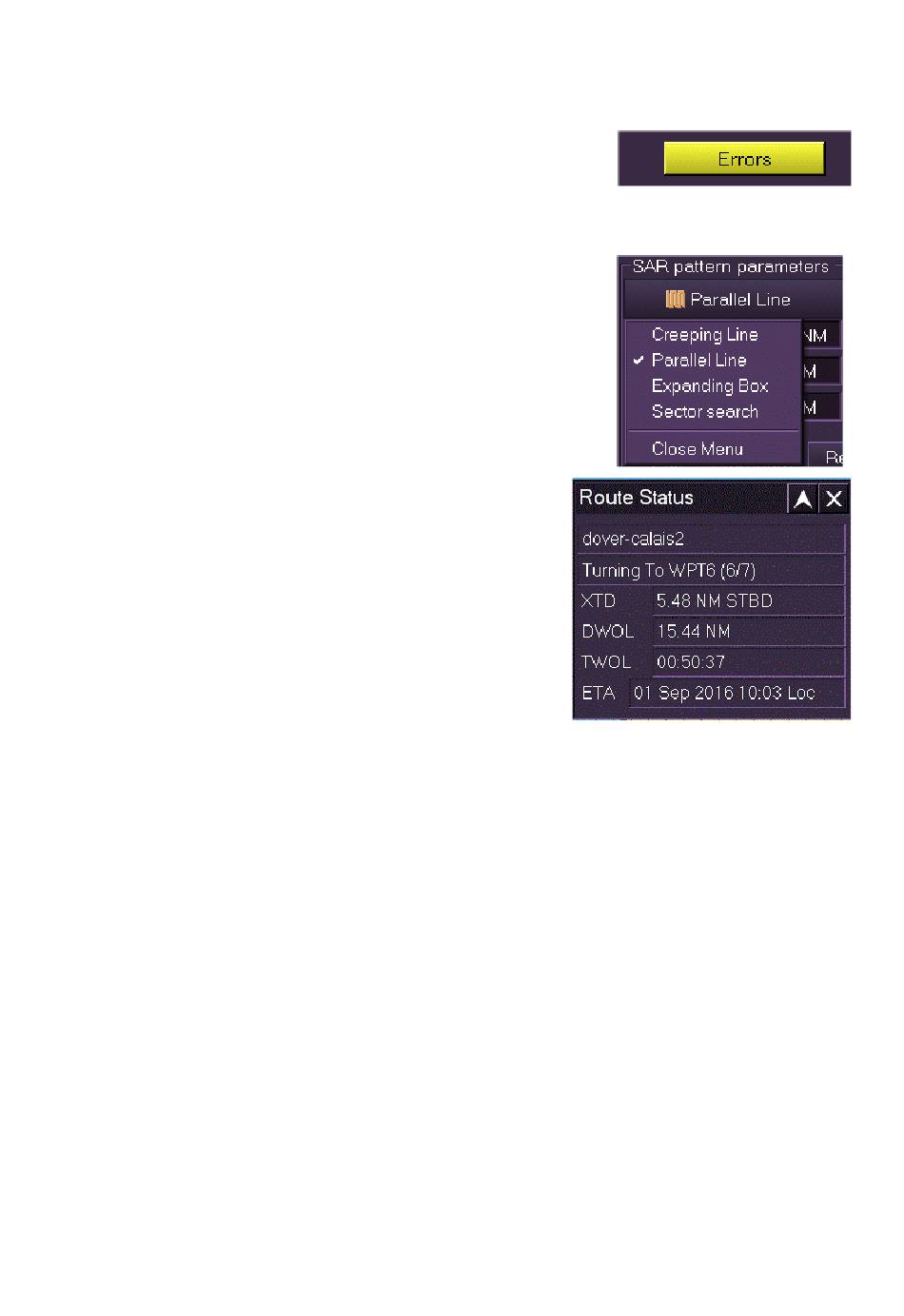

The route will also generate errors and warnings. If
a SAR pattern route generates validation errors the No Errors button
changes to Errors with a yellow background. Validation errors are rectified
in the same way as described in Edit Route –
Route Tab.
To clear a SAR pattern from the display click the
Clear button. Any edits that have been made to the
pattern will remain on the SAR window.
To display an edited SAR pattern that has been
cleared either close and re-open the SAR window;
or right click on the SAR pattern button, select
another pattern and then re-select the edited
pattern.
8-56
65900012
