Charts

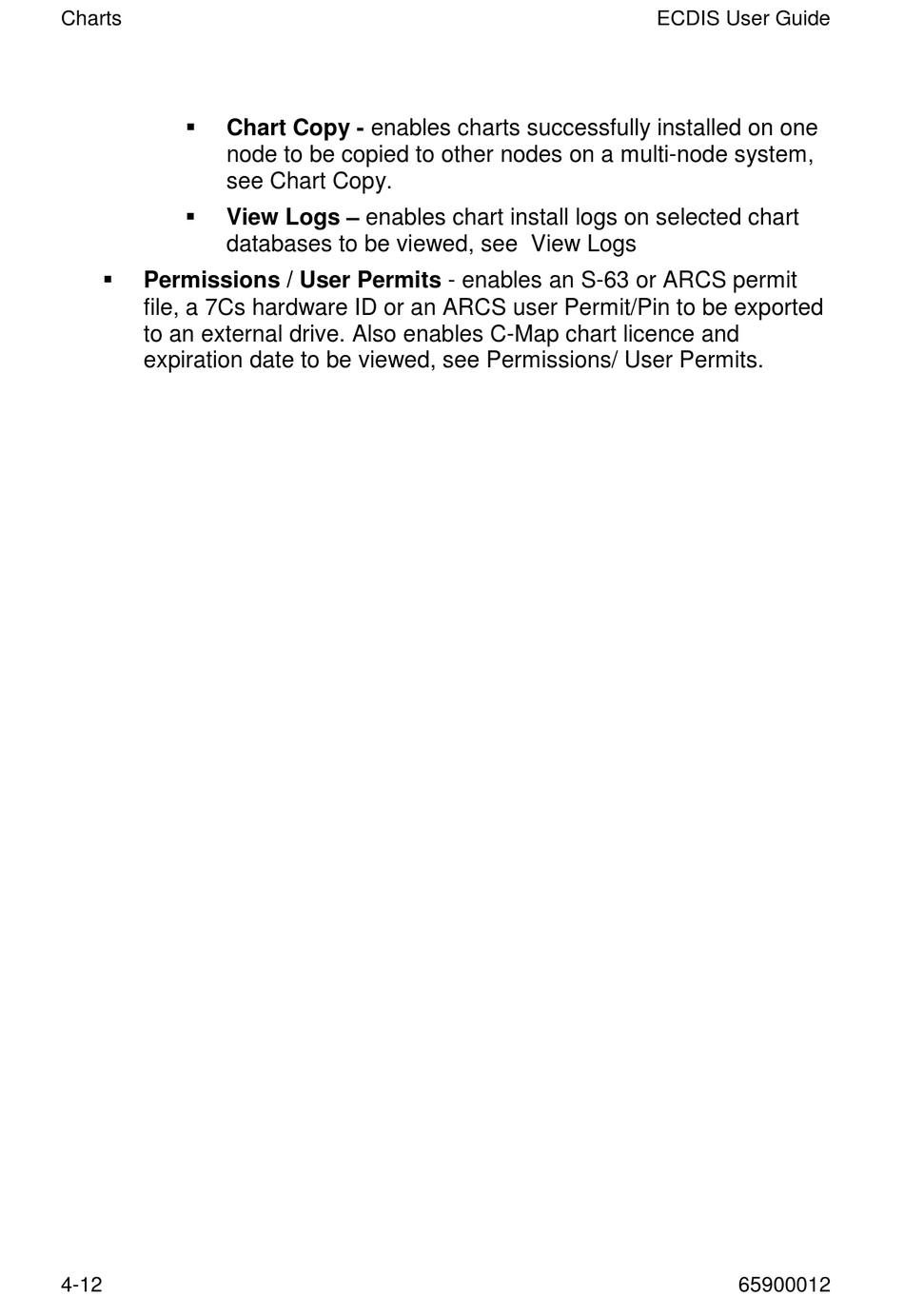

Chart Copy - enables charts successfully installed on one
node to be copied to other nodes on a multi-node system,
see Chart Copy.
View Logs – enables chart install logs on selected chart
databases to be viewed, see View Logs
Permissions / User Permits - enables an S-63 or ARCS permit
file, a 7Cs hardware ID or an ARCS user Permit/Pin to be exported
to an external drive. Also enables C-Map chart licence and
expiration date to be viewed, see Permissions/ User Permits.
4-12
ECDIS User Guide
65900012
