Chart 1; Chart 1 Catalog - Sperry Marine Visionmaster FT ECDIS User Manual

Charts

Chart 1

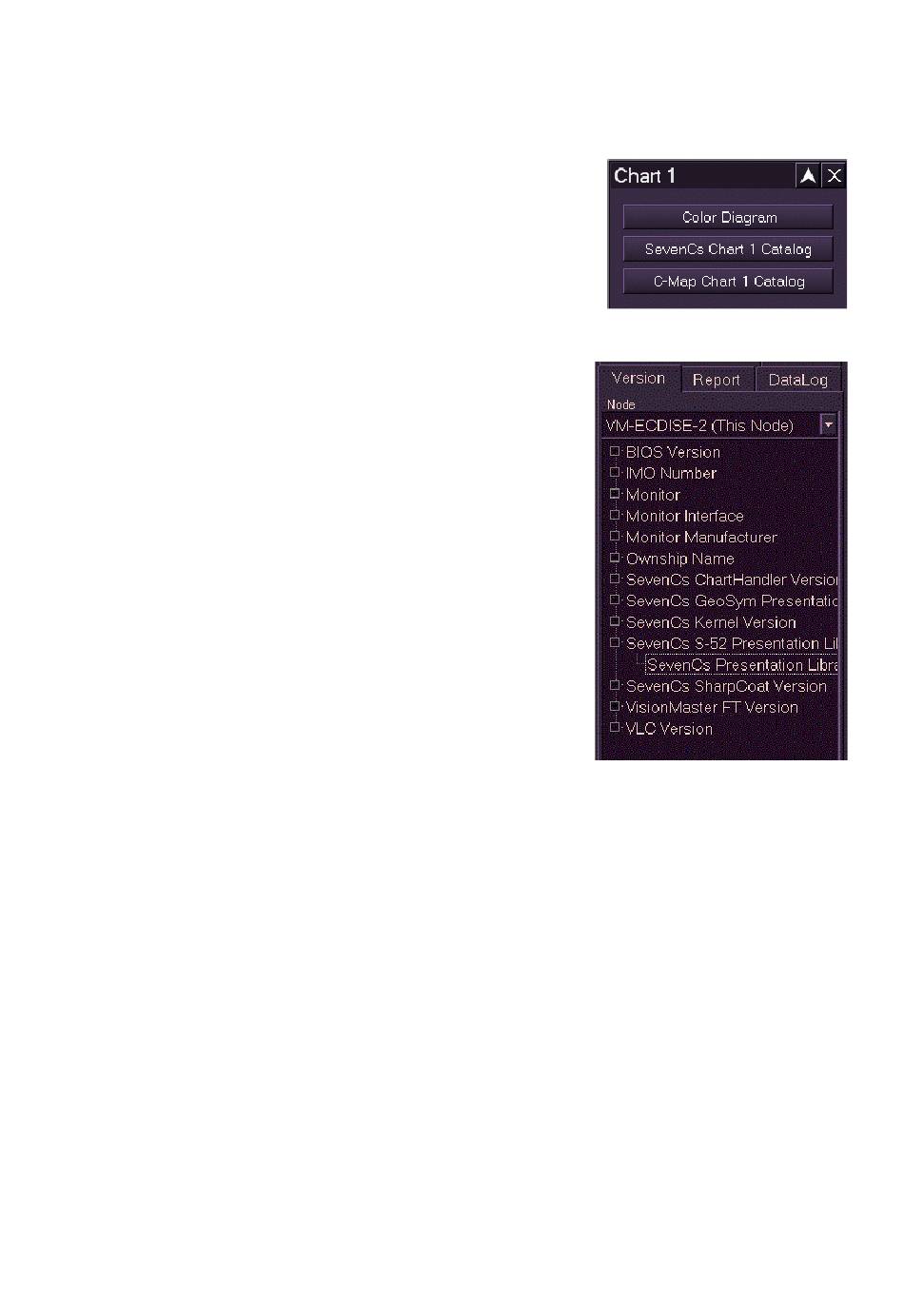

The Chart 1 facility provides access to the SevenCs and C-Map Chart 1
catalog and the SENC color diagram.

Chart 1 Catalog

This feature provides a Chart 1 symbol catalog for
SevenCs and C-Map Presentation Libraries.
The catalog acts as a legend so the mariner can
look up specific information, such as names and descriptions, about
symbols on the chart.
Information on C-Map or SevenCs S-52
Presentation Library editions can be found in the
Version tab folder of System Diagnostics.
Information on the Diagnostics Version tab folder
is detailed in Chapter 2 `Diagnostics,
Commissioning & Service Mode in Volume 2 of
the VMFT Ship's Manual (65900011V2).
In order to improve usability of the ENC the
presentation of the "SevenCs Chart 1 Catalog"
has some minor deviations from the S-52
Presentation Library edition 4.0 which have been
fully type approved as an acceptable alternative
ENC presentation.
To access the Chart 1 catalog, do the following:
1. Click on either the SevenCs Chart 1 Catalog button or C-Map
Chart 1 Catalog button. The Chart 1 Catalog appears as a
moveable window, which can be resized to occupy as much of the
screen as required.
2. The catalog is alphabetically divided into symbol categories. To
access the categories click on the arrow to the right of the Chart 1
Category field and select from the drop down list.
3. To view information on a particular symbol click on the chart
symbol. Information for that symbol appears in the Symbol
Information field.
