Static Position - Sperry Marine Visionmaster FT ECDIS User Manual

Annex A – Static Site

Static Position

At start up, the static position
Latitude/Longitude (L/L) values default to 00°
North and 000° East. As a Static Site may
operate without position input, the position
value is always displayed as green (valid).
A position value may be entered manually, or
automatically connect to a GPS sensor, if
available, to obtain an initial position.
To enter a position bearing:

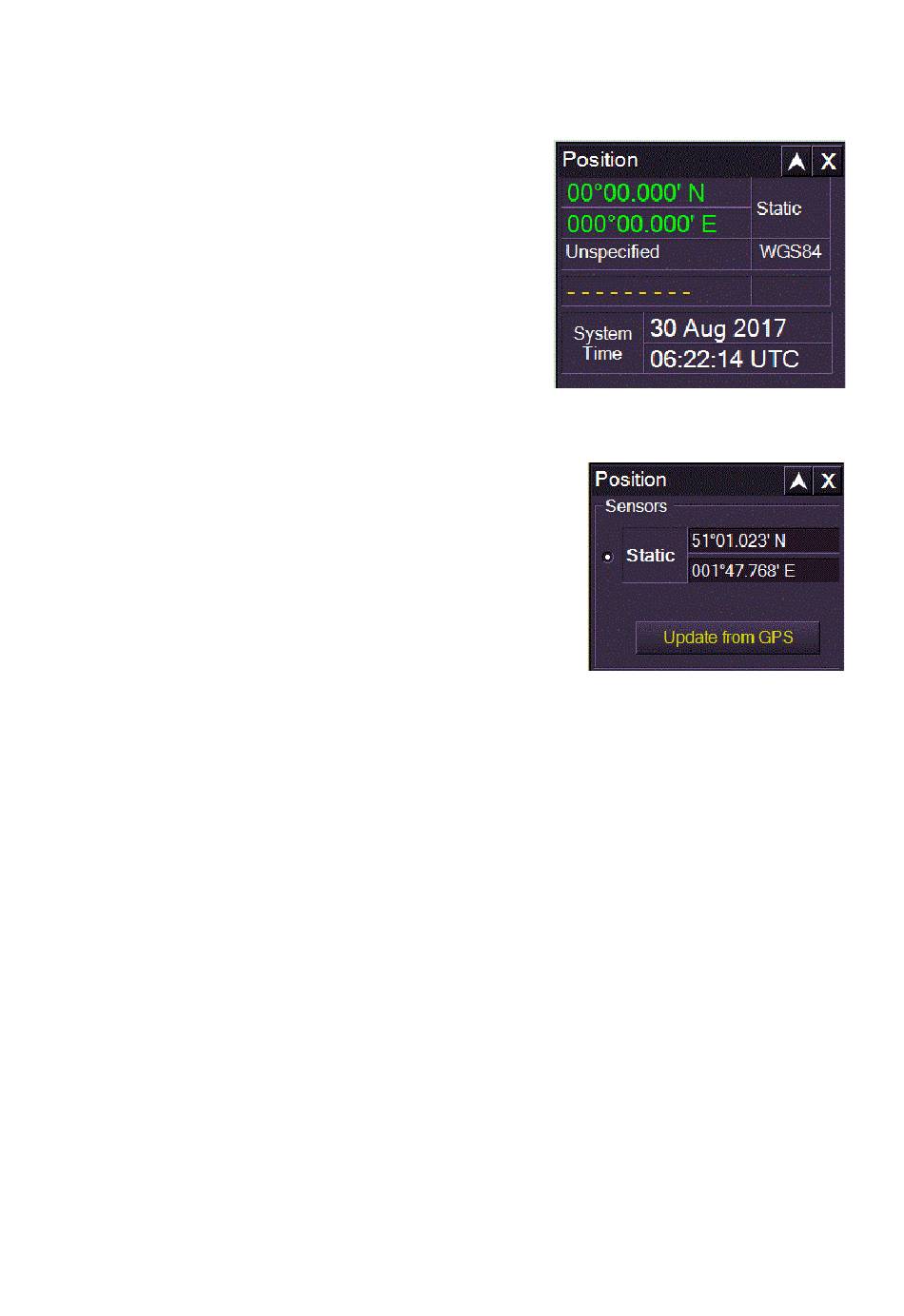

1. Navigate to the Position Sensor Data Display in the Sensors menu
The Position folder appears.
2. To update the static site position to the
values defined by a GPS sensor click
the Update to GPS button. The L/L
values are entered.
3. To manually enter L/L values click in the
Static fields. The text becomes editable
(green) and the numeric keypad
appears.
4. Enter the required L/L position from the keypad and click the
keypad OK key. The values appear in the Static L/L fields and the
keypad is removed.
The manually entered position is saved in system memory and will persist
when the system is re-started.
Annex A-4
ECDIS User Guide
65900012
