ECDIS User Guide

Edit

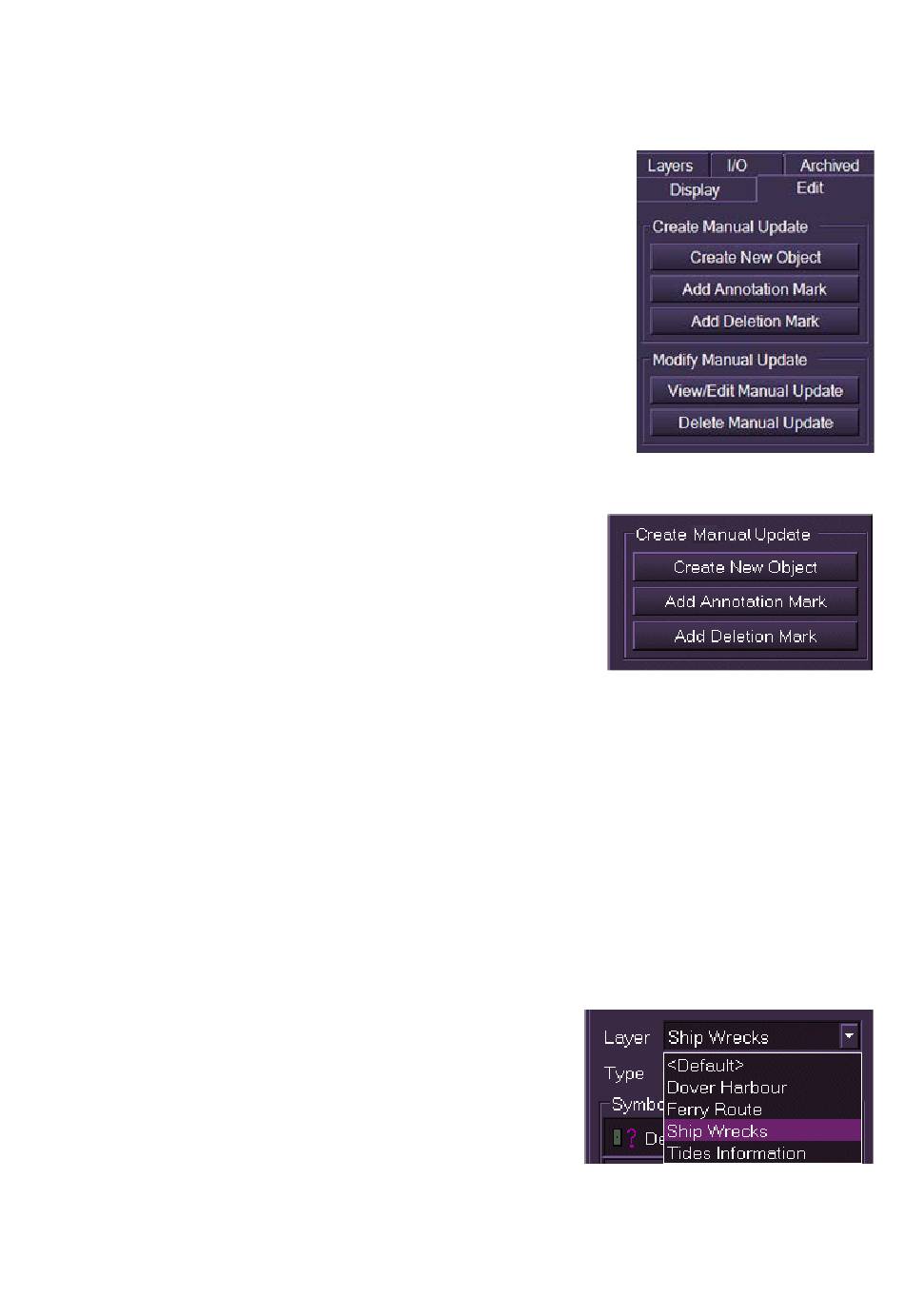

The Edit tab folder is : Create Manual Update and Modify Chart Update.
The Create Manual Update area includes the
following links:
•
Create New object
•
Add Annotation Mark
•
Add Deletion Mark
The Modify Manual Update area includes the
following links:
•
View/Edit Manual Update
•
Delete Manual Update

Create and Modify Manual Updates

Create Manual Update
The Create Manual Update area of the Edit tab
folder enables you to do the following:
•
Create New Object - creates a new
chart object on an existing chart
•
Add Annotation Mark - adds an annotation mark to an ENC chart
object
•
Add Deletion Mark - adds a deletion mark to an ENC chart object.
Create New Object
All chart objects are created from Create New Object. When the button is
clicked a Manual Update Creation function appears.
To create a new chart object onto an existing chart do the following:
1. Click on the Create New Object button. The following screen
allows you to specify details about the object to be created.
2. To associate the update to a layer click on the Layer drop down
arrow and select from the list. If no
chart layers have been created the
update will associate to the default
layer.
65900012
Charts
4-59
