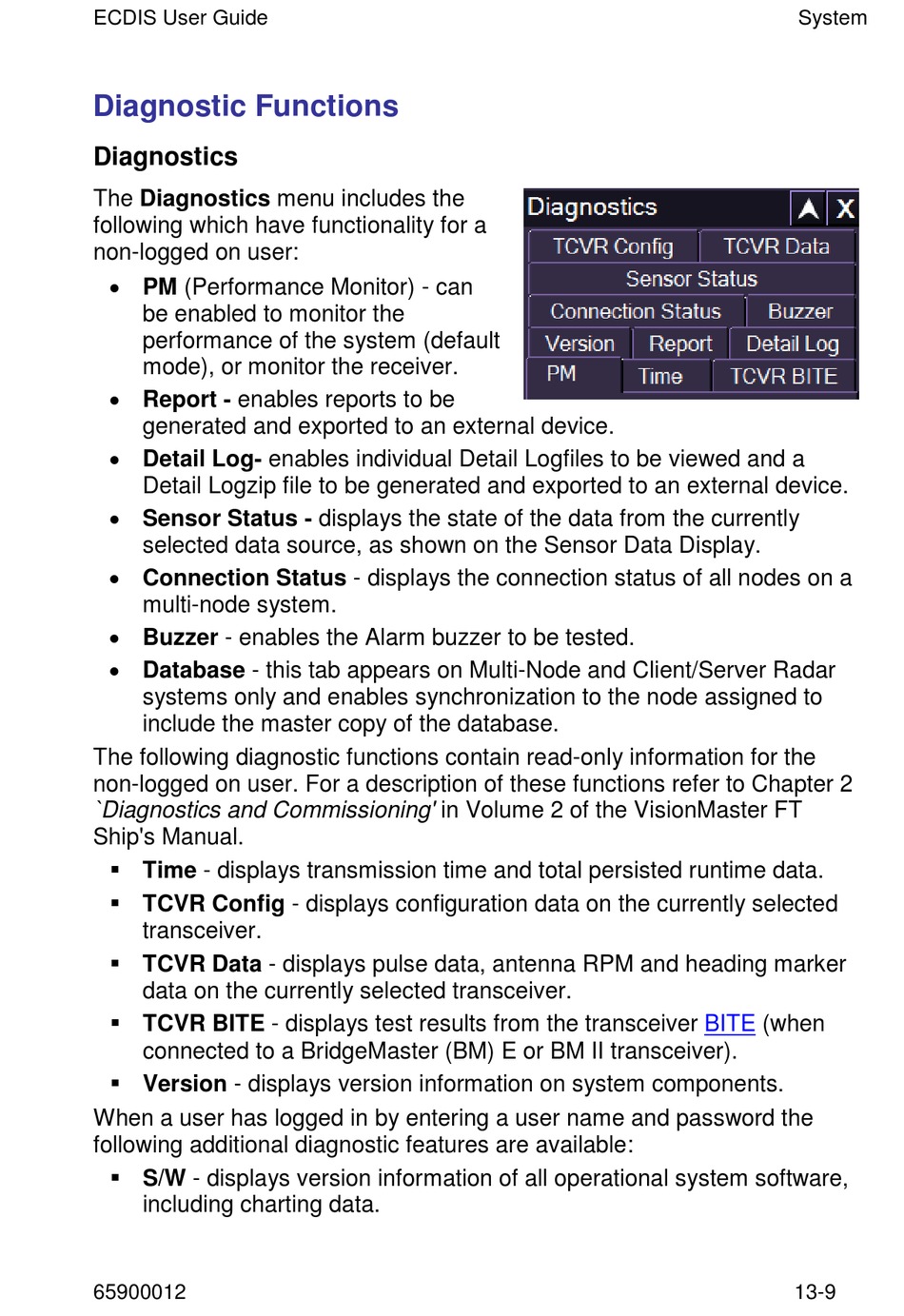

ECDIS User Guide

Diagnostic Functions

Diagnostics
The Diagnostics menu includes the
following which have functionality for a
non-logged on user:
• PM (Performance Monitor) - can
be enabled to monitor the
performance of the system (default
mode), or monitor the receiver.
• Report - enables reports to be
generated and exported to an external device.
• Detail Log- enables individual Detail Logfiles to be viewed and a
Detail Logzip file to be generated and exported to an external device.
• Sensor Status - displays the state of the data from the currently
selected data source, as shown on the Sensor Data Display.
• Connection Status - displays the connection status of all nodes on a
multi-node system.
• Buzzer - enables the Alarm buzzer to be tested.
• Database - this tab appears on Multi-Node and Client/Server Radar
systems only and enables synchronization to the node assigned to
include the master copy of the database.
The following diagnostic functions contain read-only information for the
non-logged on user. For a description of these functions refer to Chapter 2
`Diagnostics and Commissioning' in Volume 2 of the VisionMaster FT
Ship's Manual.
 Time - displays transmission time and total persisted runtime data.
 TCVR Config - displays configuration data on the currently selected
transceiver.
 TCVR Data - displays pulse data, antenna RPM and heading marker
data on the currently selected transceiver.
 TCVR BITE - displays test results from the transceiver
connected to a BridgeMaster (BM) E or BM II transceiver).
 Version - displays version information on system components.
When a user has logged in by entering a user name and password the
following additional diagnostic features are available:
 S/W - displays version information of all operational system software,
including charting data.
