Archived - Sperry Marine Visionmaster FT ECDIS User Manual

Charts

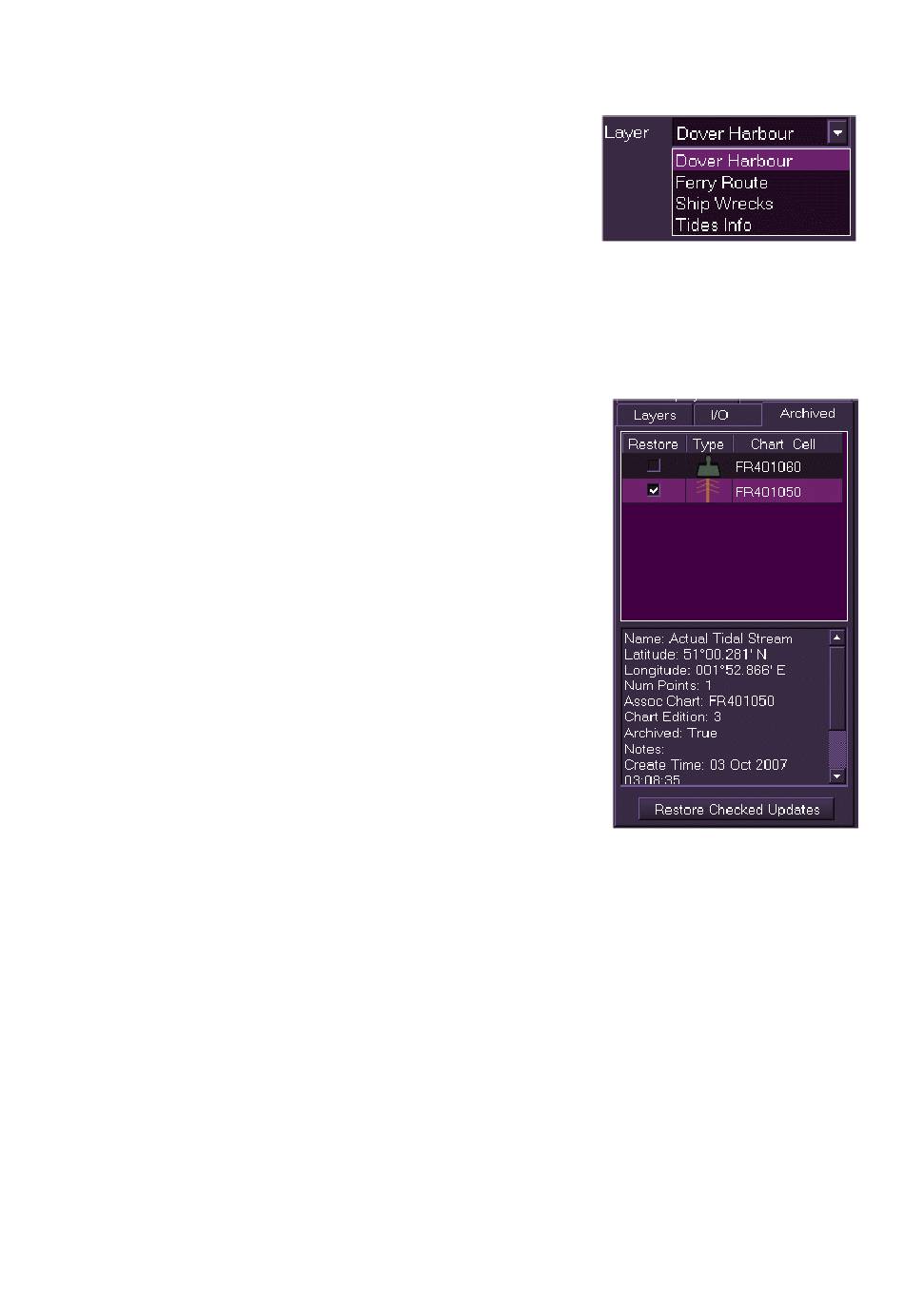

4. If Objects in Layer is selected, a layer field with a drop down list
appears, select the layer to be exported
from the list.
5. When the required export options have
been selected name the file to be
exported in the Filename field and click
the Export button. If successful a temporary prompt appears
confirming the export.
6. When complete remove the external device from the PC.

Archived

The Archived tab displays all manually created chart
objects that have been deleted within the past three
months.
The Archived list shows the chart object and its
associated chart. To view a detailed description of
each object, highlight the object line.
To restore objects to the chart tick the object's
Restore check box and then click the Restore
Checked Updates button. The selected objects are
restored to their original position on the chart.
4-74
ECDIS User Guide
65900012
