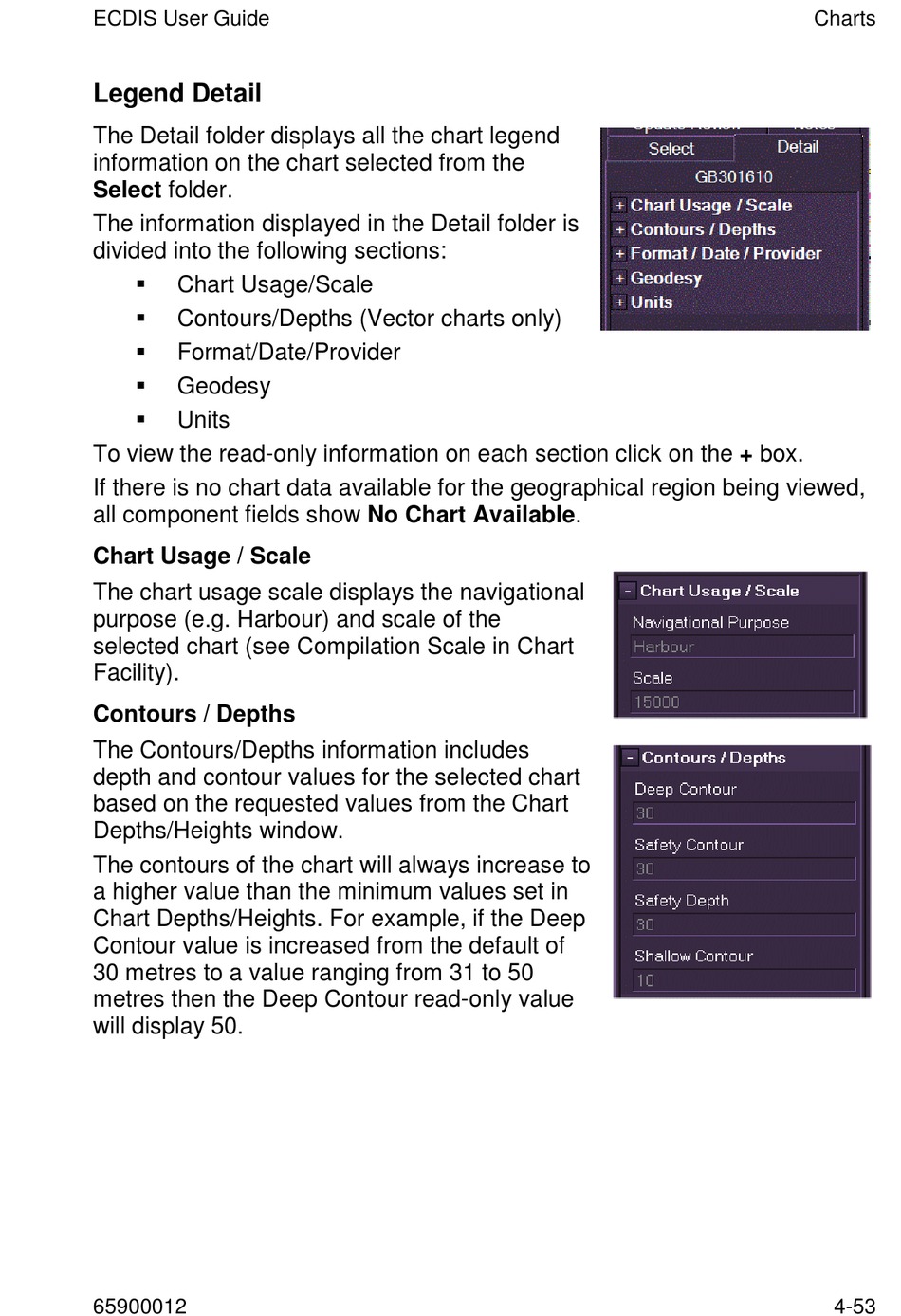

Legend Detail - Sperry Marine Visionmaster FT ECDIS User Manual

ECDIS User Guide

Legend Detail

The Detail folder displays all the chart legend
information on the chart selected from the
Select folder.
The information displayed in the Detail folder is
divided into the following sections:

Chart Usage/Scale

Contours/Depths (Vector charts only)

Format/Date/Provider

Geodesy

Units
To view the read-only information on each section click on the + box.
If there is no chart data available for the geographical region being viewed,
all component fields show No Chart Available.
Chart Usage / Scale
The chart usage scale displays the navigational
purpose (e.g. Harbour) and scale of the
selected chart (see Compilation Scale in Chart
Facility).
Contours / Depths
The Contours/Depths information includes
depth and contour values for the selected chart
based on the requested values from the Chart
Depths/Heights window.
The contours of the chart will always increase to
a higher value than the minimum values set in
Chart Depths/Heights. For example, if the Deep
Contour value is increased from the default of
30 metres to a value ranging from 31 to 50
metres then the Deep Contour read-only value
will display 50.
