Charts

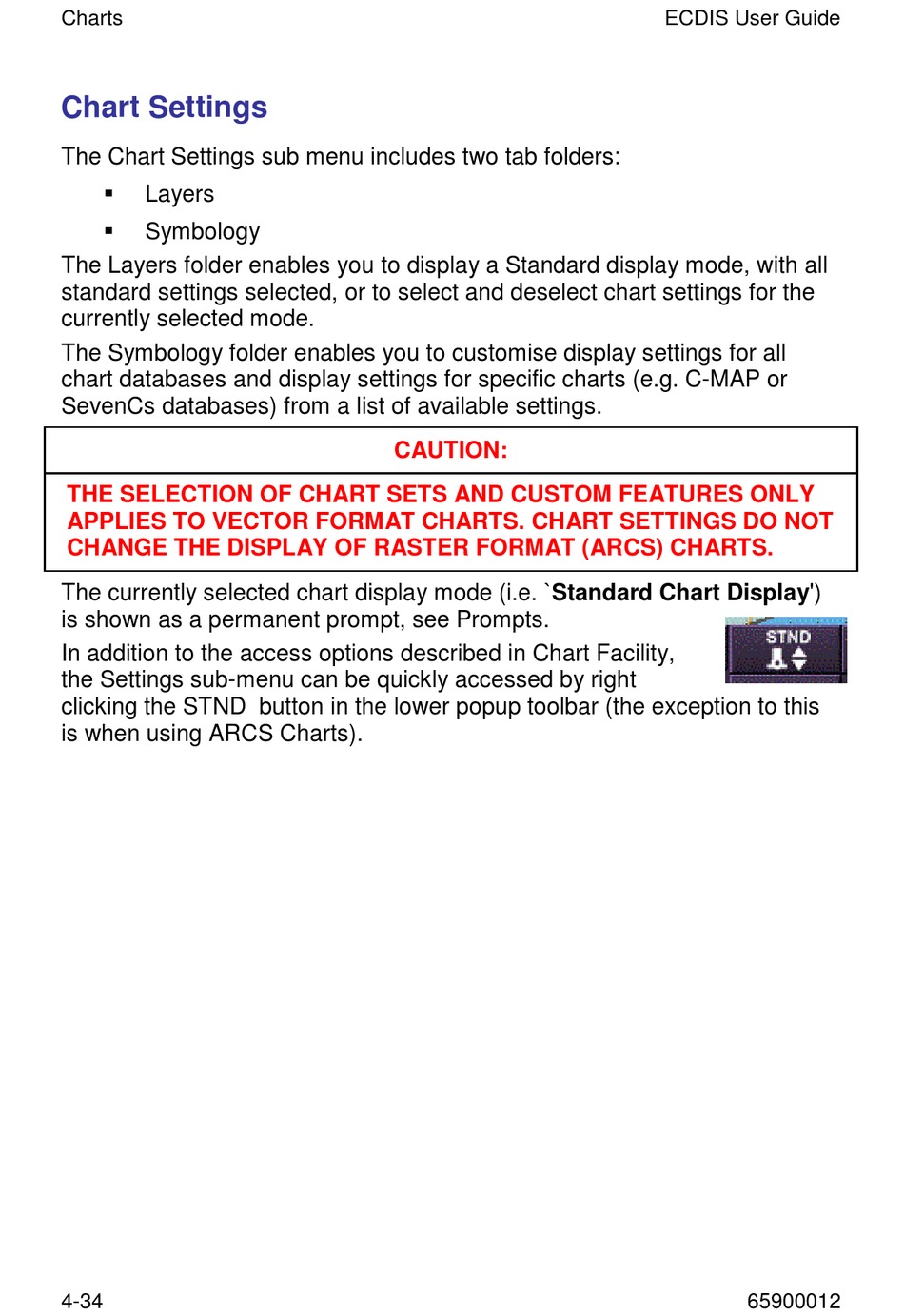

Chart Settings

The Chart Settings sub menu includes two tab folders:

Layers

Symbology
The Layers folder enables you to display a Standard display mode, with all
standard settings selected, or to select and deselect chart settings for the
currently selected mode.
The Symbology folder enables you to customise display settings for all
chart databases and display settings for specific charts (e.g. C-MAP or
SevenCs databases) from a list of available settings.
THE SELECTION OF CHART SETS AND CUSTOM FEATURES ONLY
APPLIES TO VECTOR FORMAT CHARTS. CHART SETTINGS DO NOT
CHANGE THE DISPLAY OF RASTER FORMAT (ARCS) CHARTS.
The currently selected chart display mode (i.e. `Standard Chart Display')
is shown as a permanent prompt, see Prompts.
In addition to the access options described in Chart Facility,
the Settings sub-menu can be quickly accessed by right
clicking the STND button in the lower popup toolbar (the exception to this
is when using ARCS Charts).
4-34
CAUTION:
ECDIS User Guide
65900012
