ECDIS User Guide
Export ARCS User Permit
To export an ARCS User Permit do the following:
1. Insert an external device, such as a USB memory stick,into a port
at the rear of the PC .

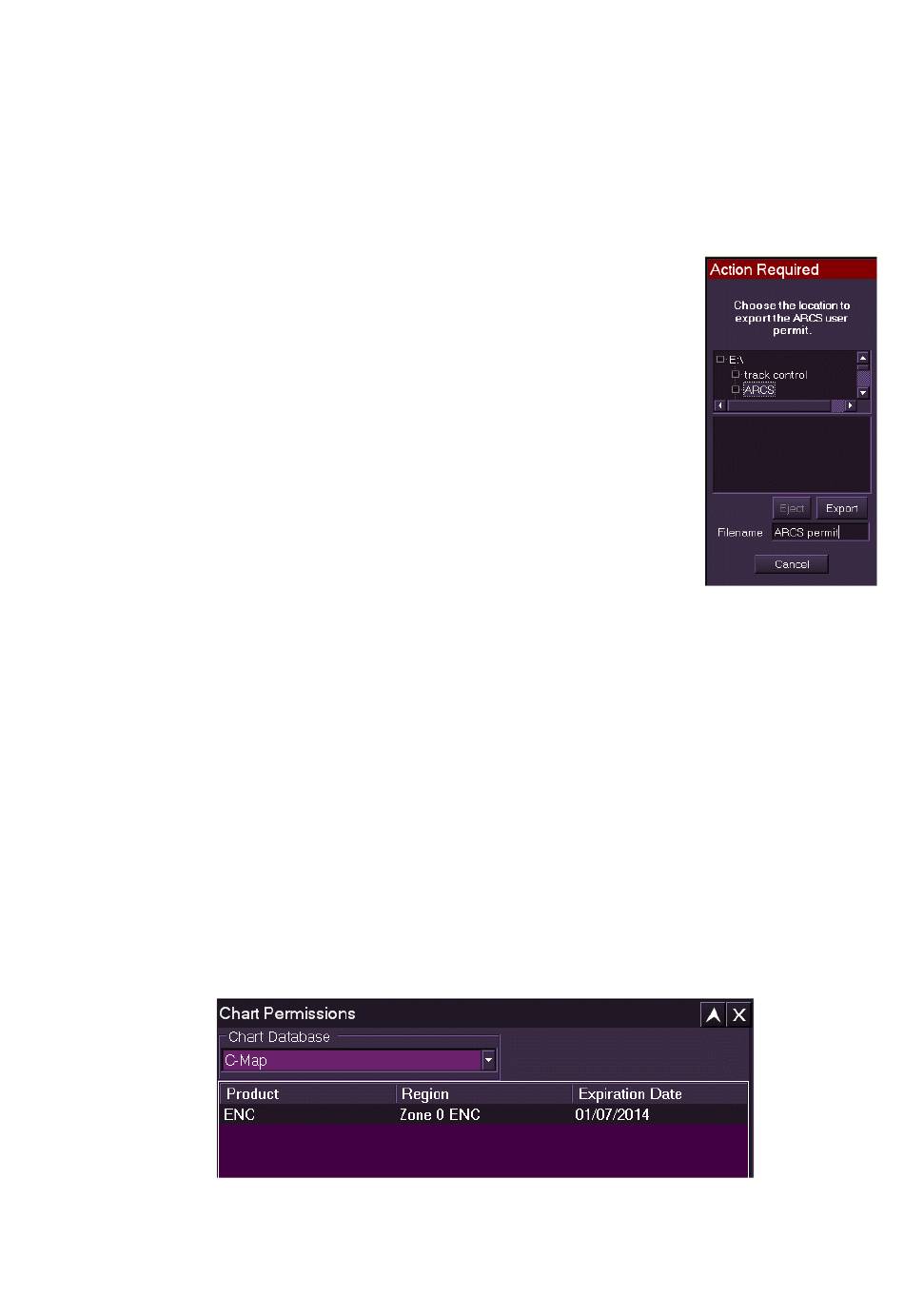

2. Click on the Export ARCS User Permit button. The subsequent
window displays the external disk drive and prompts to choose the
location to export the permit file.
3. Navigate to the location where you want the file
exported to by clicking on the
the directory folder.
4. To enter a name for the hardware ID file click in
the Filename field and enter a name using the
screen keypad.
5. With the export location highlighted and a name
entered click the Export button, The ARCS user
permit is generated based on information in the
Sperry security block. The user permit is a 16
character text file.
If successful a temporary prompt is displayed confirming that the
file has been exported with the selected location detailed in the
prompt.
6. To cancel the export operation click the Cancel button. The Tools
menu re-appears.
7. When the file has been exported, select the route directory (i.e.
E:\), click the Eject button and remove the external device from the
PC.
C-Map Permissions
When in Standby, information on the C-Map charts, including product
(ENC), region covered and permit expiration date can be viewed by clicking
on the C-Map Permissions button. A tabular window appears over the
display.
65900012
+
button to the left of
Charts
4-33
