To remove an individual anchor watch on a target right click on the target
symbol and select Remove Anchor Watch from the semi-transparent
context window.

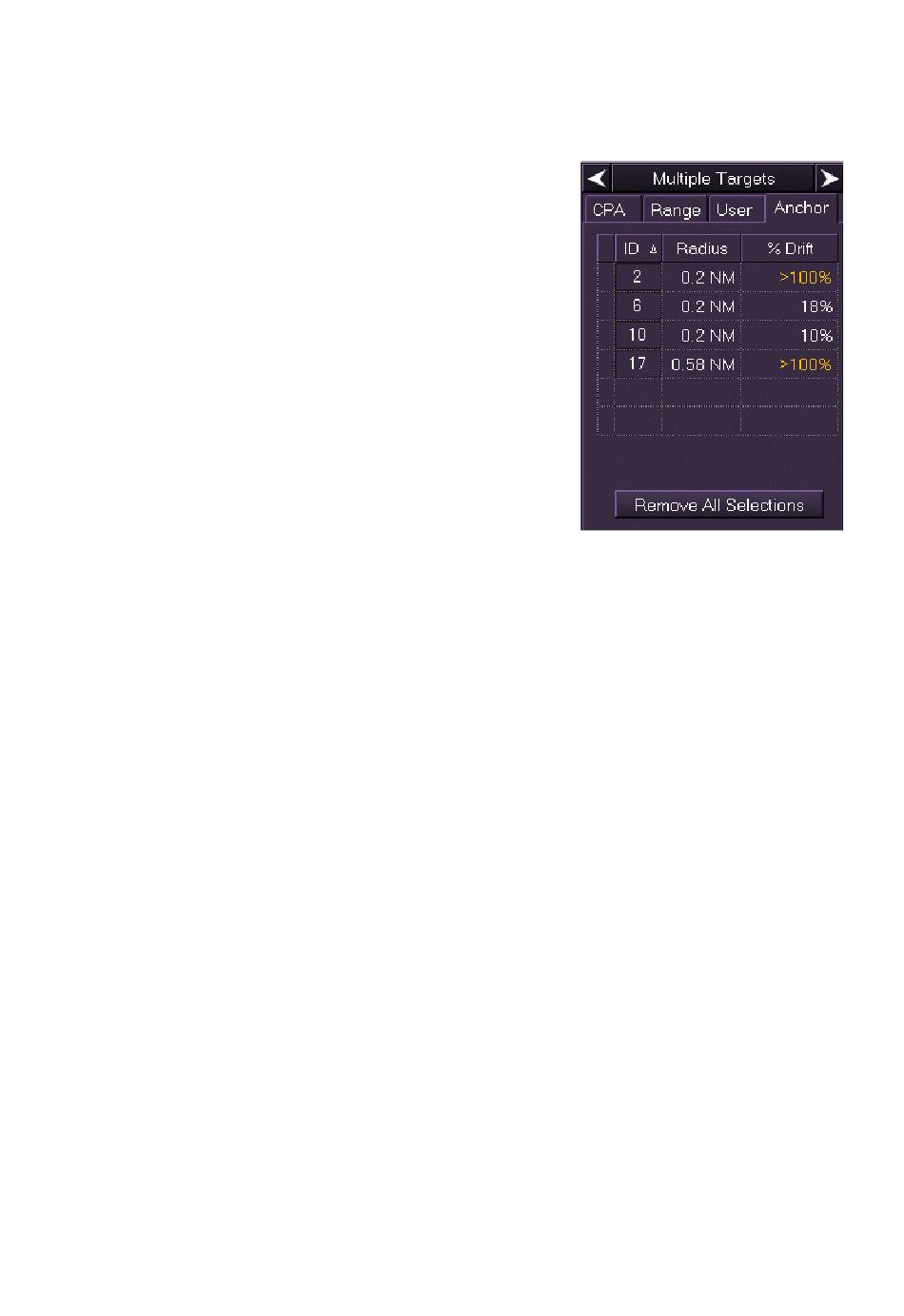

To remove all anchor watch selections, navigate
to Multiple Targets and select the Anchor tab.
The anchor folder lists the ID number of all
targets with an anchor watch, the radius of the
watch circle and the target drift in percentage
terms. Targets showing >100% drift in orange
are outside the anchor watch area.
Click the Remove All Selections button at the
bottom of the folder to remove all anchor watch
selections from the Multiple Targets list and
chart display.
Any Target Anchor Drift warnings associated
with a target are cleared when the anchor watch
selection is removed.
