ECDIS User Guide
Course Change Messages

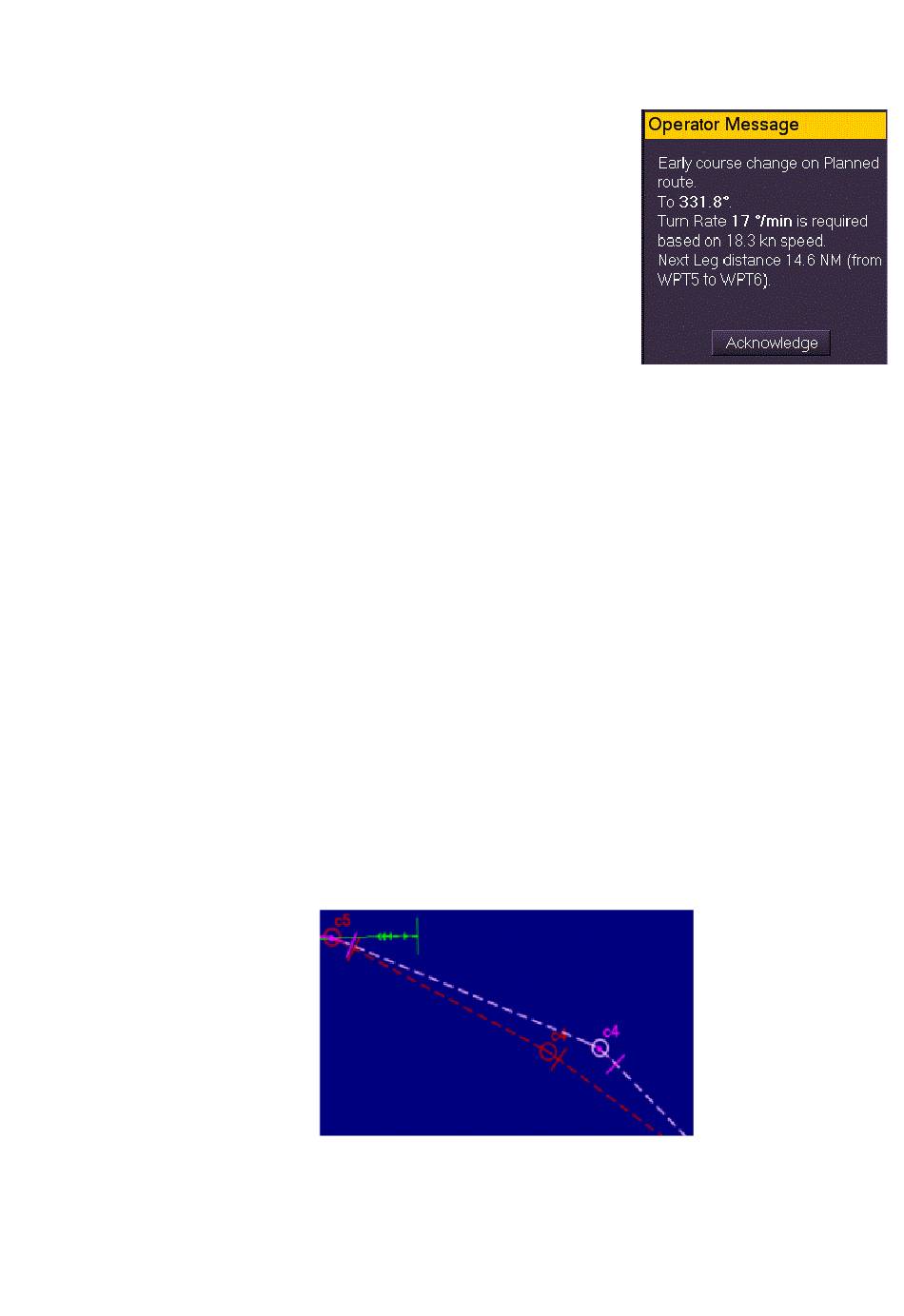

Alerts for course changes appear as Operator
Messages above the Show Menu button while a
route is being monitored.
When a course change message is first raised the
Operator Message banner is shown with a yellow
background and a warning alert is raised. If the
message is not acknowledged after a period of
time the alert level is escalated to an alarm and
the Operator Message banner appears with a red
background.
If the Backup Navigator Alarm is enabled in the Settings tab the alarm will
be raised if the course change message has still not been acknowledged
after 30 seconds.
The Operator Message will be removed from the display when the
message is acknowledged, or when a backup navigator alarm is generated.
Editing a currently Monitored Route
When a route is being monitored the route is rendered in the non-editable
monitor colour (red). A currently monitored route can only be changed from
the Edit Route folder, saved and then reloaded from the Monitor Route
folder.
To change a currently monitored route, do the following:
1. To edit a currently monitored route, select Edit Route, and open the
currently monitored route from the Load Route window.
2. When you are monitoring a route and open the same route for
editing the system creates a duplicate route with the edit route
mode superimposed over the monitored route in the editable colour
(pink).
3. Make the required edits to the route, for details refer to Edit Route -
Waypoints Tab. As the route is changed the screen shows the
monitored route in the original position.
65900012
Routes
8-35
