To export a fault report, do the following:
1. Insert an external device into the PC and select the Report tab
folder.
2. The external drive will be listed in the first navigation window, this will
typically be E:\. If any previous report files are on the device they will
be listed in the window below the device navigation tree as .rpt files.
3. To change the file name from the default of Report (date) click in the
Filename field and, using the on-screen keypad, enter a name for
the report. The name would typically be related to the fault, i.e. 'track
fault' or 'video error 3'.
4. Select the report type from the three options listed above.
5. If required, enter a description of the report in the Description field.
6. Click on the Export button to generate the report. While the export is
in progress the Export button changes to display Wait... If successful
a temporary prompt will appear confirming the export.
As the 1 Minute Movie option creates a file that will be larger than
10Mb, this option should only be selected when the fault can best be
described by a series of images.
7. When complete click the Eject button before removing the external
device.
To export diagnostic log files do the following:
1. Follow steps 1 to 3 in the previous
procedure.
2. Select the Diagnostic Log Files from the
Report Options drop down list.
3. If required, enter a description of the log
files in the Description field.

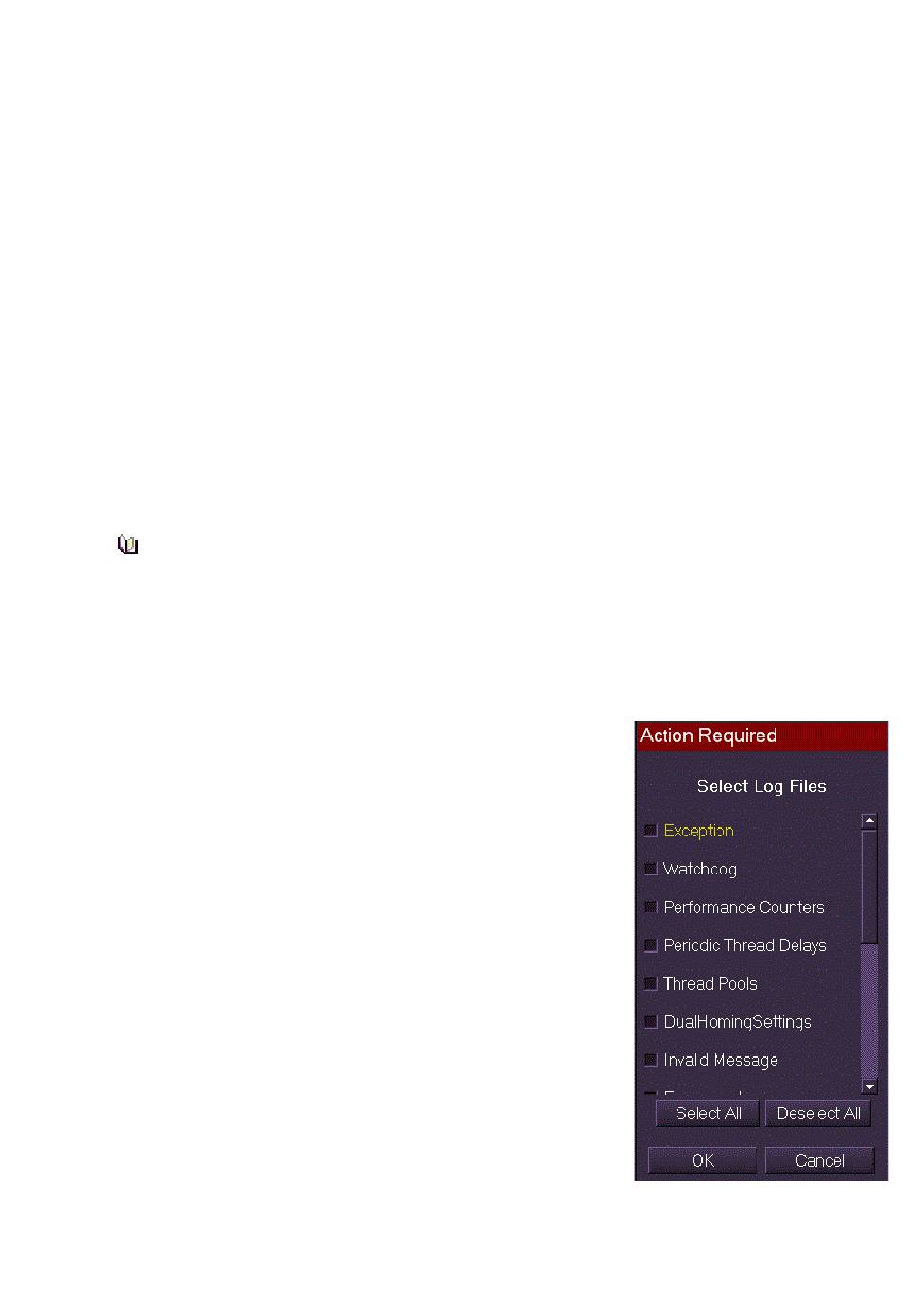

4. Click on the Export button. An Action
Required window appears listing all the
available diagnostic log files.
5. Either select individual files by ticking their
check boxes, or select all files by clicking
the Select All button.
6. Click the OK button. While the export is in
progress the Export button changes to
display Wait... and is disabled. When the
report is successfully exported a temporary prompt will appear
confirming the export.
