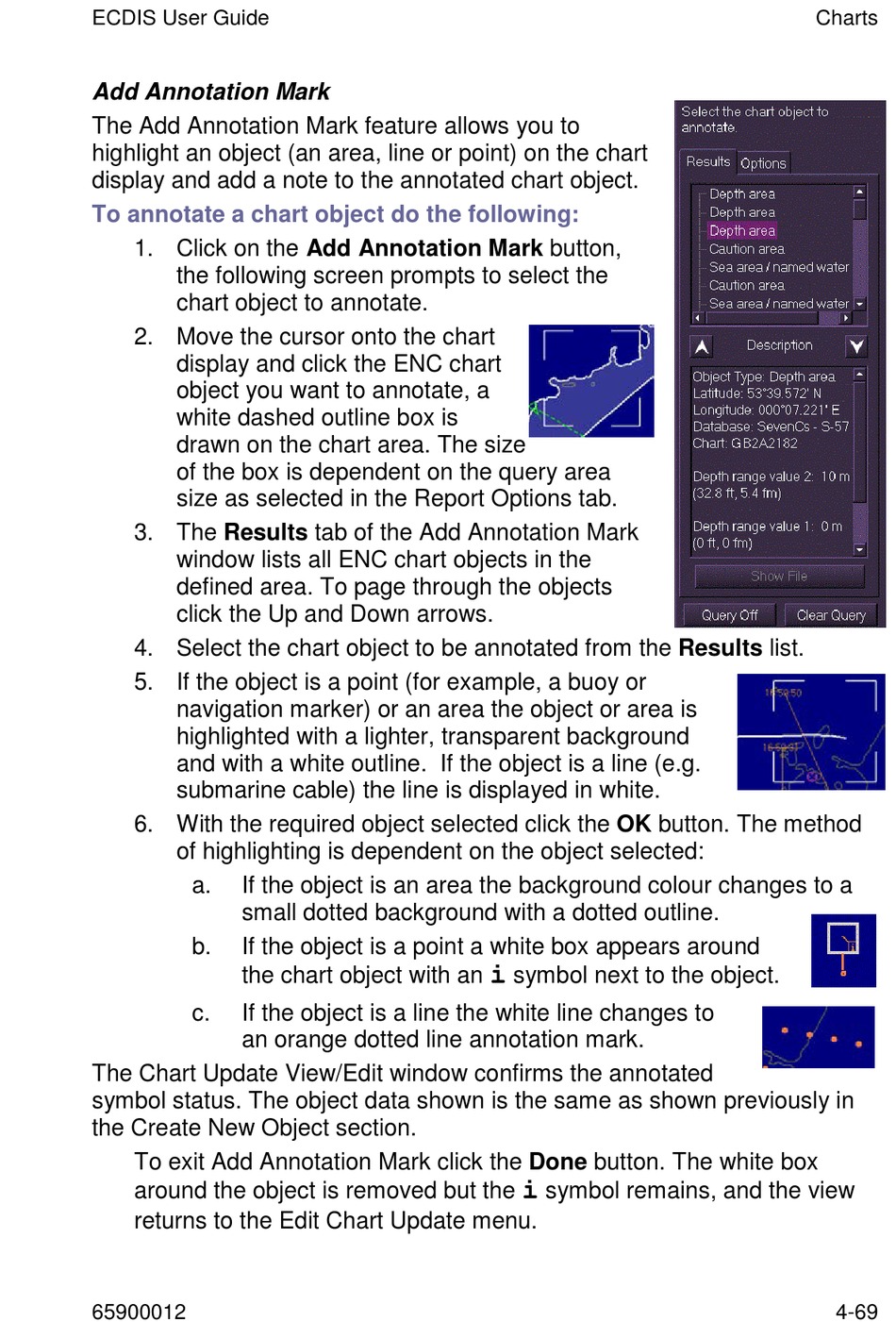

ECDIS User Guide
Add Annotation Mark
The Add Annotation Mark feature allows you to
highlight an object (an area, line or point) on the chart
display and add a note to the annotated chart object.
To annotate a chart object do the following:
1. Click on the Add Annotation Mark button,
the following screen prompts to select the
chart object to annotate.
2. Move the cursor onto the chart
display and click the ENC chart
object you want to annotate, a
white dashed outline box is
drawn on the chart area. The size
of the box is dependent on the query area
size as selected in the Report Options tab.
3. The Results tab of the Add Annotation Mark
window lists all ENC chart objects in the
defined area. To page through the objects
click the Up and Down arrows.
4. Select the chart object to be annotated from the Results list.
5. If the object is a point (for example, a buoy or
navigation marker) or an area the object or area is
highlighted with a lighter, transparent background
and with a white outline. If the object is a line (e.g.
submarine cable) the line is displayed in white.
6. With the required object selected click the OK button. The method
of highlighting is dependent on the object selected:
a.
If the object is an area the background colour changes to a
small dotted background with a dotted outline.
b.
If the object is a point a white box appears around
the chart object with an
c.
If the object is a line the white line changes to
an orange dotted line annotation mark.
The Chart Update View/Edit window confirms the annotated
symbol status. The object data shown is the same as shown previously in
the Create New Object section.
To exit Add Annotation Mark click the Done button. The white box
around the object is removed but the
returns to the Edit Chart Update menu.
65900012
i
symbol next to the object.
i
symbol remains, and the view
Charts
4-69
