ECDIS User Guide

Transitioning a Temporary Route to a Monitored Route

A temp route may be used to transition own ship's course to a monitored
route.
To transition a temp route to a monitored route do the following:
1. Load the route to be monitored from the Route tab folder of the
Monitor Route window, see Monitor Route - Route Tab.

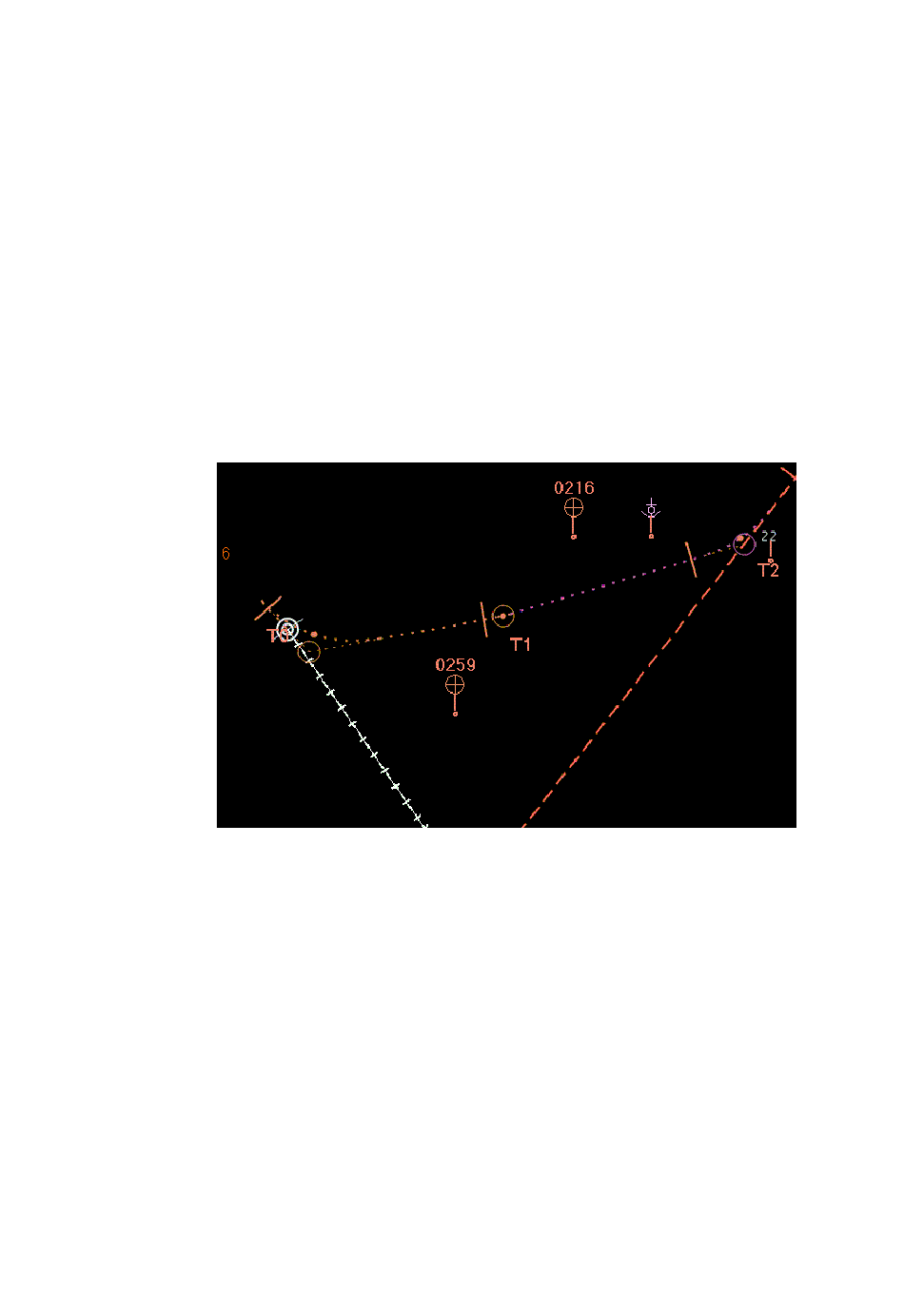

2. Create a temp route as described above. In Temp Route mode,
move the cursor to the monitored route, the letters under the cursor
change from TMP WPT to ADD RTP.
3. Click on any point on the monitored route. The system creates an
additional waypoint which smoothly transitions the temp route to
the monitored route.
4. Click Start to begin monitoring the Temp Route. The Monitor
Route, Route tab folder and the Routes button show the route
monitoring status, e.g. `Temp Route to Route 1'. When own ship
has sailed past the temp route the monitoring status changes to
show the monitored route only.
65900012
Routes
8-51
