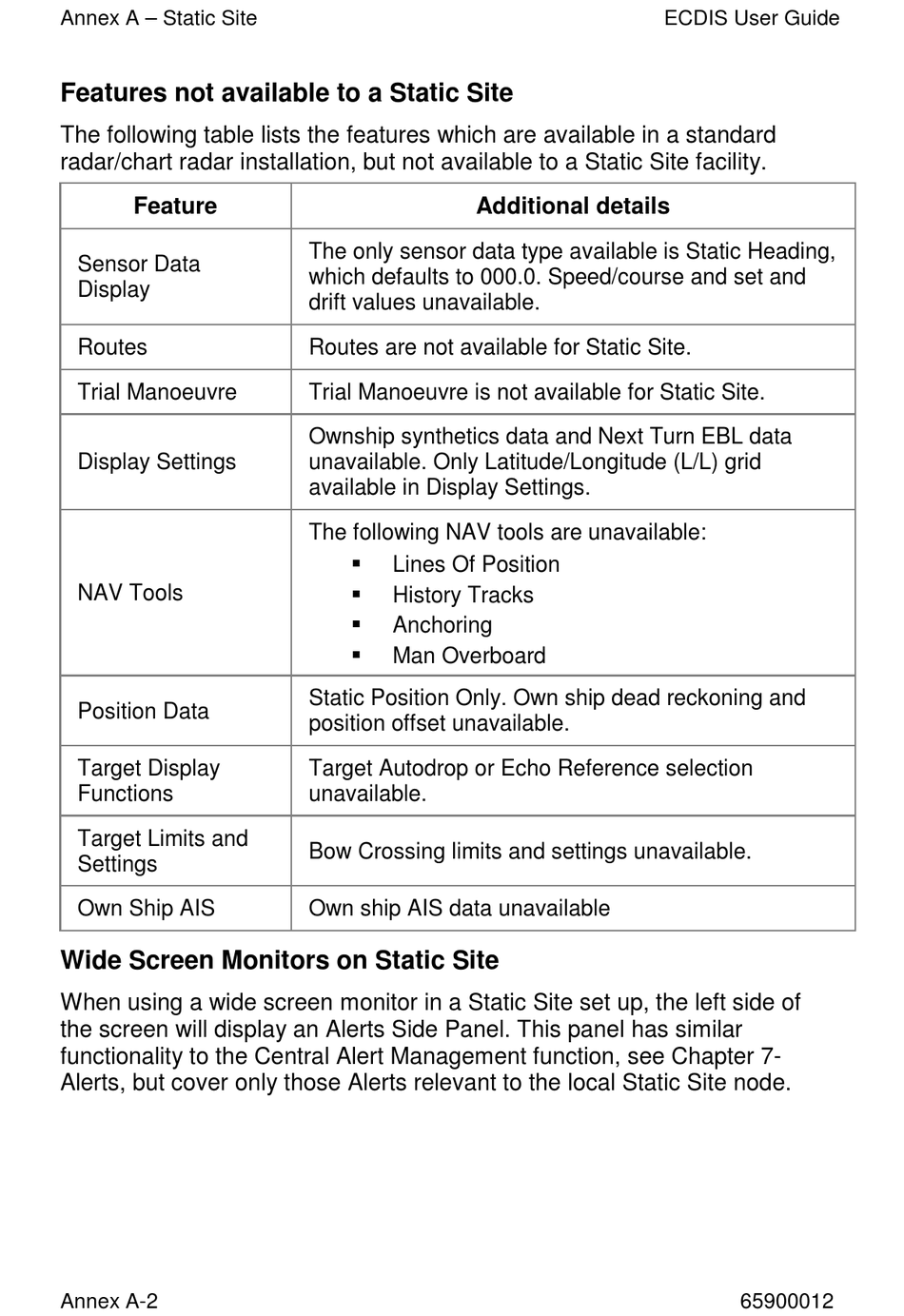

Annex A – Static Site

Features not available to a Static Site

The following table lists the features which are available in a standard
radar/chart radar installation, but not available to a Static Site facility.
Feature
Sensor Data
Display
Routes
Trial Manoeuvre
Display Settings
NAV Tools
Position Data
Target Display
Functions
Target Limits and
Settings
Own Ship AIS

Wide Screen Monitors on Static Site

When using a wide screen monitor in a Static Site set up, the left side of
the screen will display an Alerts Side Panel. This panel has similar
functionality to the Central Alert Management function, see Chapter 7-
Alerts, but cover only those Alerts relevant to the local Static Site node.
Annex A-2
Additional details
The only sensor data type available is Static Heading,
which defaults to 000.0. Speed/course and set and
drift values unavailable.
Routes are not available for Static Site.
Trial Manoeuvre is not available for Static Site.
Ownship synthetics data and Next Turn EBL data
unavailable. Only Latitude/Longitude (L/L) grid
available in Display Settings.
The following NAV tools are unavailable:

Lines Of Position

History Tracks

Anchoring

Man Overboard
Static Position Only. Own ship dead reckoning and
position offset unavailable.
Target Autodrop or Echo Reference selection
unavailable.
Bow Crossing limits and settings unavailable.
Own ship AIS data unavailable
