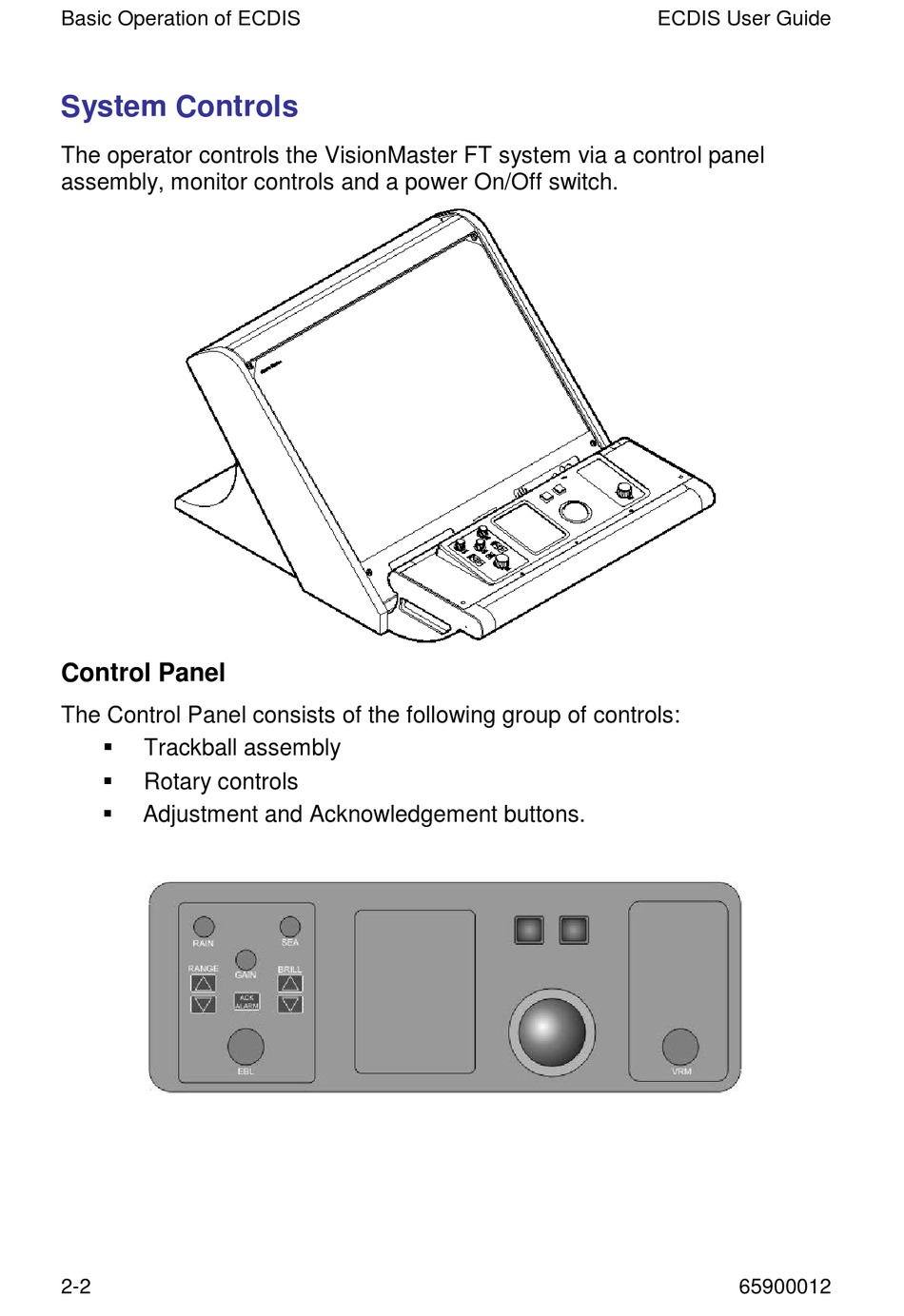

System Controls

The operator controls the VisionMaster FT system via a control panel
assembly, monitor controls and a power On/Off switch.

Control Panel

The Control Panel consists of the following group of controls:

Trackball assembly

Rotary controls

Adjustment and Acknowledgement buttons.
