Charts
View Logs
The View Chart Logs feature enables you to view chart install logs based
on a selected chart database and installation update event, defined by date
and time.
To view a chart install log, do the following:
•

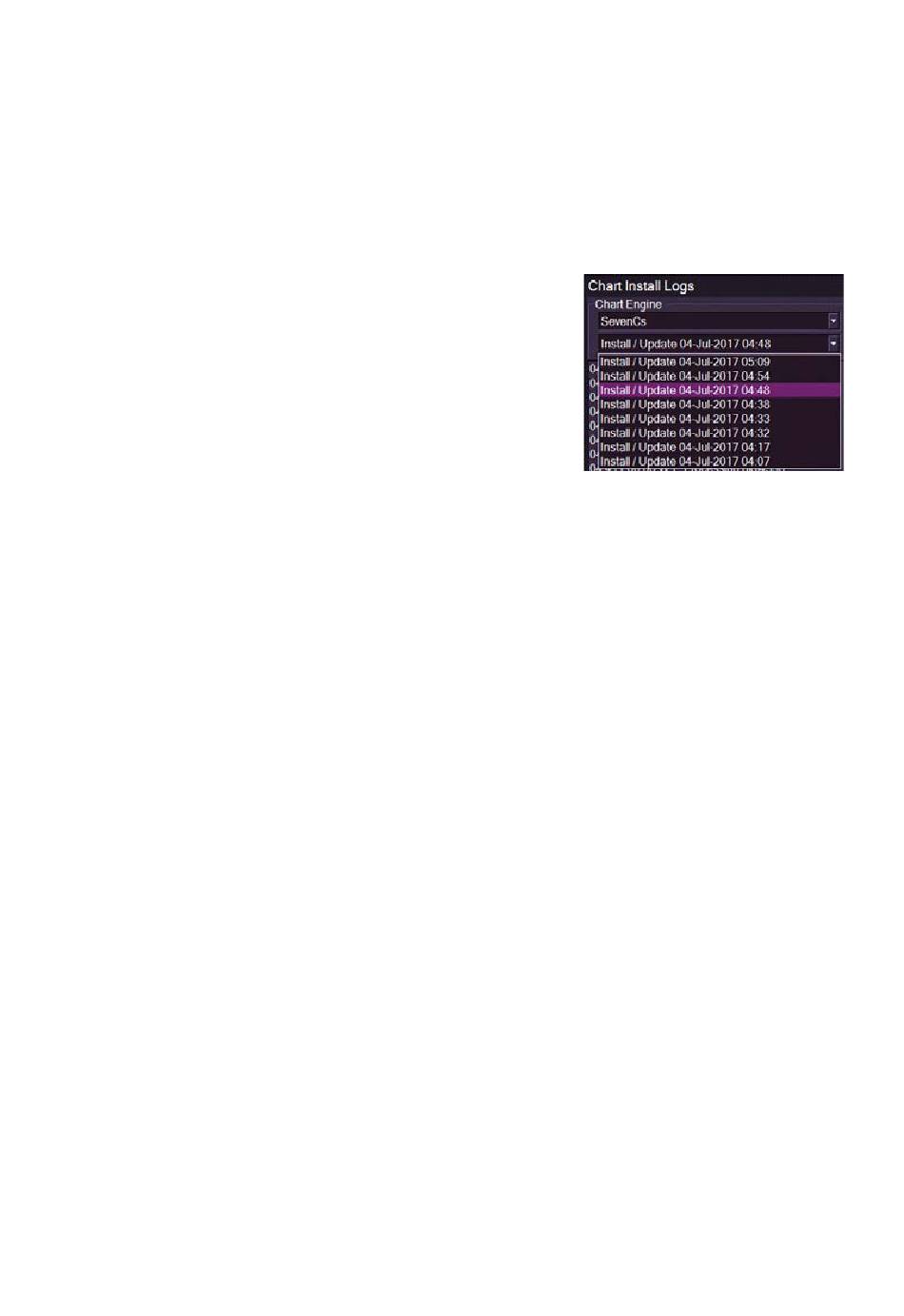

Double click on the View Logs button, the
Chart Install Logs window opens
displaying the latest chart install log files.
•
To select a specific chart engine click on
the drop down arrow on the Chart Engine
field and select from the list of options.
•
To view another log file click on the drop
down arrow and select from the list of
chart install logs.
The log file shows the time of each installation/update and a brief
description of the event (e.g. VPF installation).
4-30
ECDIS User Guide
65900012
