Charts
the permit has been exported with the selected location detailed in
the prompt.
6. To cancel the export operation click the Cancel button. The Tools
menu re-appears.
7. When the file has been exported, select the route directory (i.e.
E:\), click the Eject button and remove the external device from the
PC.
Once installed S-63 charts will be displayed even if cell permits have
expired.
Export 7Cs Hardware ID
To export a 7Cs Hardware ID file do the following:
1. Insert an external device, such as a USB memory stick, into a port
at the rear of the PC .
2. Click on the Export 7Cs Hardware ID button.

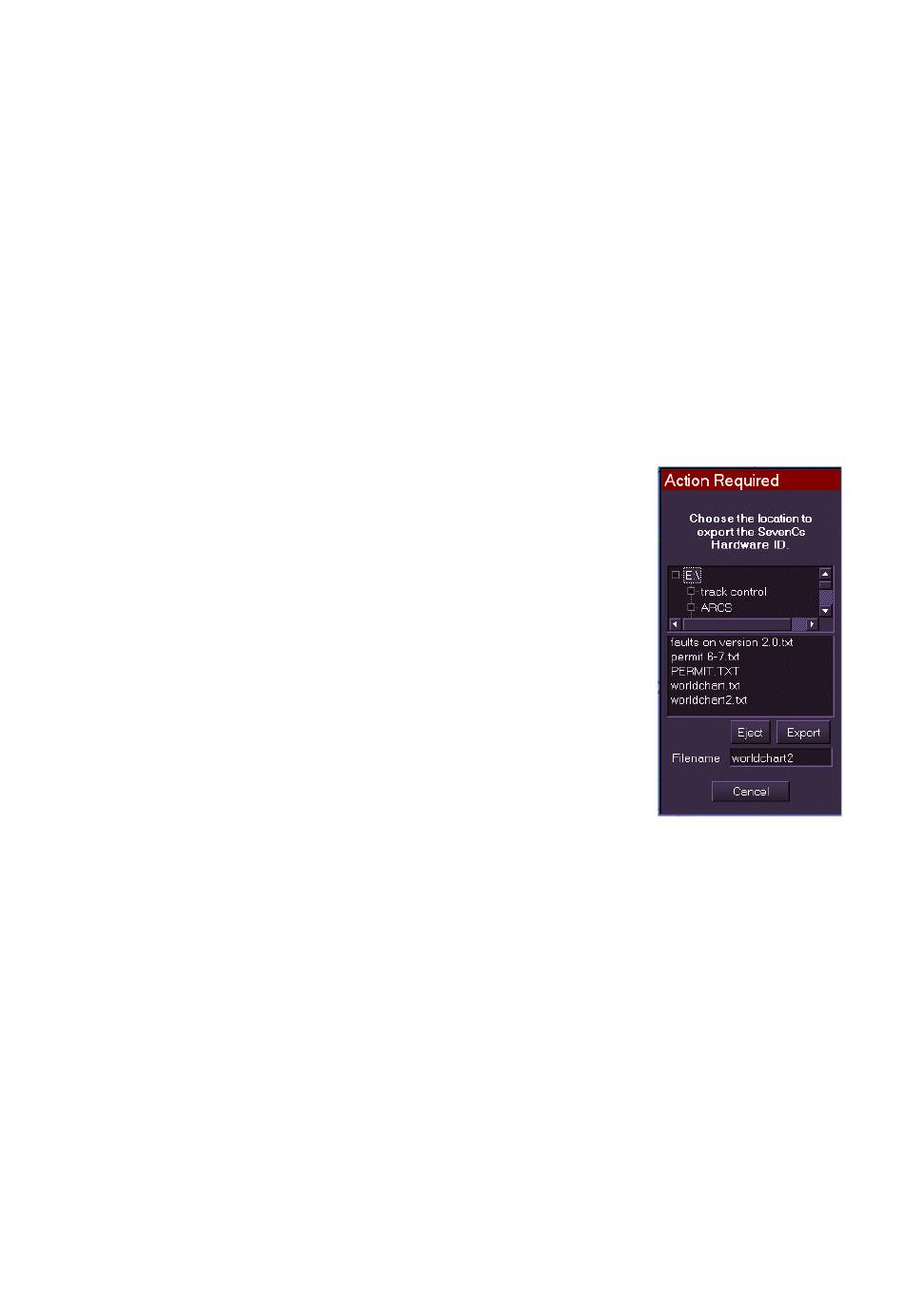

The subsequent window displays the external
disk drive and prompts to choose the location to
export the hardware ID file.
3. Navigate to the location where you want the file
exported to by clicking on the
of the directory folder.
4. To enter a name for the hardware ID file click in
the Filename field and enter a name using the
screen keypad.
5. With the export location highlighted and a name
entered click the Export button, the file is
exported to the location as a .txt file. If successful a temporary
prompt is displayed confirming that the file has been exported with
the selected location detailed in the prompt.
6. To cancel the export operation click the Cancel button. The Tools
menu re-appears.
7. When the file has been exported, select the route directory (i.e.
E:\), click the Eject button and remove the external device from the
PC.
4-32
+
button to the left
ECDIS User Guide
65900012
