2.8.3 Example of Energy Savings
As can be seen in Illustration 2.3, the flow is controlled by
changing the RPM. Reducing the speed only 20% from the
rated speed reduces the flow by 20%. This reduction
occurs because the flow is directly proportional to the
RPM. The consumption of electricity, however, is 50%
lower.
If the system in question must supply a flow that
corresponds to 100% only a few days in a year, while the
average is below 80% of the rated flow for the remainder
of the year, the amount of energy saved is even more than
50%.
Q = Flow P = Power
Q = Rated flow P
1 1
Q = Reduced flow P
2 2
H = Pressure n = Speed regulation
H = Rated pressure n
1 1
H = Reduced pressure n
2 2
Table 2.4 Laws of Proportionality
100%
80%
Flow ~n
50%
25%
12,5%
50%

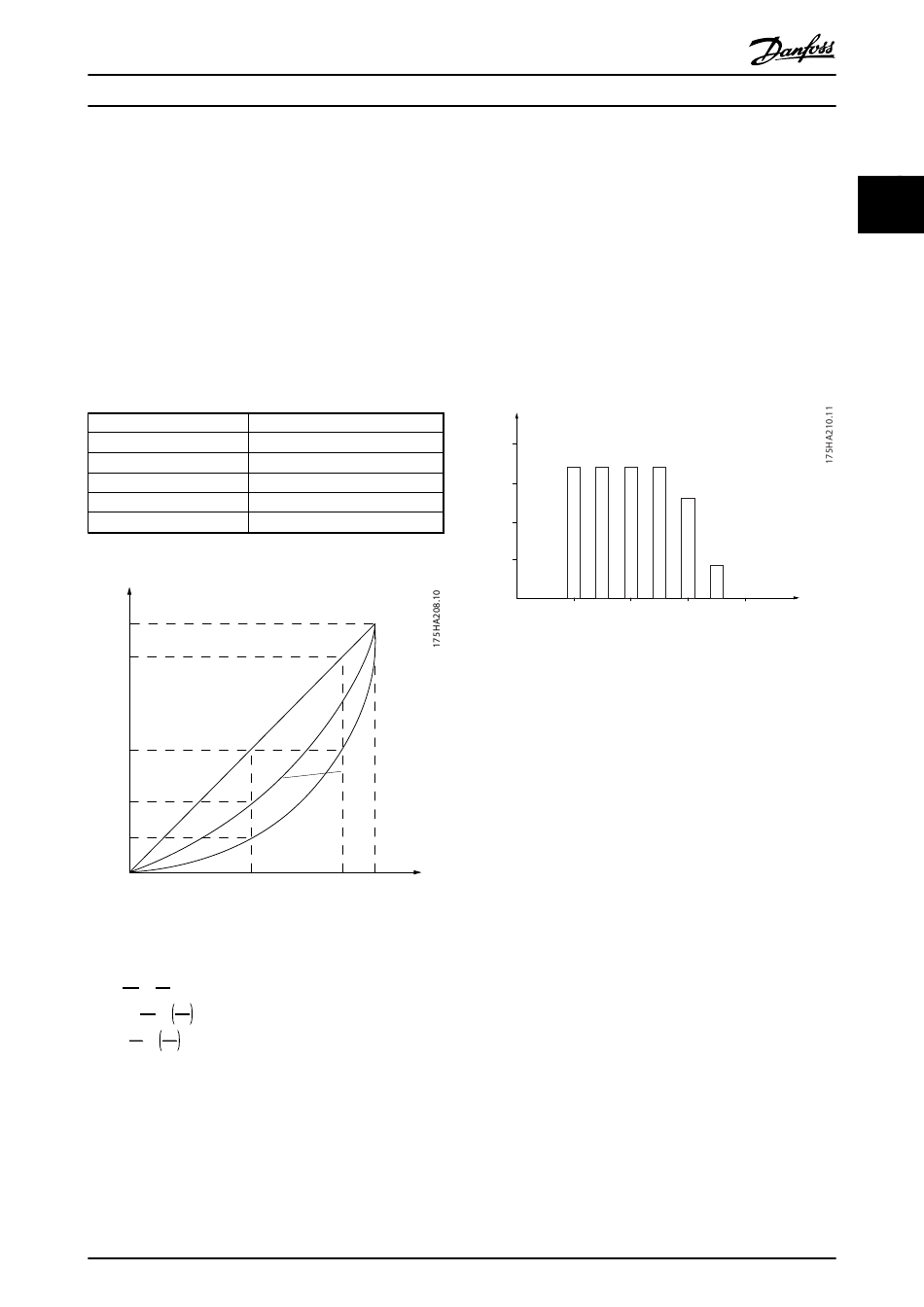

Illustration 2.3 Dependence of Flow, Pressure and Power
consumption on RPM
Q 1 n 1
Flow : =
Q 2 n 2
H 1 n 1 2
Pressure : =
H 2 n 2
P 1 n 1
3
Power :
=
P 2 n 2
MG20Z202
Design Guide
= Rated power
= Reduced power
= Rated speed
= Reduced speed
Pressure ~n 2
3
Power ~n
n
80% 100%
Danfoss A/S © Rev. 06/2014 All rights reserved.
2.8.4 Example with Varying Flow Over One
Year
Illustration 2.4 is calculated based on pump characteristics
obtained from a pump datasheet.
The result obtained shows energy savings in excess of 50%
at the given flow distribution over a year. The pay back
period depends on the price per kWh and the price of the
frequency converter. In this example, it is less than a year
when compared with valves and constant speed.
Energy savings
P =P
shaft shaft output
[h] t
2000
1500
1000
500
100 200
Illustration 2.4 Flow Distribution over 1 Year
Q
300 400
[m 3 /h]
15
2 2
