How to Install
Design Guide
Terminal Locations - D1h/D2h
Take the following position of the terminals into consideration when designing the cable access.
3
5
5
B
1

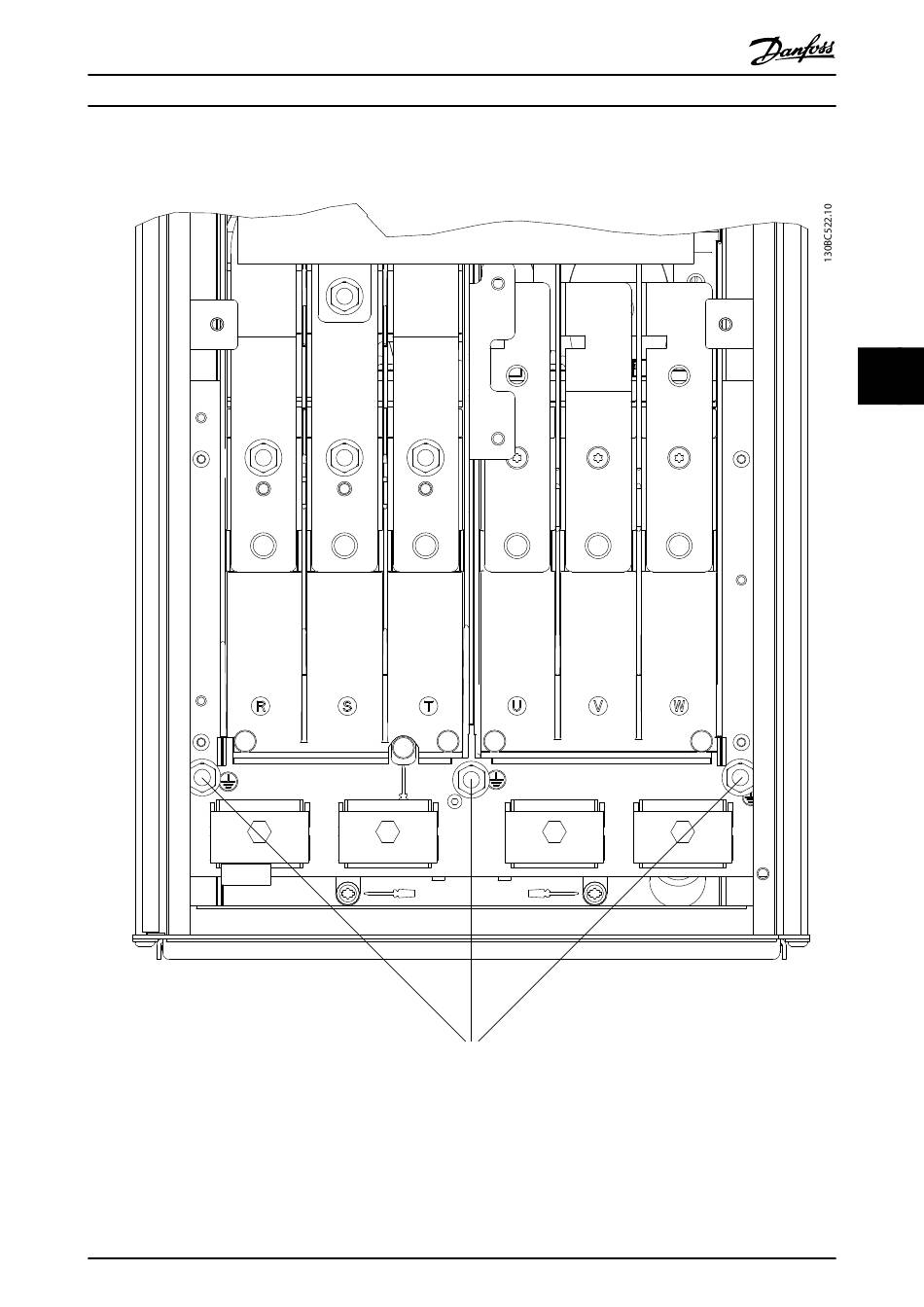

Illustration 5.63 Position of Ground Terminals IP21 (NEMA Type 1) and IP54 (NEMA Type 12), D1h/D2h
MG20Z202
Danfoss A/S © Rev. 06/2014 All rights reserved.
105
