Relay Output D Frame; Relay Output E & F-Frame - Danfoss VLT AQUA Drive FC 202 Design Manual

How to Install
Frame size
F3
F3
F3
F4
F4
Table 5.22 F-frame Contactors
NOTICE
Customer-supplied 230 V supply is required for mains contactors.
5 5

5.5.4 Relay Output D Frame

Relay 1
•
Terminal 01: common
•
Terminal 02: normally open 400 V AC
•
Terminal 03: normally closed 240 V AC
Relay 2
•
Terminal 04: common
•
Terminal 05: normally open 400 V AC
•
Terminal 06: normally closed 240 V AC
Relay 1 and relay 2 are programmed in 5-40 Function Relay,
5-41 On Delay, Relay, and 5-42 Off Delay, Relay.
Use option module MCB 105 for additional relay outputs.
relay1
relay2

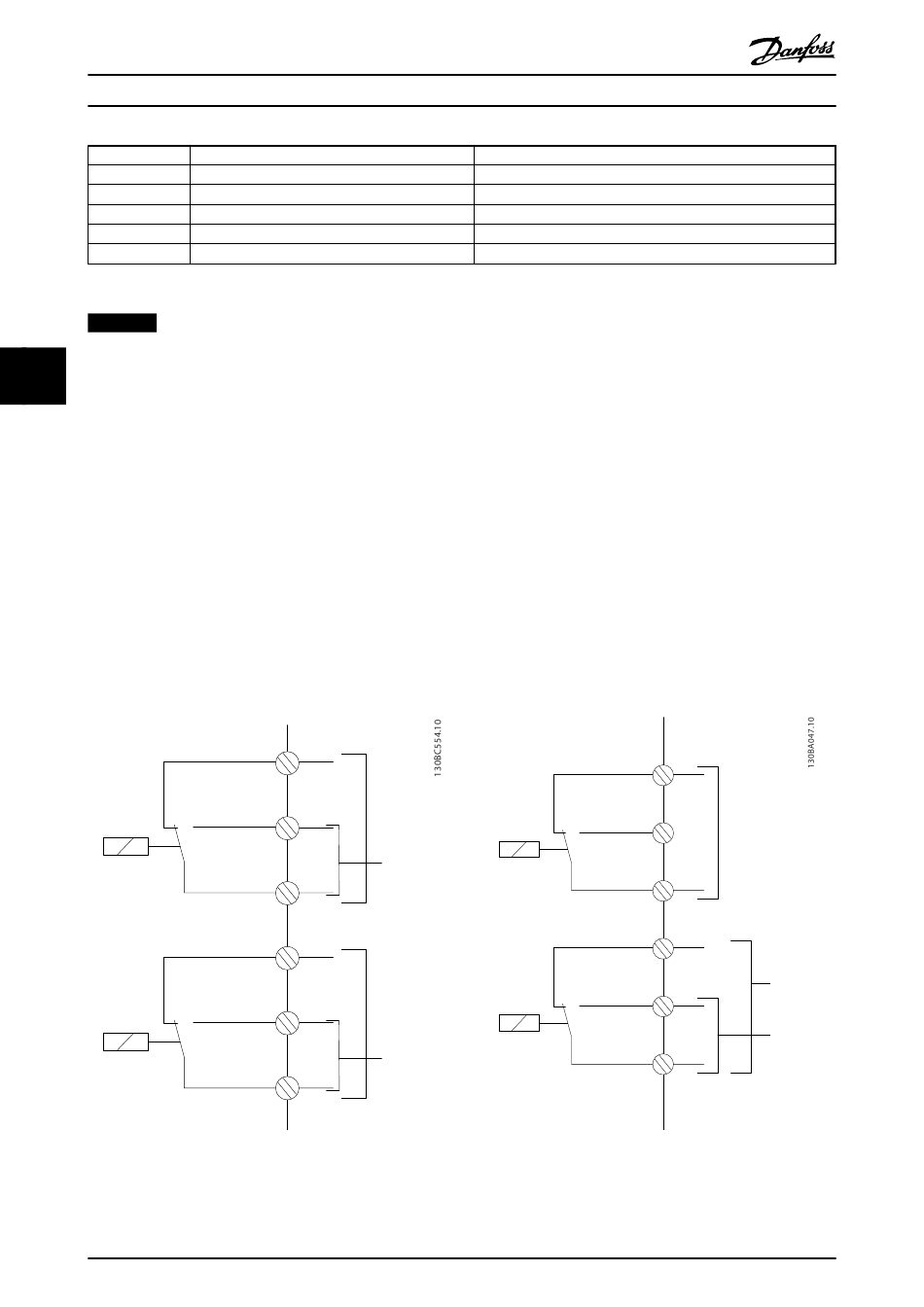

Illustration 5.92 D-Frame Additional Relay Outputs
132
Design Guide
Power & Voltage
P450-P500 380-500 V & P630-P800 525-690 V
P560 380-500 V
P630 380-500 V
P900 525-690 V
P710-P800 380-500 V & P1M2 525-690 V
03
240Vac, 2A
02
400Vac, 2A
01
06
240Vac, 2A
05
400Vac, 2A
04
Danfoss A/S © Rev. 06/2014 All rights reserved.
Contactor
Eaton XTCE650N22A
Eaton XTCE820N22A
Eaton XTCEC14P22B
Eaton XTCE820N22A
Eaton XTCEC14P22B
5.5.5 Relay Output E & F-Frame
Relay 1
•
Terminal 01: common
•
Terminal 02: normally open 240 V AC
•
Terminal 03: normally closed 240 V AC
Relay 2
•
Terminal 04: common
•
Terminal 05: normally open 400 V AC
•
Terminal 06: normally closed 240 V AC
Relay 1 and relay 2 are programmed in 5-40 Function Relay,
5-41 On Delay, Relay, and 5-42 Off Delay, Relay.
Use option module MCB 105 for additional relay outputs.
relay1
03
02
01
relay2
06
05
04
Illustration 5.93 E- and F-Frame Additional Relay Outputs
240Vac, 2A
240Vac, 2A
400Vac, 2A
MG20Z202
