3.2.3 Installation on Pedestal

This section describes the installation of a pedestal unit
available for the frequency converters frames D1h, D2h,
D5h, and D6h. The pedestal allows these frequency
3 3 converters to be floor mounted. The front of the pedestal
has openings for input air to the power components.
The frequency converter gland plate must be installed to
provide adequate cooling air to the control components of
the frequency converter and to maintain the IP21 (NEMA
1) or IP54 (NEMA 12) enclosure ratings.

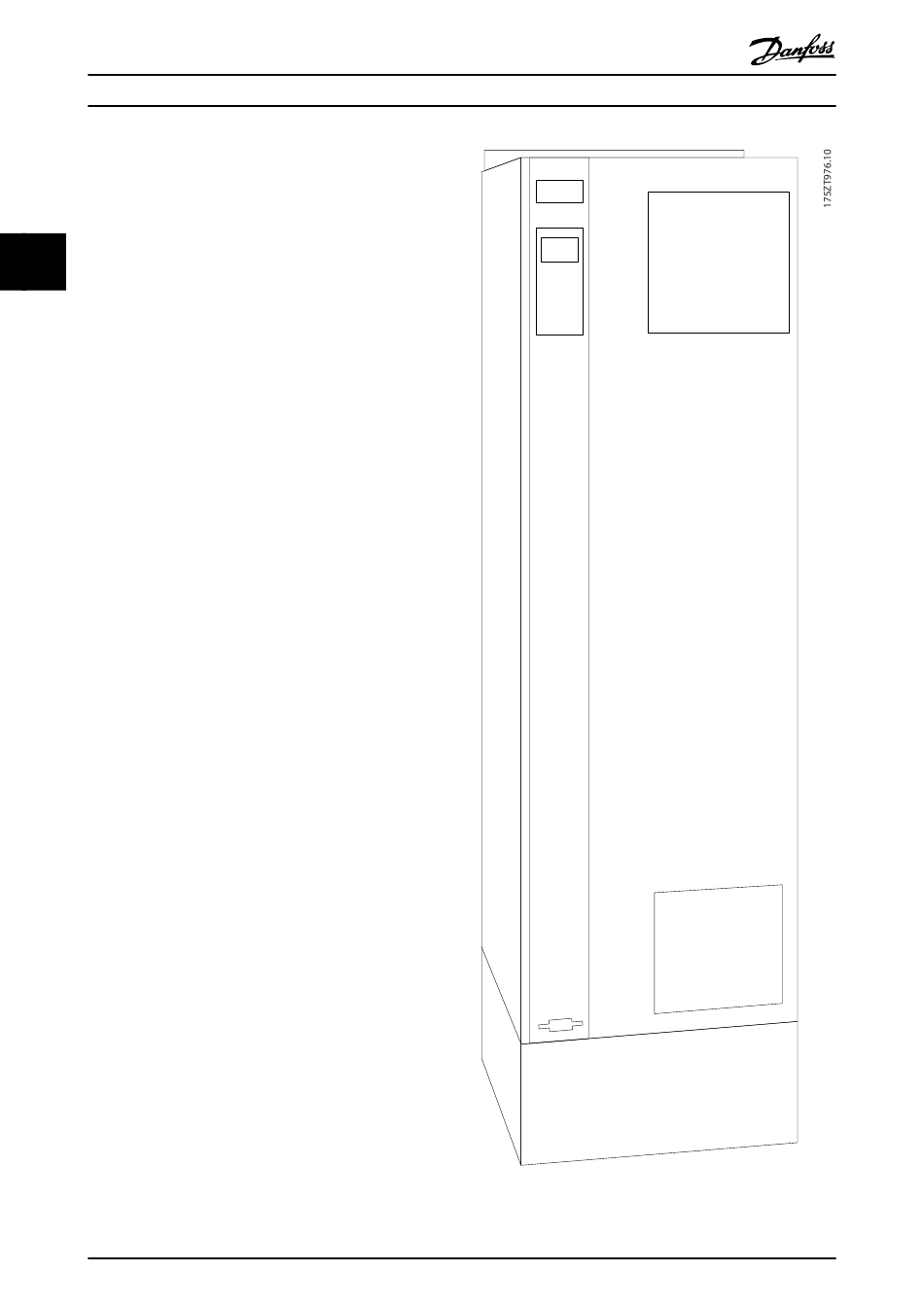

Illustration 3.16 Frequency Converter Mounted on a Pedestal
