5.2 Pre-installation

5.2.1 Planning the Installation Site

NOTICE
To avoid extra work during and after installation, it is
important to plan the installation of the frequency
converter in advance.
Select the best possible operation site by considering
the following:
5 5
•
Ambient operating temperature
•
Installation method
•
How to cool the unit
•
Position of the frequency converter
•
Cable routing
•
Ensure the power source supplies the correct
voltage and necessary current
•
Ensure that the motor current rating is within the
maximum current from the frequency converter
•
If the frequency converter is without built-in
fuses, ensure that the external fuses are rated
correctly.
78
Design Guide

5.2.2 Receiving the Frequency Converter

When receiving the frequency converter, make sure that
the packaging is intact, and be aware of any potential
damage to the unit during transport. If damage has
occurred, contact the shipping company immediately to
claim the damage.
Also, look at the nameplate as shown in Illustration 5.5 and
verify the order matches the information found on the
nameplate.

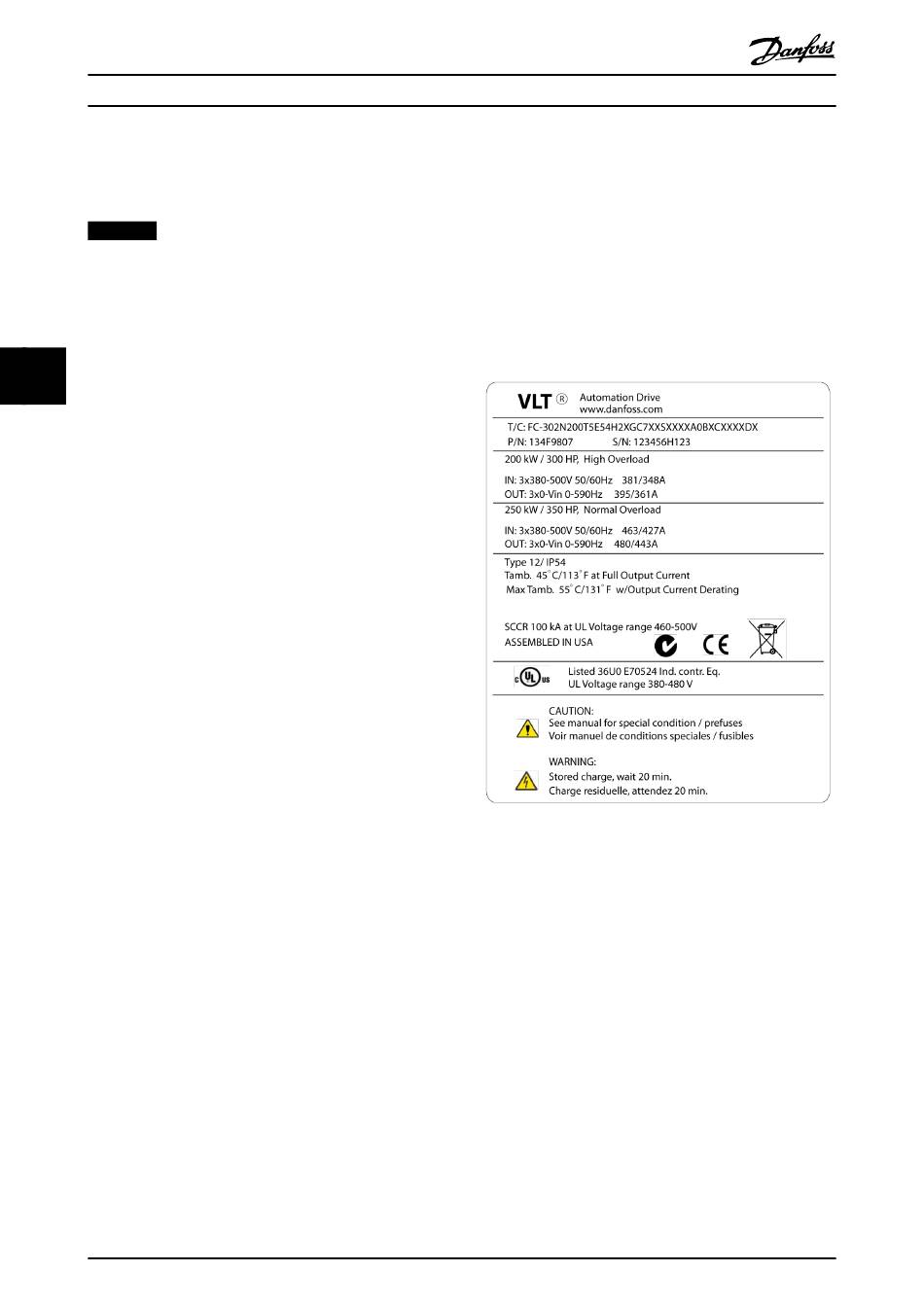

Illustration 5.5 Nameplate Label
