Selection
3.2.1 Installation of Back Channel Cooling
Kit in Rittal Enclosures
This section describes the installation of IP00/IP20/chassis
frequency converters with back channel cooling kits in
3 3 Rittal enclosures. In addition to the enclosure, a floor
mounting pedestal is required.
50
Design Guide

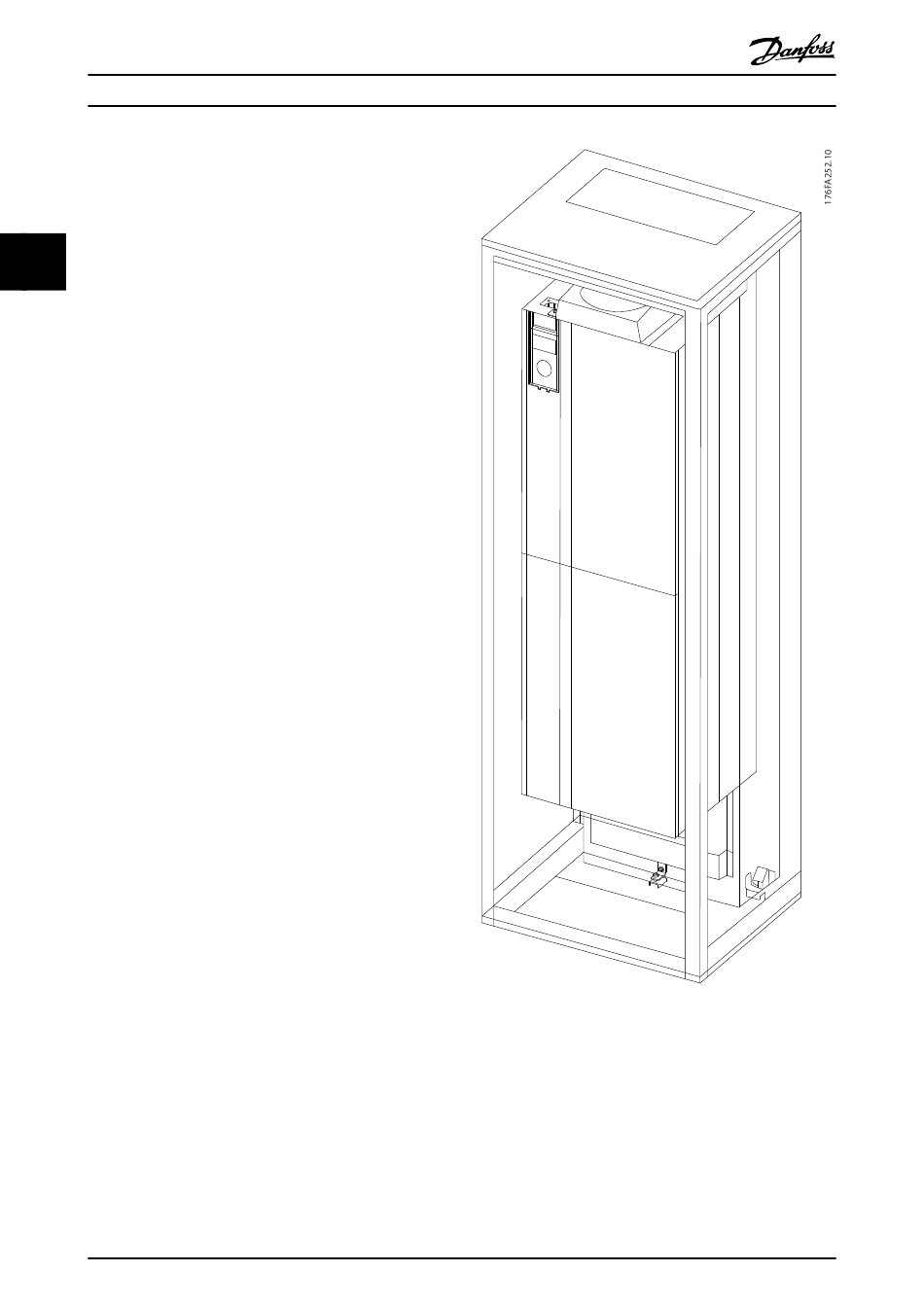

Illustration 3.14 Installation of IP00/IP20/Chassis in Rittal TS8
Enclosure.
The minimum enclosure dimension is:
Danfoss A/S © Rev. 06/2014 All rights reserved.
•
D3h frame: Depth 500 mm and width 400 mm
•
D4h frame: Depth 500 mm and width 600 mm.
•
E2 frame: Depth 600 mm and width 800 mm.
