Selection
The maximum depth and width must comply with the
installation requirements. When using multiple frequency
converters in one enclosure, mount each on its own back
panel and support each along the mid-section of the
panel. The back channel cooling kits do not support the
"in frame" mounting of the panel (see Rittal TS8 catalogue
for details). The cooling kits listed in Table 3.14 are suitable
for use only with IP00/IP20 chassis frequency converters in
Rittal TS-8 Enclosure
1,800 mm
2,000 mm
2,200 mm
Table 3.14 Ordering Information
See the Duct Kit Instruction Manual, 175R5640, for further
information regarding the E-frame kit.
External ducts
If more duct work is added externally to the Rittal cabinet
the pressure drop in the ducting must be calculated. See
chapter 5.2.7 Cooling and Airflow for further information.
3.2.2 Outside Installation/NEMA 3R Kit for
Rittal Enclosures

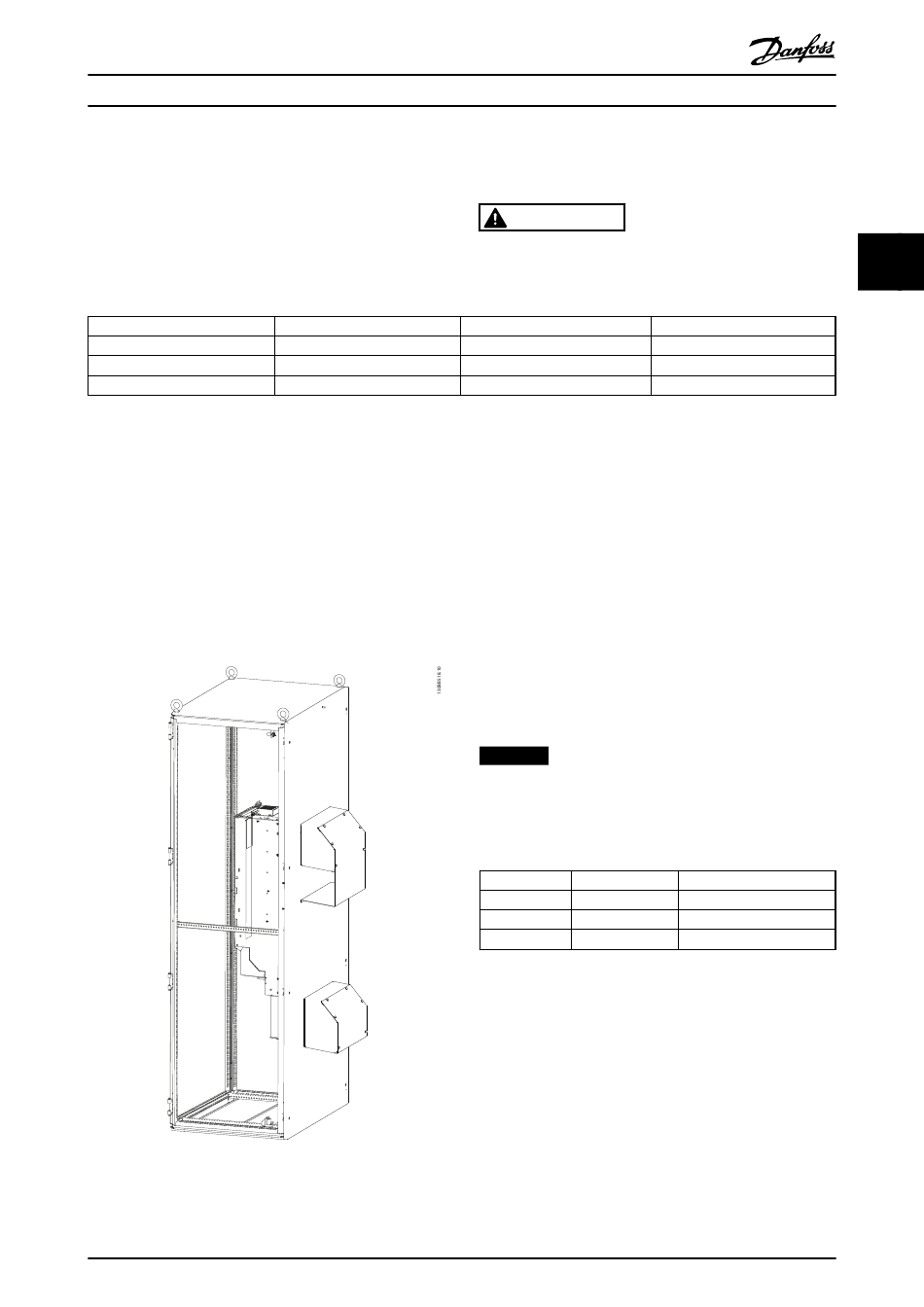

Illustration 3.15 Cutaway Side View of Cabinet
MG20Z202
Design Guide
Frame D3h Kit Part No.
176F3625
176F3629
Danfoss A/S © Rev. 06/2014 All rights reserved.
Rittal TS8 IP 20 and UL and NEMA 1 and IP 54 and UL and
NEMA 12 enclosures.
CAUTION
For the E2 frames, it is important to mount the plate at
the absolute rear of the Rittal enclosure due to the
weight of the frequency converter.
Frame D4hKit Part No.
176F3628
176F3630
This section is for the installation of NEMA 3R kits available
for the frequency converter frames D3h, D4h and E2. These
kits are designed and tested to be used with IP00/IP20/
Chassis versions of these frames in Rittal TS8 NEMA 3R or
NEMA 4 enclosures. The NEMA-3R enclosure is an outdoor
enclosure that provides a degree of protection against rain
and ice. The NEMA-4 enclosure is an outdoor enclosure
that provides a greater degree of protection against
weather and hosed water.
The minimum enclosure depth is 500 mm (600 mm for E2
frame) and the kit is designed for a 600 mm (800 mm for
E2 frame) wide enclosure. Other enclosure widths are
possible, however more Rittal hardware is required. Consult
the installation requirements for the maximum depth and
width.
NOTICE
The current rating of frequency converters in D3h and
D4h frames are de-rated by 3%, when adding the NEMA
3R kit. Frequency converters in E2 frames require no
derating.
Frame Size Part Number
D3h 176F3633
D4h 176F3634
E2 176F1852
Table 3.15 NEMA-3R Kit Ordering Information
Frame E2 Part No.
Not possible
176F1850
176F0299
Instruction Number
177R0460
177R0461
176R5922
