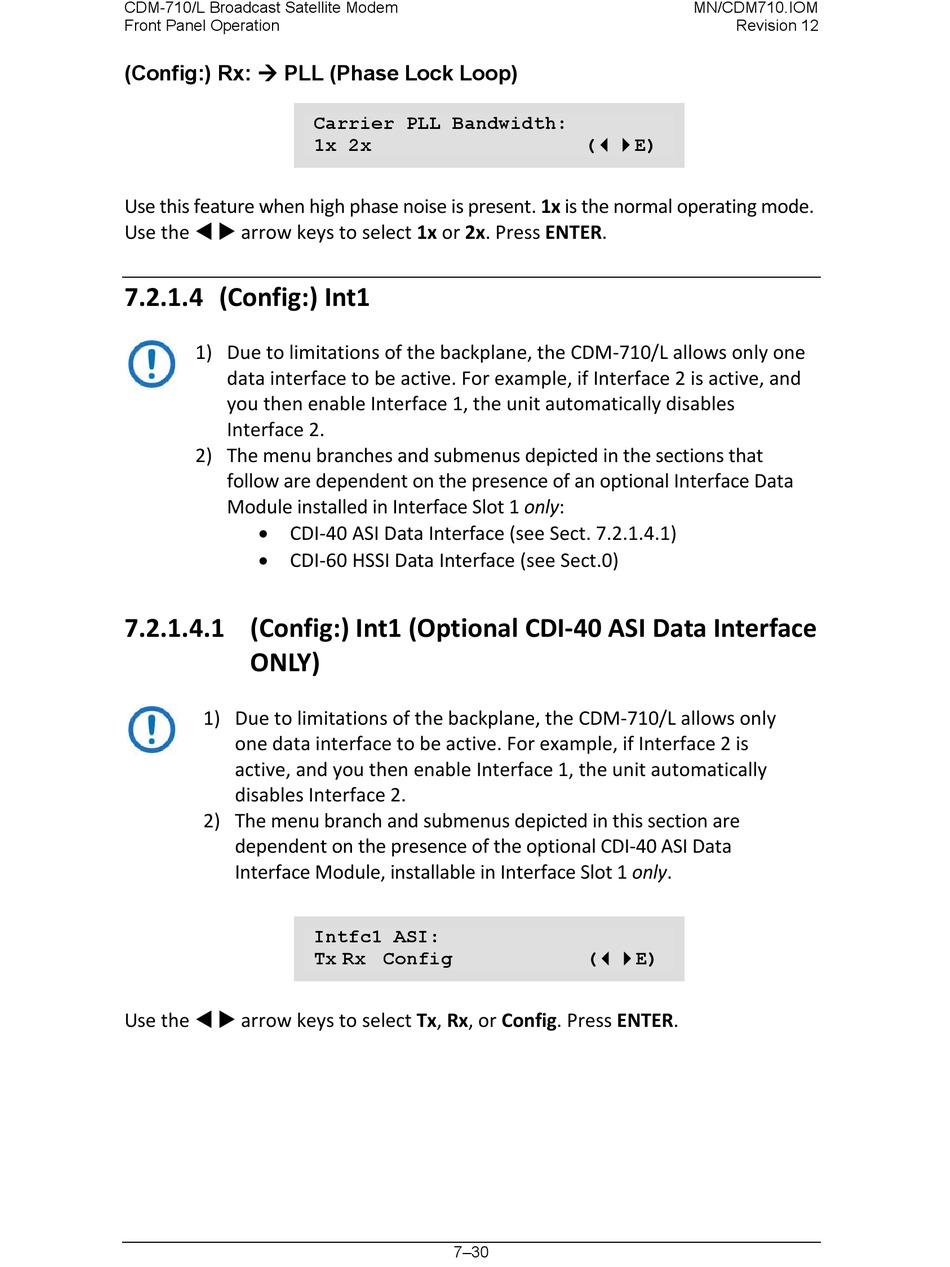

CDM-710/L Broadcast Satellite Modem
Front Panel Operation
(Config:) Rx:  PLL (Phase Lock Loop)
Use this feature when high phase noise is present. 1x is the normal operating mode.
Use the   arrow keys to select 1x or 2x. Press ENTER.

7.2.1.4 (Config:) Int1

1) Due to limitations of the backplane, the CDM-710/L allows only one
data interface to be active. For example, if Interface 2 is active, and
you then enable Interface 1, the unit automatically disables
Interface 2.
2) The menu branches and submenus depicted in the sections that
follow are dependent on the presence of an optional Interface Data
Module installed in Interface Slot 1 only:
• CDI-40 ASI Data Interface (see Sect. 7.2.1.4.1)
• CDI-60 HSSI Data Interface (see Sect.0)
7.2.1.4.1 (Config:) Int1 (Optional CDI-40 ASI Data Interface
ONLY)
1) Due to limitations of the backplane, the CDM-710/L allows only
one data interface to be active. For example, if Interface 2 is
active, and you then enable Interface 1, the unit automatically
disables Interface 2.
2) The menu branch and submenus depicted in this section are
dependent on the presence of the optional CDI-40 ASI Data
Interface Module, installable in Interface Slot 1 only.
Use the   arrow keys to select Tx, Rx, or Config. Press ENTER.
Carrier PLL Bandwidth:
1x 2x
Intfc1 ASI:
Tx Rx Config
7–30
MN/CDM710.IOM
Revision 12
