CDM-710/L Broadcast Satellite Modem
Introduction

1.3.4 Front Panel

The front panel USB 1.1 port is non-functional.
The unit front panel (Figure 1-5) provides the following features:
Item 1 – These handles ease removal and replacement of the chassis into the
user-provided rack enclosure.
Item 2 –Eight (8X) Light-Emitting Diode (LED) indicators convey operational
states as follows:
UNIT STATUS
• Lights GREEN when there are no Unit Faults or Alarms.
• Lights AMBER when there are no Unit Faults, but an Alarm exists.
• Lights RED when a Unit Faults exists (Example: PSU Fault).
Tx STATUS
• Lights GREEN when there are no Tx Traffic Faults or Alarms.
• Lights AMBER when a Tx Traffic Alarm exists.
• Lights RED when a Tx traffic Fault exists.
• Remains OFF when the transmitter is turned OFF (e.g., when the unit is
not configured as a Modulator).
Rx STATUS
• Lights GREEN when there are no Rx Traffic Faults or Alarms.
• Lights AMBER when an Rx Traffic Alarm exists.

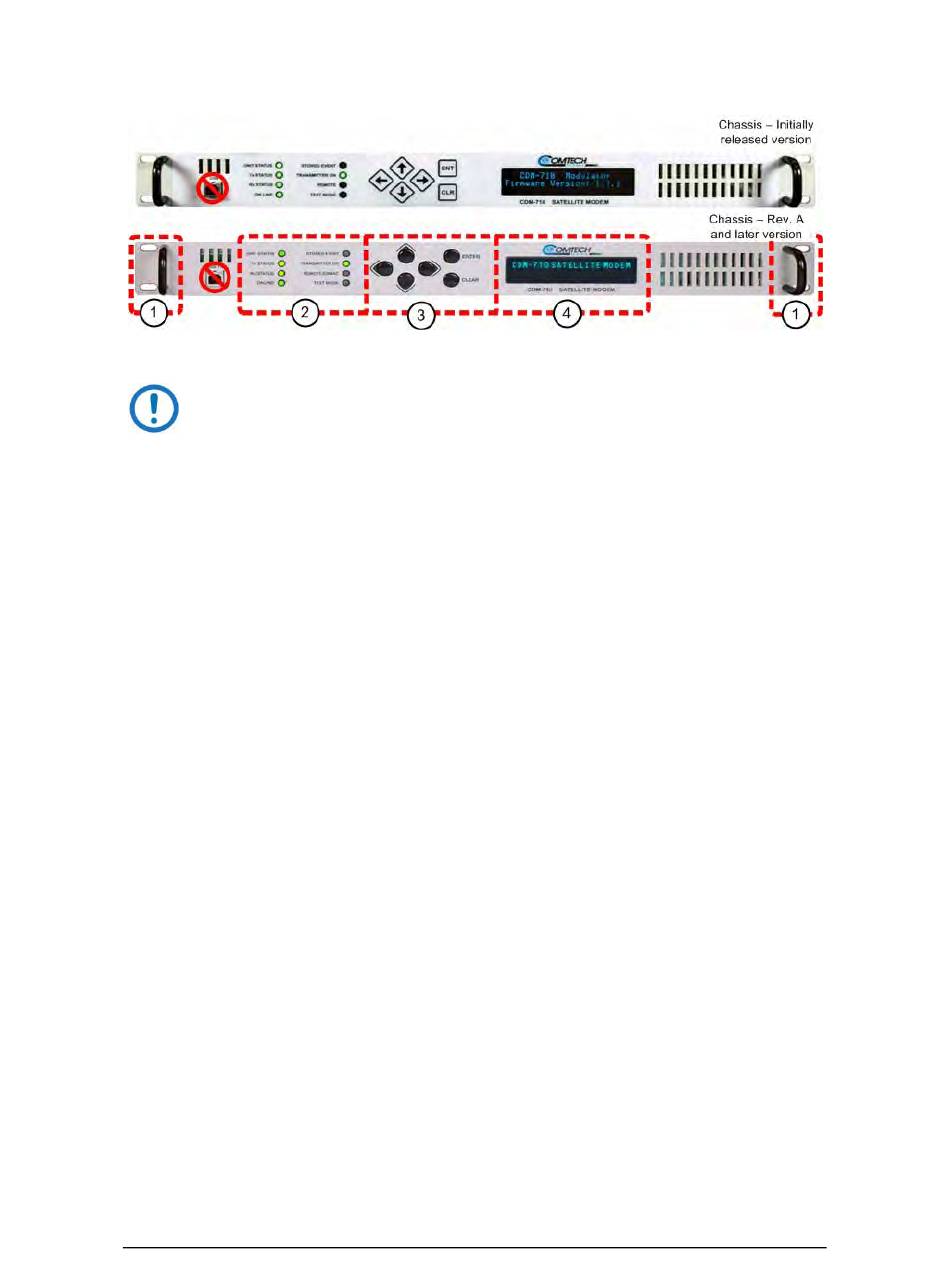

Figure 1-5. Front Panel View

1–11
MN/CDM710.IOM
Revision 12
