Comtech EF Data CDM-710 Installation And Operation Manual page 102

CDM-710/L Broadcast Satellite Modem

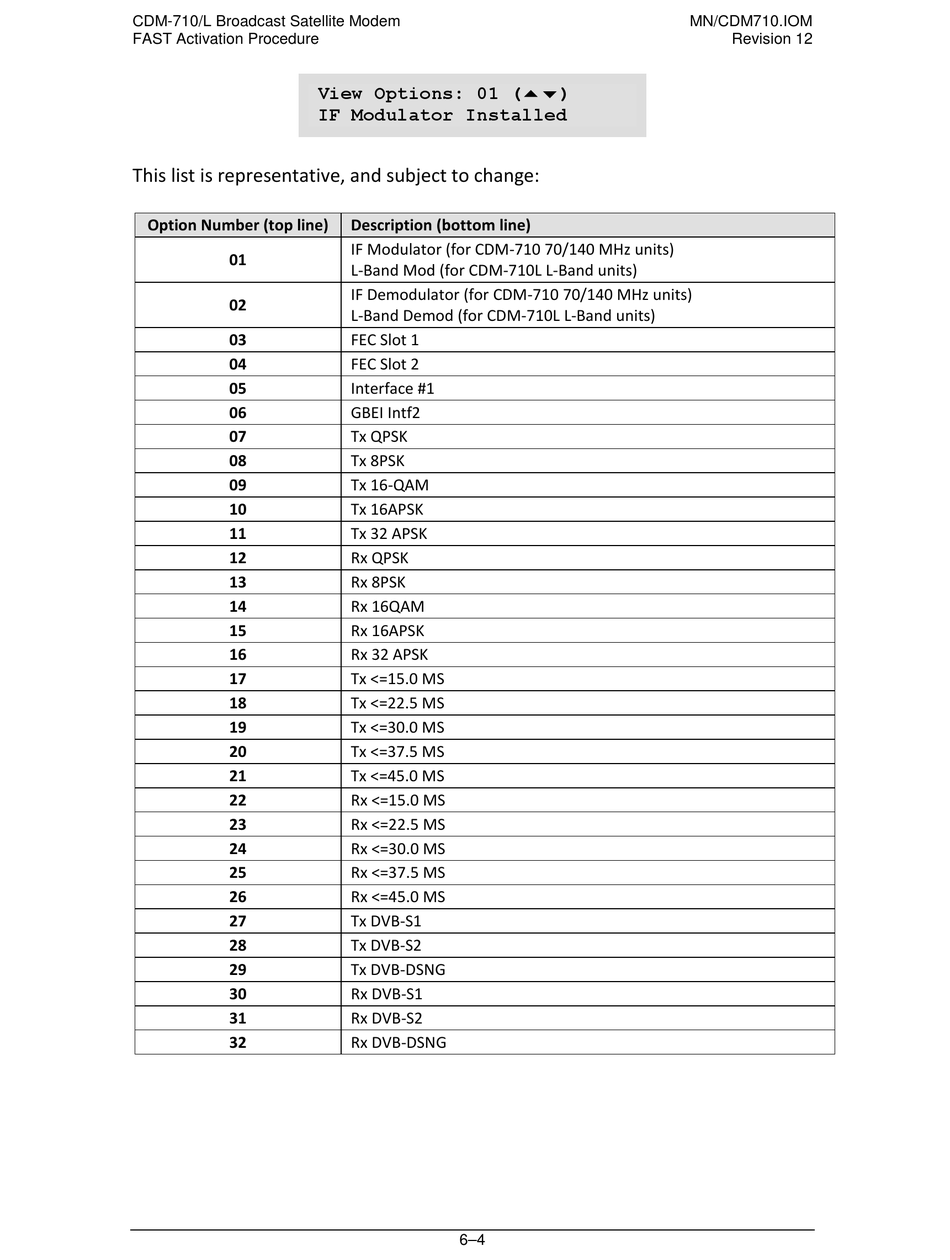

FAST Activation Procedure
This list is representative, and subject to change:
Option Number (top line)
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
View Options: 01 ()
IF Modulator Installed
Description (bottom line)
IF Modulator (for CDM-710 70/140 MHz units)
L-Band Mod (for CDM-710L L-Band units)
IF Demodulator (for CDM-710 70/140 MHz units)
L-Band Demod (for CDM-710L L-Band units)
FEC Slot 1
FEC Slot 2
Interface #1
GBEI Intf2
Tx QPSK
Tx 8PSK
Tx 16-QAM
Tx 16APSK
Tx 32 APSK
Rx QPSK
Rx 8PSK
Rx 16QAM
Rx 16APSK
Rx 32 APSK
Tx <=15.0 MS
Tx <=22.5 MS
Tx <=30.0 MS
Tx <=37.5 MS
Tx <=45.0 MS
Rx <=15.0 MS
Rx <=22.5 MS
Rx <=30.0 MS
Rx <=37.5 MS
Rx <=45.0 MS
Tx DVB-S1
Tx DVB-S2
Tx DVB-DSNG
Rx DVB-S1
Rx DVB-S2
Rx DVB-DSNG
6–4
MN/CDM710.IOM
Revision 12
