IDK MSD-701UHD Command Reference Manual

High-performance digital multi switchers
Hide thumbs Also See for MSD-701UHD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

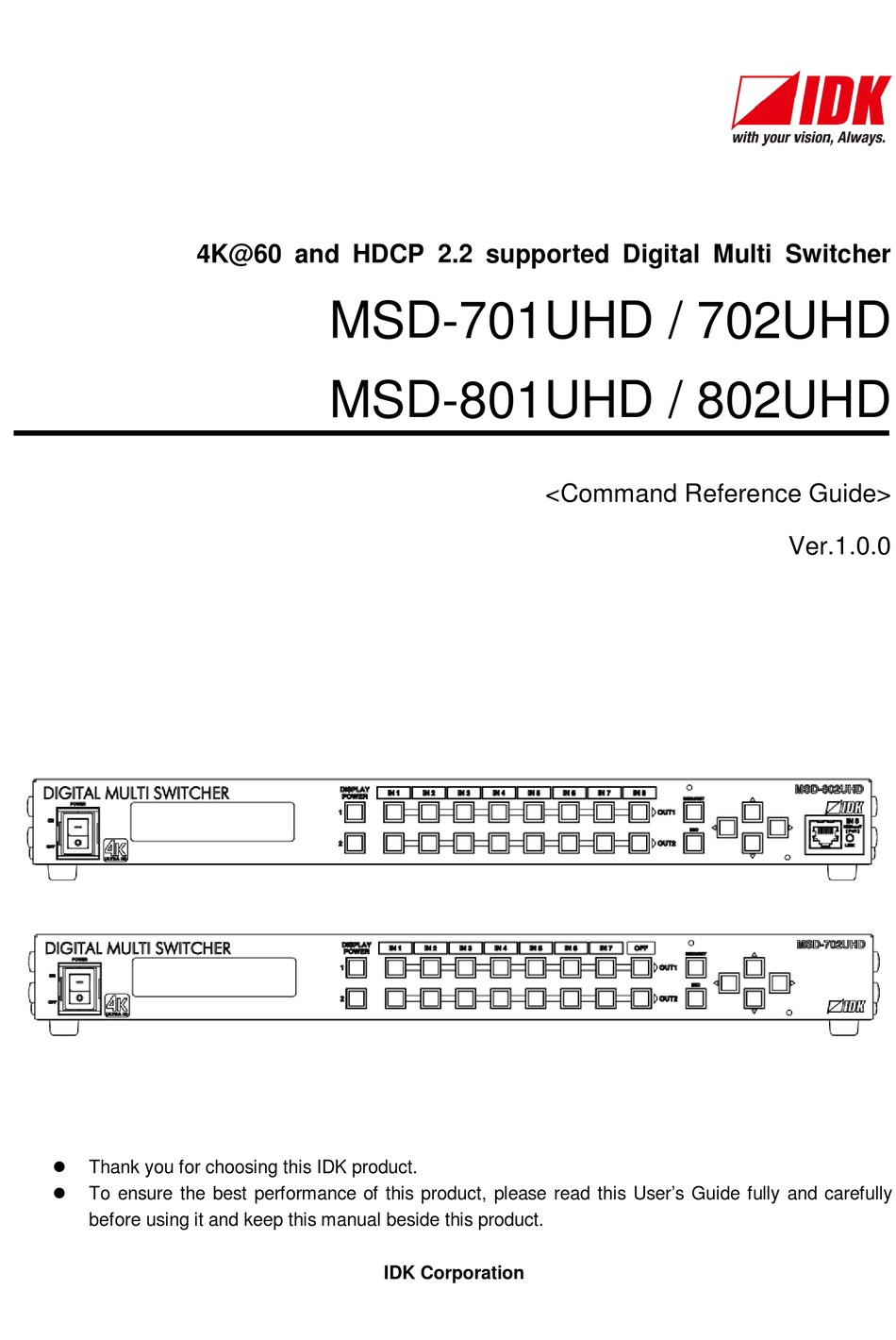

4K@60 and HDCP 2.2 supported Digital Multi Switcher
Thank you for choosing this IDK product.
To ensure the best performance of this product, please read this User's Guide fully and carefully
before using it and keep this manual beside this product.
MSD-701UHD / 702UHD
MSD-801UHD / 802UHD
IDK Corporation
<Command Reference Guide>
Ver.1.0.0

Advertisement

Table of Contents
loading

Related Manuals for IDK MSD-701UHD

Summary of Contents for IDK MSD-701UHD

  • Page 1 MSD-801UHD / 802UHD <Command Reference Guide> Ver.1.0.0  Thank you for choosing this IDK product.  To ensure the best performance of this product, please read this User’s Guide fully and carefully before using it and keep this manual beside this product.
  • Page 2 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide Trademarks  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. ...
  • Page 3 ● Some of the contents in this command guide such as product appearance in diagrams, menu operations, communication commands, and so on may differ from one NJR-CTB model to another. ● This command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Table Of Contents

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide Table of Contents About this Guide ........................... 5 Communication configuration and Specifications .................. 6 RS-232C communication ......................... 6 2.1.1 RS-232C connector specification ....................6 2.1.2 RS-232C communication specification..................6 2.1.3 Setting up RS-232C communication ..................7 LAN communication ........................

  • Page 5: About This Guide

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 1 About this Guide This guide contains the procedure for controlling the MSD-701UHD / 702UHD / 801UHD / 802UHD using commands via RS-232C communication or LAN communication. Since descriptions in this document are for MSD-802UHD, there may be slight differences between the model and other models.

  • Page 6: Communication Configuration And Specifications

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 2 Communication configuration and Specifications 2.1 RS-232C communication 2.1.1 RS-232C connector specification Fixes RS-232C cable to the provided 3-pin terminal block and then connect it to the MSD. AWG28 to AWG16 conductor gauge is recommended. The recommended wire strip length is 0.28 in. (7 mm).

  • Page 7: Setting Up Rs-232C Communication

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 2.1.3 Setting up RS-232C communication (1) Connect the MSD and the control device via an RS-232C cable. (2) Set the RS-232C communication as follows: ・RS-232C communication: baud rate, data bit length, parity check, and stop bit ・Operation mode of RS-232C communication: “RECEIVER”...

  • Page 8: Lan Communication

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 2.2 LAN communication 2.2.1 LAN connector specification It supports Auto MDI/MDI-X, which distinguishes/switches straight and cross cables automatically. Pin assignments of LAN connector: Lights in green while link is established. Lights in orange if the send/receive rate is 100 Mbps.

  • Page 9: Setting Up Lan Communication

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 2.2.3 Setting up LAN communication (1) Connect the MSD and the control device via a LAN cable. (2) Set up LAN communication as follows: ・Set IP address and subnet mask ・Operation mode of LAN communication: “RECEIVER”...

  • Page 10: The Number Of Tcp-Ip Connections

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 2.2.4 The number of TCP-IP connections The MSD series can connect up to eight connections (eight ports) simultaneously. If the MSD is controlled from nine or more PCs, they may not be connected to the MSD normally, since the number of connections that can be used is limited.

  • Page 11: Command

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3 Command 3.1 Command outline A command consists of “@” (“40” in hexadecimal), 3 one-byte alphabetical characters (upper and lower cases), and parameters (one-byte numbers ). For some commands, several parameters can be specified or no parameter is required.

  • Page 12: Command List

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.2 Command list ■ Error status Command Function Page @ERR Error status ■ Input channels Command Function Page @GSW / @SSW Switching video and audio channel simultaneously @GSV / @SSV Switching video channel...
  • Page 13 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide ■ Image quality Command Function Page @GFL / @SFL Sharpness @GBR / @SBR Input brightness @GCO / @SCO Input contrast @GHU / @SHU @GST / @SST Saturation @GSU / @SSU Black level...
  • Page 14 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide ■ Output settings Command Function Page @GDM / @SDM Output mode @GUY / @SUY Synchronous signal output when no video signal is input @GBO / @SBO Output video when no video signal is not input...
  • Page 15 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide ■ EDID Command Function Page @GED / @SED EDID @GVF / @SVF Input resolution for PC @GHF / @SHF Input resolution for AV devices @GDI / @SDI Deep Color input @GAF / @SAF...
  • Page 16 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide ■ Preset memory Command Function Page @RCM Loading crosspoint memory @SCM / @SEM Saving channels to crosspoint memory @GCM / @ECM Editing crosspoint memory @RCV Loading crosspoint memory (setting video channel) @SCV / @SEV...

  • Page 17: Detailed Descriptions

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3 Detailed descriptions Commands for MSD-802UHD are shown in this section. For other models, use appropriate commands according to the number of inputs and outputs. 3.3.1 Error status @ERR Error status Description Response in case the command is not executed.

  • Page 18: Input Channels

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.2 Input channels @GSW / @SSW Switching video and audio channel simultaneously Getting Command @GSW Response @GSW, video_1, audio_1, video_2, audio_2, Setting Command @SSW, input_1, output_1 (, input_2, output_2) Response @SSW, input_1, output_1 (, input_2, output_2)
  • Page 19 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GSV / @SSV Switching video channel Getting Command @GSV Response @GSV, input_1, input_2 Setting Command @SSV, input_1, output_1 (, input_2, output_2) Response @SSV, input_1, output_1 (, input_2, output_2) Parameter input_1-2: Video input channel...

  • Page 20: Position, Size, And Masking

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.3 Position, size, and masking @GOT / @SOT Output resolution Getting Command @GOT Response @GOT, resolution_1, resolution_2 Setting Command @SOT, ch_1, resolution_1 (, ch_2, resolution_2) Response @SOT, ch_1, resolution_1 (, ch_2, resolution_2)
  • Page 21 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GTD Actual output resolution Getting Command @GTD Response @GTD, resolution_1, resolution_2 Parameter resolution_1-2: Actual output resolution 2 = VGA@60 (640x480), 3 = SVGA@60 (800x600), 4 = XGA@60 (1024x768), 5 = WXGA@60 (1280x768),...
  • Page 22 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GUM / @SUM Aspect ratio of sink device Getting Command @GUM Response @GUM, aspect_1, aspect_2 Setting Command @SUM, ch_1, aspect_1 (, ch_2, aspect_2) Response @SUM, ch_1, aspect_1 (, ch_2, aspect_2) Parameter aspect_1-2: Aspect ratio of sink device...
  • Page 23 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GAR / @SAR Aspect ratio restoration Getting Command @GAR Response @GAR, mode_1, mode_2, mode_3, mode_4, mode_5, mode_6, mode_7, mode_8 Setting Command @SAR, ch_1, mode_1 (, ch_2, mode_2･･･) Response @SAR, ch_1, mode_1 (, ch_2, mode_2･･･)
  • Page 24 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GNP / @SNP Input position Getting Command @GNP Response @GNP, h_position_1, v_position_1, h_position_2, v_position_2･･･, h_position_8, v_position_8 Setting Command @SNP, ch_1, h_position_1, v_position_1 (, ch_2, h_position_2, v_position_2･･･) Response @SNP, ch_1, h_position_1, v_position_1 (, ch_2, h_position_2, v_position_2･･･)
  • Page 25 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GNS / @SNS Input size Getting Command @GNS Response @GNS, h_size_1, v_size_1, h_size_2, v_size_2･･･, h_size_8, v_size_8 Setting Command @SNS, ch_1, h_size_1, v_size_1 (, ch_2, h_size_2, v_size_2･･･) Response @SNS, ch_1, h_size_1, v_size_1 (, ch_2, h_size_2, v_size_2･･･)
  • Page 26 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GNM / @SNM Input masking Getting Command @GNM, ch Response @GNM, ch, left, right, top, bottom Setting Command @SNM, ch, left, right, top, bottom Response @SNM, ch, left, right, top, bottom Parameter...
  • Page 27 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GOP / @SOP Output position Getting Command @GOP Response @GOP, h_position_1, v_position_1, h_position_2, v_position_2, Setting Command @SOP, ch_1, h_position_1, v_position_1 (, ch_2, h_position_2, v_position_2) Response @SOP, ch_1, h_position_1, v_position_1 (, ch_2, h_position_2, v_position_2)
  • Page 28 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GOM / @SOM Output masking Getting Command @GOM, ch Response @GOM, ch, left, right, top, bottom Setting Command @SOM, ch, left, right, top, bottom Response @SOM, ch, left, right, top, bottom Parameter...
  • Page 29 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GBC / @SBC Background color Getting Command @GBC, ch Response @GBC, ch, red, green, blue Setting Command @SBC, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2) Response @SBC, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2)
  • Page 30 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GTP / @STP Test pattern Getting Command @GTP Response @GTP, pattern_1, scroll_1, pattern_2, scroll_2 Setting Command @STP, ch_1, pattern_1, scroll_1 (, ch_2, pattern_2, scroll_2) Response @STP, ch_1, pattern_1, scroll_1 (, ch_2, pattern_2, scroll_2)

  • Page 31: Image Quality

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.4 Image quality @GFL / @SFL Sharpness Getting Command @GFL Response @GFL, sharp_1, sharp_2, sharp_3, sharp_4, sharp_5, sharp_6, sharp_7, sharp_8 Setting Command @SFL, ch_1, sharp_1 (, ch_2, sharp_2) Response @SFL, ch_1, sharp_1 (, ch_2, sharp_2)
  • Page 32 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GCO / @SCO Input contrast Getting Command @GCO, ch Response @GCO, ch, red, green, blue Setting Command @SCO, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2) Response @SCO, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2)
  • Page 33 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GST / @SST Saturation Getting Command @GST Response @GST, saturation_1, saturation_2, saturation_3, saturation_4, saturation_5, saturation_6, saturation_7, saturation_8 Setting Command @SST, ch_1, saturation_1 (, ch_2, saturation_2) Response @SST, ch_1, saturation_1 (, ch_2, saturation_2)
  • Page 34 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @IDC Input default color Setting Command @IDC, ch_1 (, ch_2･･･) Response @IDC, ch_1 (, ch_2･･･) Parameter ch_1-8: Input channel 0 = All inputs, 1 = IN1 to 8= IN8 Setting Command @IDC,1...
  • Page 35 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GOC / @SOC Output contrast Getting Command @GOC, ch Response @GOC, ch, red, green, blue Setting Command @SOC, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2) Response @SOC, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2)

  • Page 36: Input Settings

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @ODC Output default color Setting Command @ODC, ch_1 (, ch_2) Response @ODC, ch_1 (, ch_2) Parameter ch_1-2: Output channel 0 = All outputs, 1 = OUT1, 2 = OUT2 Setting Command @ODC,1...
  • Page 37 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GHE / @SHE HDCP input enabled/disabled Getting Command @GHE Response @GHE, hdcp_1, hdcp_2, hdcp_3, hdcp_4, hdcp_5, hdcp_6, hdcp_7, hdcp_8 Setting Command @SHE, ch_1, hdcp_1 (, ch_2, hdcp_2) Response @SHE, ch_1, hdcp_1 (, ch_2, hdcp_2)
  • Page 38 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GID / @SID Automatic detection of input video interruption Getting Command @GID Response @GID, detect_1, detect_2, detect_3, detect_4, detect_5, detect_6, detect_7, detect_8 Setting Command @SID, ch_1, detect_1 (, ch_2, detect_2) Response @SID, ch_1, detect_1 (, ch_2, detect_2)
  • Page 39 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GIA / @SIA HDBaseT input long reach mode Getting Command @GIA, ch Response @GIA, ch, mode Setting Command @SIA, ch, mode Response @SIA, ch, mode Parameter ch: Input channel 8 = IN8 Make sure to set this menu to “8”.
  • Page 40 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GFX / @SFX Fixing settings for input signal Getting Command @GFX ch Response @GFX, ch, mode (, aspect, analog, audio) Setting Command @SFX, ch, mode (, aspect, analog, audio) Response @SFX, ch, mode (, aspect, analog, audio)

  • Page 41: Input Timing

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.6 Input timing @AIS / @AIT Automatic measurement Setting Description Starting automatic measurement of the start position and display period. Command @AIS, ch Response @AIS, ch Setting Description Starting automatic measurement with a desired aspect ratio.
  • Page 42 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GHT / @SHT The total number of horizontal dots Getting Command @GHT Response @GHT, h_total_1, h_total_2, h_total_3, h_total_4, h_total_5, h_total_6, h_total_7, h_total_8 Setting Command @SHT, ch, h_total Response @SHT, ch, h_total Parameter...
  • Page 43 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GHS / @SHS Horizontal start position Getting Command @GHS Response @GHS, h_start_1, h_start_2, h_start_3, h_start_4, h_start_5, h_start_6, h_start_7, h_start_8 Setting Command @SHS, ch, h_start Response @SHS, ch, h_start Parameter h_start_1-8/ h_start: Horizontal start position 64 to 2900 (should be [the total number of horizontal dots –...
  • Page 44 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GHD / @SHD Horizontal display period Getting Command @GHD Response @GHD, h_disp_1, h_disp_2, h_disp_3, h_disp_4, h_disp_5, h_disp_6, h_disp_7, h_disp_8 Setting Command @SHD, ch, h_disp Response @SHD, ch, h_disp Parameter h_disp_1-8 / h_disp: Horizontal display period...
  • Page 45 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GVS / @SVS Vertical start position Getting Command @GVS Response @GVS, v_start_1, v_start_2, v_start_3, v_start_4, v_start_5, v_start_6, v_start_7, v_start_8 Setting Command @SVS, ch, v_start Response @SVS, ch, v_start Parameter v_start_1-8/ v_start: Vertical start position...
  • Page 46 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GVD / @SVD Vertical display period Getting Command @GVD Response @GVD, v_disp_1, v_disp_2, v_disp_3, v_disp_4, v_disp_5, v_disp_6, v_disp_7, v_disp_8 Setting Command @SVD, ch, v_disp Response @SVD, ch, v_disp Parameter v_disp_1-8/ v_disp: Vertical display period...
  • Page 47 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GIS / @SIS Automatic measurement of start position Getting Command @GIS Response @GIS, mode_1, mode_2 Setting Command @SIS, ch, mode Response @SIS, ch, mode Parameter mode_1-2 / mode: Automatic measurement 0 = All inputs from this input channel are not measured automatically.
  • Page 48 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @RTT Loading device data Setting Command @RTT, ch (, table) Response @RTT, ch (, table) Parameter ch: Input channel 1 = IN1 to 8 = IN8 table: Device table 1 to 99 (Registered device data), 100 to 100+n (Preset device data.
  • Page 49 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GTK / @STK Tracking Getting Command @GTK Response @GTK, track_1, track_2 Setting Command @STK, ch_1, track_1 (, ch_2 , track_2) Response @STK, ch_1, track_1 (, ch_2 , track_2) Parameter track_1-2: Tracking 0 to 63 [Default] 0...

  • Page 50: Output Settings

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.7 Output settings @GDM / @SDM Output mode Getting Command @GDM Response @GDM, mode_1, mode_2, mode_3, mode_4 Setting Command @SDM, ch_1, mode_1 (, ch_2, mode_2･･･) Response @SDM, ch_1, mode_1 (, ch_2, mode_2･･･)
  • Page 51 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GBO / @SBO Output video when no video signal is not input Getting Command @GBO Response @GBO, video_1, video_2 Setting Command @SBO, ch_1, video_1 (, ch_2, video_2) Response @SBO, ch_1, video_1 (, ch_2, video_2)
  • Page 52 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GFT / @SFT Video switching speed Getting Command @GFT Response @GFT, time_1, time_2 Setting Command @SFT, ch_1, time_1 (, ch_2, time_2) Response @SFT, ch_1, time_1 (, ch_2, time_2) Parameter time_1-2: Switching speed 100 = 0.1 sec.
  • Page 53 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GVO / @SVO Vidoe output connector Getting Command @GVO Response @GVO, out_1A, out_1B, out_2A, out_2B Setting Command @SVO, ch_1, out_1 (, ch_2, out_2･･･) Response @SVO, ch_1, out_1 (, ch_2, out_2･･･) Parameter out_1A / out_2A : OUTA video output...
  • Page 54 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GHR / @SHR The number of HDCP retries Getting Command @GHR Response @GHR, retry_1, retry_2, retry_3, retry_4 Setting Command @SHR, ch_1, retry_1 (, ch_2, retry_2, ch_3, retry_3, ch_4, retry_4) Response @SHR, ch_1, retry_1 (, ch_2, retry_2, ch_3, retry_3, ch_4, retry_4)
  • Page 55 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GCE / @SCE CEC connection Getting Command @GCE Response @GCE, connect_1, connect_2, connect_3, connect_4 Setting Command @SCE, ch_1, connect_1 (, ch_2, connect_2, ch_3, connect_3, ch_4, connect_4 ) Response @SCE, ch_1, connect_1 (, ch_2, connect_2, ch_3, connect_3, ch_4, connect_4 )
  • Page 56 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GAU / @SAU Priority of input channel automatic switching (OFF to ON) Getting Command @GAU, out Response @GAU, out, in1_priority, in2_priority, in3_priority, in4_priority, in5_priority, in6_priority, in7_priority, in8_priority Setting Command @SAU, out_1, in1_priority, in2_priority･･･, in8_priority (, out_2, in1_priority･･･) Response @SAU, out_1, in1_priority, in2_priority･･･, in8_priority (, out_2, in1_priority･･･)
  • Page 57 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GOF / @SOF Priority of input channel automatic switching (ON to OFF) Getting Command @GOF, out Response @GOF, out, in1_priority, in2_priority, in3_priority, in4_priority, in5_priority, in6_priority, in7_priority, in8_priority Setting Command @SOF, out_1, in1_priority, in2_priority･･･, in8_priority (, out_2, in1_priority･･･) Response @SOF, out_1, in1_priority, in2_priority･･･, in8_priority (, out_2, in1_priority･･･)
  • Page 58 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GAD / @SAD Channel switching mode for input channel automatic switching Getting Command @GAD Response @GAD, mode_1, mode_2 Setting Command @SAD, ch_1, mode_1 (, ch_2, mode_2) Response @SAD, ch_1, mode_1 (, ch_2, mode_2)

  • Page 59: Audio

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.8 Audio @GSL / @SSL Audio output level Getting Command @GSL Response @GSL, level_1, level_2 Setting Command @SSL, ch_1, level_1 (, ch_2, level_2) Response @SSL, ch_1, level_1 (, ch_2, level_2) Parameter level_1-2: Audio output level...
  • Page 60 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GOL Limit status of audio output level Getting Command @GOL Response @GOL, out_1, out_2 Parameter out_1-2: Limit status of audio output level -1 = minimum settable value (-60 dB), 0 = not limit status,...
  • Page 61 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GAS / @SAS Selecting audio input Getting Command @GAS Response @GAS, select_1, select_2, select_3, select_4, select_5, select_6, select_7, select_8 Setting Command @SAS, ch_1, select_1 (, ch_2, select_2･･･) Response @SAS, ch_1, select_1 (, ch_2, select_2･･･)
  • Page 62 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @SIL Relative value of audio input level Setting Command @SIL, ch_1, updown_1 (, ch_2, updown_2･･･) Response @SIL, ch_1, updown_1 (, ch_2, updown_2･･･) Parameter ch_1-8: Input channel 0 = All inputs, 1 = IN1 to 8 = IN8...
  • Page 63 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GLY / @SLY Input lip sync Getting Command @GLY Response @GLY, frame_1, frame_2, frame_3, frame_4, frame_5, frame_6, frame_7, frame_8 Setting Command @SLY, ch_1, frame_1 (, ch_2, frame_2･･･) Response @SLY, ch_1, frame_1 (, ch_2, frame_2･･･)
  • Page 64 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GFD Actual sampling frequency Getting Command @GFD Response @GFD, frequency_1, frequency_2 Parameter frequency_1-2: Sampling frequency 2 = 32 kHz, 3 = 44.1 kHz, 4 = 48 kHz, 5 = 88.2 kHz, 6 = 96 kHz,...
  • Page 65 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GAO / @SAO Digital audio output connector Getting Command @GAO Response @GAO, out_1A, out_1B, out_2A , out_2B Setting Command @SAO, ch_1, out_1 (, ch_2, out_2･･･) Response @SAO, ch_1, out_1 (, ch_2, out_2･･･)
  • Page 66 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GCH / @SCH Priority of multi channel audio output Getting Command @GCH Response @GCH, out_1, out_2 Setting Command @SCH, ch_1, out_1 (, ch_2, out_2) Response @SCH, ch_1, out_1 (, ch_2, out_2) Parameter...

  • Page 67: Edid

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.9 EDID @GED / @SED EDID Getting Command @GED Response @GED, edid_1, edid_2, edid_3, edid_4, edid_5, edid_6, edid_7, edid_8 Setting Command @SED, ch_1, edid_1 (, ch_2, edid_2･･･) Response @SED, ch_1, edid_1 (, ch_2, edid_2･･･)
  • Page 68 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GVF / @SVF Input resolution for PC Getting Command @GVF Response @GVF, resolution_1, resolution_2, resolution_3, resolution_4, resolution_5, resolution_6, resolution_7, resolution_8 Setting Command @SVF, ch_1, resolution_1 (, ch_2, resolution_2･･･) Response @SVF, ch_1, resolution_1 (, ch_2, resolution_2･･･)
  • Page 69 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GHF / @SHF Input resolution for AV devices Getting Command @GHF Response @GHF, resolution_1, resolution_2, resolution_3, resolution_4, resolution_5, resolution_6, resolution_7, resolution_8 Setting Command @SHF, ch_1, resolution_1 (, ch_2, resolution_2･･･) Response @SHF, ch_1, resolution_1 (, ch_2, resolution_2･･･)
  • Page 70 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GDI / @SDI Deep Color input Getting Command @GDI Response @GDI, color_1, color_2, color_3, color_4, color_5, color_6, color_7, color_8 Setting Command @SDI, ch_1, color_1 (, ch_2, color_2･･･) Response @SDI, ch_1, color_1 (, ch_2, color_2･･･)
  • Page 71 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GAF / @SAF Audio format Getting Command @GAF, ch Response @GAF, ch, format_1, frequency_1 (, format_2, frequency_2･･･) Setting Command @SAF, ch, format_1, frequency_1 (, format_2, frequency_2･･･) Response @SAF, ch, format_1, frequency_1 (, format_2, frequency_2･･･)
  • Page 72 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GSP / @SSP The number of speakers Getting Command @GSP, ch Response @GSP, ch, number, speaker_1 (, speaker_2･･･) Setting Command @SSP, ch, number (, speaker_1, speaker_2･･･) Response @SSP, ch, number (, speaker_1, speaker_2･･･)
  • Page 73 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GSP / @SSP The number of speakers (cont’d) Getting Command @GSP,1 example Response @GSP,1,6,0,1,2,3 Description Getting the IN1 speaker configuration. Six speakers (Front Left / Right, Low Frequency Effect, Front Center, Rear Left / Right) are used.

  • Page 74: Rs-232C Communication

    Description Setting RS-232C as follows: baud rate = 19200 [bps], data bit length = 8 [bit], parity check = NONE, stop bit = 1 [bit]. Remarks For 1-output models (MSD-701UHD and MSD-801UHD), out_2B cannot be set. For 7-input models (MSD-701UHD and MSD-702UHD), “in8” cannot be set. “-1” will be sent when these commands are gotten.
  • Page 75 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide [Table 3.1] Parameter of RS-232C communication settings Value Communication Value Communication Value Communication Value Communication 4800 8 NONE 1 9600 8 NONE 1 19200 8 NONE 1 38400 8 NONE 1 4800...
  • Page 76 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GCD / @SCD RS-232C transmission between control devices Getting Command @GCD Response @GCD, mode Setting Command @SCD, mode Response @SCD, mode Parameter mode: RS-232C transmission 0 = OFF [Default], RS-232C connector operates in the mode set in “@GCF / @SCF RS-232C communication mode”.

  • Page 77: Lan Communication

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.11 LAN communication @GIP / @SIP IP address Getting Command @GIP Response @GIP, unit_1, unit_2, unit_3, unit_4 Setting Command @SIP, unit_1, unit_2, unit_3, unit_4 Response @SIP, unit_1, unit_2, unit_3, unit_4 Parameter unit_1: Upper bit of the IP address to unit to unit_4: lower bit of the IP address 0 to 255 = 8 bit (Decimal notation) [Default] 192.168.1.199...
  • Page 78 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GGW / @SGW Gateway address Getting Command @GGW Response @GGW, unit_1, unit_2, unit_3, unit_4 Setting Command @SGW, unit_1, unit_2, unit_3, unit_4 Response @SGW, unit_1, unit_2, unit_3, unit_4 Parameter unit_1: Upper bit of the gateway address to unit_4: lower bit of the gateway address 0 to 255 = 8 bit (Decimal notation) [Default] 192.168.1.200...
  • Page 79 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GLF / @SLF LAN communication mode Getting Command @GLF, connection Response @GLF, connection, mode (, ip_1, ip_2, ip_3, ip_4, pjlink, tcp, password) Setting Command @SLF, connection, mode (, ip_1, ip_2, ip_3, ip_4, pjlink, tcp, password)
  • Page 80 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GLP / @SLP TCP port number Getting Command @GLP Response @GLP, port_1, port_2, port_3, port_4, port_5, port_6, port_7, port_8 Setting Command @SLP, connection_1, port_1 (, connection_2, port_2･･･) Response @SLP, connection_1, port_1 (, connection_2, port_2･･･)

  • Page 81: Control Commands

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.12 Control commands @EXC Executing control commands Setting Command @EXC, command_1 (, command_2･･･) Response @EXC, command_1 (, command_2･･･) Parameter command_1-5: Control command 1 = COMMAND 1 to 32 = COMMAND 32 Setting...
  • Page 82 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GEC / @SEC Control command (Communication command) Getting Command @GEC, no Response @GEC, no, delay, port, memo, length, command, timeout, retry, interval, retryover, display (, recv_1, recv_2･･･) Setting Command @SEC, no, delay, port, memo, length, command, timeout, retry, interval, retryover, display (, recv_1, recv_2･･･)
  • Page 83 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GEC / @SEC Control command (Communication command) (cont’d) Getting Command @GEC,1 example Response @GEC,1,10,1,POWER,7,5057204F4E0D0A,1000,2,500,0,0,1,2 Description Getting settings registered in control command 1. ・Delay: 10 ms ・Output port: RS-232C CH1 ・Memo: POWER ・Data size: 7 bytes ・Command data: PW ON CR LF (ASCII codes)
  • Page 84 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GEC / @SEC Control command (Displaying received data) Getting Command @GEC, no Response @GEC, no, delay, port, memo, length, command, timeout, retry, interval, retryover, display, delimiter Setting Command @SEC, no, delay, port, memo, length, command, timeout, retry, interval,...
  • Page 85 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GEC / @SEC Control command (Displaying received data) (cont’d) Getting Command @GEC,3 example Response @GEC,3,0,32,POWER STATUS,9,47455420504F570D0A,2000,2,200,0,1,0D Description Getting settings of control command 3. ・Delay time: 0 ms ・Output port: LAN2 ・Memo: POWER STATUS ・Data size: 9 bytes...
  • Page 86 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GEC / @SEC Control command (contact closure) Getting Command @GEC, no Response @GEC, no, delay, port, memo, ccno_1, cc_1, pulse_1 (, ccno_2, cc_2, pulse_2･･･) Setting Command @SEC, no, delay, port, memo, ccno_1, cc_1, pulse_1 (, ccno_2, cc_2, pulse_2･･･)
  • Page 87 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GEC / @SEC Control command (CEC) Getting Command @GEC, no Response @GEC, no, delay, port, memo, error, ch_1, cec_1 (, ch_2, cec_2･･･) Setting Command @SEC, no, delay, port, memo, error, ch_1, cec_1 (, ch_2, cec_2･･･) Response @SEC, no, delay, port, memo, error, ch_1, cec_1 (, ch_2, cec_2･･･)
  • Page 88 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GRC / @SRC Response command Getting Command @GRC, no Response @GRC, no, process, length, command, mask, memo Setting Command @SRC, no, process, length, command, mask, memo Response @SRC, no, process, length, command, mask, memo...
  • Page 89 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GCC / @SCC Control command link Getting Command @GCC, event Response @GCC, event, c_1 (, c_2, c_3･･･) Setting Command @SCC, event, c_1 (, c_2, c_3･･･) Response @SCC, event, c_1 (, c_2, c_3･･･)
  • Page 90 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide [Table 3.2] Parameter of control command execution condition event Execution condition event Execution condition COMMAND A-PLANE A VIDEO:OUT1-IN1 COMMAND A-PLANE B VIDEO:OUT1-IN2 COMMAND B-PLANE A VIDEO:OUT1-IN3 COMMAND B-PLANE B VIDEO:OUT1-IN4 COMMAND C-PLANE A...
  • Page 91 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GTG / @STG Toggle operation Getting Command @GTG, event_1 (, event_2･･･) Response @GTG, event_1, toggle_1 (, event_2, toggle_2･･･) Setting Command @STG, event_1, toggle_1 (, event_2, toggle_2･･･) Response @STG, event_1, toggle_1 (, event_2, toggle_2･･･)
  • Page 92 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GIT / @SIT Ineffective time during control command execution Getting Command @GIT Response @GIT, time Setting Command @SIT, time Response @SIT, time Parameter time : Invalid time 0 = 0 sec. to 999999 = 999.999 sec. [Default] 0 sec.
  • Page 93 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GTL / @STL Lighting condition of execution button Getting Command @GTL, control_1 (, control _2･･･) Response @GTL, control _1, led_1 (, control _2, led_2･･･) Setting Command @STL, control _1, led_1 (, control _2, led_2･･･) Response @STL, control _1, led_1 (, control _2, led_2･･･)
  • Page 94 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GTF / @STF Blinking time of sink device power switch Getting Command @GTF, control _1 (,control _2･･･) Response @GTF, control _1, flash_1 (,control _2, flash_2･･･) Setting Command @STF, control _1, flash_1 (,control _2, flash_2･･･) Response @STF, control _1, flash_1 (,control _2, flash_2･･･)

  • Page 95: Preset Memory

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.13 Preset memory @RCM Loading crosspoint memory Setting Command @RCM, memory Response @RCM, memory Parameter memory : Crosspoint memory 1 to 9 Setting Command @RCM,1 example Response @RCM,1 Description Loading video and audio channels of crosspoint memory 1.
  • Page 96 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GCM / @ECM Editing crosspoint memory Getting Command @GCM, memory Response @GCM, memory, v_1, a_1, v_2, a_2, name Setting Command @ECM, memory, v_1, a_1, v_2, a_2 Response @ECM, memory, v_1, a_1, v_2, a_2...
  • Page 97 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @SCV / @SEV Saving crosspoint memory (Setting video channel) Setting Description Overwriting all Command @SCV, memory (, name) Response @SCV, memory (, name) Setting Description Overwriting partly Command @SEV, memory (, name)
  • Page 98 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @RCA Loading audio channel setting from crosspoint memory Setting Command @RCA, memory Response @RCA, memory Parameter memory: Crosspoint memory 1 to 9 Setting Command @RCA,1 example Response @RCA,1 Description Loading audio channel of crosspoint memory 1.
  • Page 99 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GCA / @ECA Editing crosspoint memory (Setting audio channel) Getting Command @GCA, memory Response @GCA, memory, a_1, a_2, name Setting Command @ECA, memory, a_1, a_2 Response @ECA, memory, a_1, a_2 Parameter memory: Crosspoint memory...
  • Page 100 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @SPM Saving all settings Setting Command @SPM, preset (, name) Response @SPM, preset (, name) Parameter preset: Preset memory 1 to 8 name: Memory name Up to 10 characters using 20 to 7D from ASCII codes.

  • Page 101: Bitmap

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GMU / @SMU Startup settings Getting Command @GMU Response @GMU, state Setting Command @SMU, state Response @SMU, state Parameter state: Startup settings 1 to 9 = Crosspoint memory 1 to 9, 10 = Channel OFF,...
  • Page 102 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GBB / @SBB Background color Getting Command @GBB, ch Response @GBB, ch, red_1, green_1, blue_1 (, red_2, green_2, blue_2, red_3, green_3, blue_3, red_4, green_4, blue_4) Setting Command @SBB, ch_1, bitmap_1, red_1, green_1, blue_1 (, ch_2, bitmap_2, red_2, green_2, blue_2･･･)
  • Page 103 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GBT / @SBT Aspect ratio Getting Command @GBT, ch Response @GBT, ch, aspect_1 (, aspect_2, aspect_3, aspect_4) Setting Command @SBT, ch_1, bitmap_1, aspect_1 (, ch_2, bitmap_2, aspect_2･･･) Response @SBT, ch_1, bitmap_1, aspect_1 (, ch_2, bitmap_2, aspect_2･･･)
  • Page 104 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GZP / @SZP Display position Getting Command @GZP, ch Response @GZP, ch, position_1 (, position_2, position_3, position_4) Setting Command @SZP, ch_1, bitmap_1, position_1 (, ch_2, bitmap_2, position_2･･･) Response @SZP, ch_1, bitmap_1, position_1 (, ch_2, bitmap_2, position_2･･･)
  • Page 105 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GBA / @SBA Assigning input channel Getting Command @GBA, ch Response @GBA, ch, bitmap_1 (, bitmap_2, bitmap_3, bitmap_4, bitmap_5, bitmap_6, bitmap_7, bitmap_8) Setting Command @SBA, ch_1, input_1, bitmap_1 (, ch_2, input_2, bitmap_2･･･) Response @SBA, ch_1, input_1, bitmap_1 (, ch_2, input_2, bitmap_2･･･)
  • Page 106 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GBD / @SBD Dividing bitmap memory Getting Command @GBD Response @GBD, num, block_1 (, block_2･･･) Setting Command @SBD, num, mode (, block_1, block_2･･･) Response @SBD, num, mode, block_1 (, block_2･･･) Parameter num: The number of divides...
  • Page 107 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GFZ / @SFZ Freeze Getting Command @GFZ Response @GFZ, freeze_1, freeze_2 Setting Command @SFZ, ch_1, freeze_1 (, ch_2, freeze_2) Response @SFZ, ch_1, freeze_1 (, ch_2, freeze_2) Parameter freeze_1-2: Setting freeze 0 = OFF [Default], 1 = ON...

  • Page 108: Other Settings

    MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide 3.3.15 Other settings @GLS / @SLS Operation lock Getting Command @GLS Response @GLS, lock Setting Command @SLS, lock Response @SLS, lock Parameter lock: Operation lock 0 = Releasing lock [Default], 1 = Locking, 2 = Changing the current setting...
  • Page 109 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GBZ / @SBZ Buzzer Getting Command @GBZ Response @GBZ, bz Setting Command @SBZ, bz Response @SBZ, bz Parameter bz: Buzzer sound 0 = OFF, 1 = ON [Default] Getting Command @GBZ example...
  • Page 110 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GSS I/O status Getting Command @GSS, channel, mode Response @GSS, channel, mode, status_1 (, status_2･･･) Parameter channel: I/O channel 1 = IN1 to 8 = IN8 11 = OUT1A, 12 = OUT1B, 13 = OUT2A, 14 = OUT2B...
  • Page 111 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GSS I/O status (cont’d) Parameter For format of video input signal Reply example Format of video input signal SDTV/HDTV signal is input, which replies the format 1080i 59.94Hz type and vertical synchronous frequency RGB signal is input, and [Horizontal resolution x Vertical 800 x 600 60.00Hz...
  • Page 112 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GSS I/O status (cont’d) Parameter HDCP authentication Reply example HDCP authentication Device with HDCP 2.2 is connected. HDCP2.2 SUPPORT Device with HDCP 1.4 is connected. HDCP1.4 SUPPORT HDCP NOT Device without HDCP is connected.
  • Page 113 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GSS I/O status (cont’d) Parameter Error code Video output status Audio output status Signal that is not supported Since compressed audio is by MSD series (dot clock is input, audio cannot be output out of range) is input.
  • Page 114 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide @GES Monitor’s EDID Getting Command @GES, channel, mode Response @GES, channel, mode, status_1 (, status_2, status_3, status_4) Parameter channel: Output connector 1 = OUT1A, 2 = OUT1B, 3 = OUT2A, 4 = OUT2B...
  • Page 115 MSD-701UHD / 702UHD / 801UHD/ 802UHD Command Guide User’s Guide (Command Guide) of MSD-701UHD / 702UHD / 801UHD/ 802UHD Ver.1.0.0 Issued on: 14 May 2018 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http://www.idkav.com...
