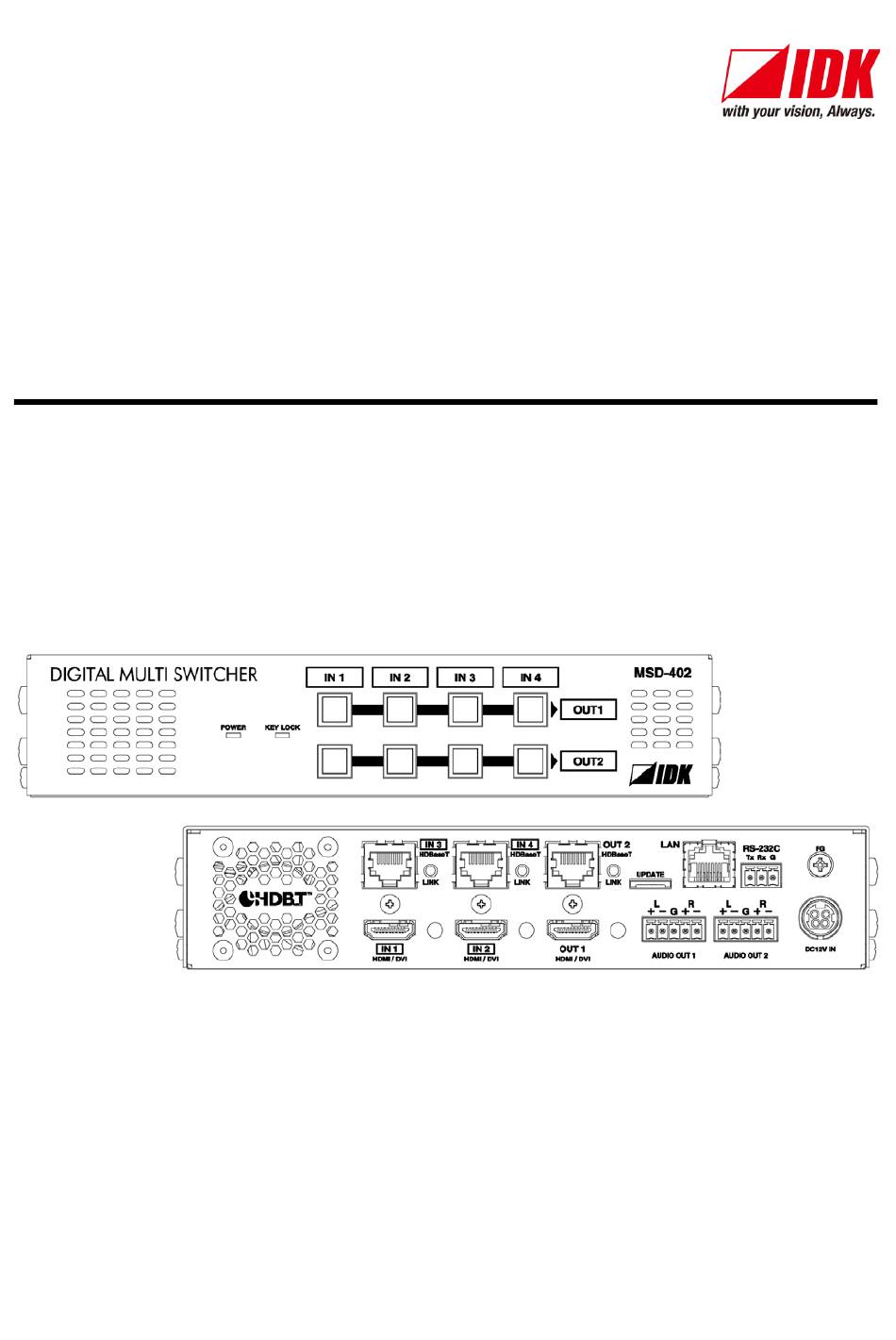

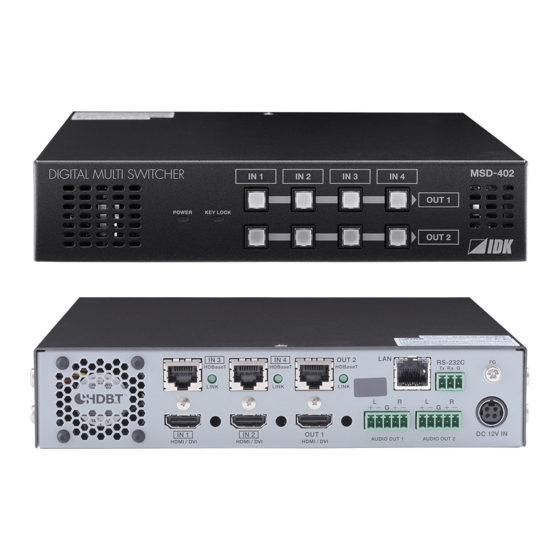

Digital Multi Switcher
MSD-402
<User's Guide>
Ver.1.4.0
● Thank you for choosing our Digital Multi Switcher.
● To ensure the best performance of this product, please read this User's Guide fully and carefully before
using it and keep this manual beside the product.
IDK Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSD-402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK MSD-402

Summary of Contents for IDK MSD-402

  • Page 1 Digital Multi Switcher MSD-402 <User’s Guide> Ver.1.4.0 ● Thank you for choosing our Digital Multi Switcher. ● To ensure the best performance of this product, please read this User’s Guide fully and carefully before using it and keep this manual beside the product.
  • Page 2 MSD-402 User’s Guide Trademarks ● Blu-ray Disc and Blu-ray are trademarks of Blu-ray Disc Association. ● The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
  • Page 3 ● Some of the contents in this user’s guide such as product appearance in diagrams, menu operations, communication commands, and so on may differ from the MSD depending on the version. ● This Users guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...
  • Page 4 MSD-402 User’s Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
  • Page 5 Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK representative.
  • Page 6 MSD-402 User’s Guide Caution Do not place the product in any place where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.

  • Page 7: Table Of Contents

    MSD-402 User’s Guide Table of Contents Included items .............................10 Product outline ............................11 Features ..............................12 Panels ..............................13 Front panel .............................13 Rear panel............................14 Example connection ..........................15 Precautions ............................16 Installing rubber feet ........................16 Installation ............................16 Cabling ............................17 6.3.1 Cables ............................17 6.3.2 Twisted pair cable ........................18 6.3.3...
  • Page 8 MSD-402 User’s Guide 8.4.10 Background color ........................46 8.4.11 Test pattern ..........................46 Quality settings (WEB menu) ......................48 8.5.1 Sharpness ..........................50 8.5.2 Brightness ..........................50 8.5.3 Contrast ..........................50 8.5.4 HUE ............................50 8.5.5 Saturation ..........................51 8.5.6 Black level ..........................51 8.5.7 Gamma ...........................51 8.5.8 Default color ..........................51 Input settings (WEB menu) ......................52...
  • Page 9 MSD-402 User’s Guide 8.10.7 Copying EDID .........................78 8.11 Communication settings (WEB menu) .....................79 8.11.1 RS-232C communication ......................83 8.11.2 IP address/subnet mask/gate way address ................83 8.11.3 TCP port number........................84 8.11.4 MAC address ..........................84 8.12 Preset memory (WEB menu) ......................85 8.12.1 Loading cross point .........................86 8.12.2 Saving cross point ........................86...

  • Page 10: Included Items

    MSD-402 User’s Guide 1 Included items Make sure all items below are included in the package. If any items are missing or damaged, please contact IDK. One (1) MSD-402 (main unit) One (1) DIN plug AC adapter with Three (3) cable clamps...

  • Page 11: Product Outline

    MSD-402 User’s Guide 2 Product outline The IDK MSD-402 (hereafter referred to as “the MSD”) presentation switcher provides 4 inputs and 2 outputs and has a built-in scan converter. For video input, 2 HDBaseT and 2 HDMI/DVI are included. Input video signal is converted to HDMI/DVI or HDBaseT signal and output at up to QWXGA or 1080p.

  • Page 12: Features

    MSD-402 User’s Guide 3 Features ■ Video ・ Up to QWXGA (RB) or 1080p ・ HDMI input cable EQ INPUT: up to 33 ft. (10 m) ・ Up to 328 ft. approx./100 m extension over a Cat6 cable ・ Scan converter ・...

  • Page 13: Panels

    MSD-402 User’s Guide 4 Panels 4.1 Front panel ① ② ③ [Figure 4.1] Front panel drawing [Table 4.1] Front panel’s part name and description Part name Description ① POWER LED Shows power status of the MSD ON: Power is supplied to the MSD OFF: Power is not supplied to the MSD ②...

  • Page 14: Rear Panel

    ③ HDBaseT input Digital (video/audio) signal can be extended up to 100 m/328.08 ft. connector using an IDK’s HDC transmitter together. 【See: 6.3.2 Twisted pair cable】 ④ HDMI output connector Output connector for HDMI and DVI signal to connect to sink devices such as LC monitors and projectors ⑤...

  • Page 15: Example Connection

    MSD-402 User’s Guide 5 Example connection HDBaseT Cat6 Rx for HDMI HDC-RH100-C Cat6 Tx for HDMI HDC-TH100-C 　Up to 328 ft. (100 m) HDMI / DVI HDMI / DVI CAUTION CAUTION DON'T DON'T CONNECT CONNECT Blu-ray player STATUS STATUS STATUS...

  • Page 16: Precautions

    MSD-402 User’s Guide 6 Precautions Before connecting to external devices, follow the precautions below. 6.1 Attaching rubber feet Clean up the MSD main unit, and then attach the provided rubber feet to the bottom four corners of the MSD. 6.2 Installation When installing the MSD, please observe the following precautions.

  • Page 17: Cabling

    [Figure 6.1] Attaching a cable clamp 6.3.1 Cables IDK provides various digital cables such as HDMI, DVI, and twisted pair cables. Select appropriate cables for your system configuration. For analog audio and RS-232C, process the cable as needed to fit the connectors.

  • Page 18: Twisted Pair Cable

    MSD-402 User’s Guide 6.3.2 Twisted pair cable When connecting twisted pair cables to the MSD, please observe the following precautions. ● Cat5e UTP/STP and Cat6 UTP/STP can be used, but we recommend CAT.5E HDC cable* for optimal performance. ● We recommend connecting the FG connector to a ground source.

  • Page 19: Connecting Audio Cables

    In order to output analog audio, fix the cable to the provided 5-pin terminal block and then connect to the MSD. The MSD supports both balanced and unbalanced signals. IDK recommends AWG 28 to AWG16 cable. The maximum exposed portion length is 7 mm (0.28 inch approx.). Up to 7 mm (0.28 inch approx.)

  • Page 20: Din Plug Ac Adapter

    MSD-402 User’s Guide 6.3.5 DIN plug AC adapter ■ Attaching/removing AC plug The shapes of AC plugs with screw-type lock differ from country to country. Use the appropriate AC plug. Contact us if you have any questions. Removing: Slide the AC plug from the AC adapter while holding down the portion mentioned below (①).
  • Page 21 MSD-402 User’s Guide ■ Connecting DC plug Connect the DC plug to the MSD until it clicks. When you disconnect the DC plug from the MSD, hold the portion mentioned below. Hold this portion while pulling out the DC plug.

  • Page 22: Basic Operation

    MSD-402 User’s Guide 7 Basic operation 7.1 Required time The MSD starts when the AC adapter is connected and power is supplied. All LEDs other than the POWER LED light until the MSD starts up completely. After that, it takes few seconds to execute the following operations.

  • Page 23: Setting And Canceling Key Lock

    LINK mode: When an input channel is switched in the HDC-TH200 side, the setting set in “8.8.4 Window transition effect” will be applied. ・ CHANGE mode: The input channel of the HDC-TH200 is switched remotely from the MSD-402. HDBaseT Input channel of HDC-TH200 is...

  • Page 24: Initialization

    MSD-402 User’s Guide 7.5 Initialization Initialization operation is assigned to the “IN1” key of OUT1. You can initialize settings to factory default by turning on while pressing the “IN1” key of OUT1. Keep pressing the “IN 1” key of OUT1 until LEDs other than POWER LED start blinking.
  • Page 25 MSD-402 User’s Guide [Table 7.3] Factory default settings (2/3) Function Factory default setting Page Setting position, size, and masking Sharpness Input Brightness 100% Input Contrast R / G / B: 100% 0° Saturation 100% ±0.0% Black level Output Brightness 100%...
  • Page 26 MSD-402 User’s Guide Multi channel audio output DOWN MIX Test tone [Table 7.4] Factory default settings (3/3) Function Factory default setting Page EDID EDID INTERNAL EDID Resolution for PCs 1080p (1920x1080) Input resolution for AV devices AUTO Deep Color 24-BIT COLOR...

  • Page 27: Pinp (Picuture In Picuture)

    JavaScript is used for the MSD WEB browser. When you set the MSD from WEB browser menu, enable JavaScript before setting up. Refer to each browser’s help menu if you do not know how to enable JavaScript. Tip: IDK tests the MSD under the following environment: Windows 7 Professional WEB browser...

  • Page 28: Web Menu

    MSD-402 User’s Guide 7.7.2 WEB menu ① ② ③ [Figure 7.5] WEB menu ① The selected [MENU] page is displayed at the right side of the window. ② For some menus, you can select channels by clicking the desired tab.

  • Page 29: Menu

    MSD-402 User’s Guide 8 Menu 8.1 WEB menu list 【See: 7.7 WEB menu operation】 8.6 Input settings (WEB menu) 8.3 Crosspoint [MENU] [CROSS POINT] [MENU] [INPUT SETTING] CROSS POINT CHANNEL SELECT CROSS POINT INPUT VIDEO DETECT OUTPUT TIMING PinP ON...
  • Page 30 MSD-402 User’s Guide 8.9 Audio settings (WEB menu) 8.13 Setting bitmap (BITMAP window) [MENU] [AUDIO] [MENU] [BITMAP] CROSS POINT OUTPUT AUDIO LEVEL CROSS POINT SEND BITMAP OUTPUT TIMING BITMAP OUTPUT OUTPUT TIMING OUTPUT MUTE IMAGE EFFECT OUTPUT CONNECTER IMAGE EFFECT...

  • Page 31: Input Signal Automatic Detection

    MSD-402 User’s Guide ■ Some menus can be set for each input or output, and each setting range is mentioned in the each menu description. [Table 8.1] Setting range Setting for Description Each output channel Can be set for each output channel.
  • Page 32 MSD-402 User’s Guide The MSD saves data of 50 input devices for each channel, and the data is used to check whether the input signal have been input before or not. To save the data of the 51st device, the oldest data that have not been input recently will be deleted, instead.

  • Page 33: Crosspoint Operation (Web Menu)

    MSD-402 User’s Guide 8.3 Crosspoint You can set input/output related settings, PinP, remote input channel switching of HDC-TH200, channel name, and key lock. ② ① ③ ④ ⑤ [Figure 8.5] Crosspoint page ① 8.3.1 Selecting input channel (WEB menu) (P.34) ②...

  • Page 34: Selecting Input Channel (Web Menu)

    MSD-402 User’s Guide 8.3.1 Selecting input channel (WEB menu) CROSS POINT → CHANNEL SELECT Menu Setting for Each output channel, each PinP output Setting values OUT1 :IN1, IN2, IN3, IN4, OFF [Default] OUT2 :IN1, IN2, IN3, IN4, OFF [Default] PinP1...

  • Page 35: Remote Input Channel Switching Of Hdc-Th200 Inputs

    - When the CHANGE mode is used, automatic input switching of the HDC-TH200 is disabled. However, when a channel is switched manually, the video of the MSD-402 is switched with the setting that is set in “8.8.4 Window transition effect”.

  • Page 36: Editing Channel Name

    MSD-402 User’s Guide 8.3.4 Editing channel name CROSS POINT → OTHERS Menu Setting for Input: each input channel Output: each output channel PinP: each PinP output Setting values [Table 8.3] Editing channel name Click the “NAME EDIT” button to open the page below. Type the desired channel name up to 10 half-width alphanumeric characters for each channel name.

  • Page 37: Setting And Canceling Key Lock (Web Menu)

    MSD-402 User’s Guide 8.3.5 Setting and canceling key lock (WEB menu) CROSS POINT → OTHERS Menu Setting values OFF [Default], ON Click the “KEY LOCK” button to lock the MSD’s front panel keys. The “KEY LOCK” button lights while keys are locked.

  • Page 38: Output Timing (Web Menu)

    MSD-402 User’s Guide 8.4 Output timing You can set output timing from this page and select channel you want to set from each tab. Position, size, and masking can be set for the input side and output side. Normally, set them for input side. If edges are cut off due to enlarged display in the sink device side or if enlarging output video for all inputs at once, set them for the output side.
  • Page 39 MSD-402 User’s Guide ① ② ③ ④ ⑤ [Figure 8.8] Output timing page (PinP output tab) ① 8.4.2 Aspect ratio for sink device (P.41) ② 8.4.6 Display position (P.43) ③ 8.4.7 Display size (P.43) ④ 8.4.8 Masking (P.44) ⑤ 8.4.9 Automatic sizing (P.46) ①...

  • Page 40: Output Resolution

    MSD-402 User’s Guide 8.4.1 Output resolution OUTPUT TIMING → RESOLUTION Menu Setting for Each output channel Setting value ・AUTO ・WXGA+ ・720p 50Hz [Default] (1440x900) ・VGA ・WXGA++ ・720p 59.94Hz (640x480) (1600x900) ・SVGA ・UXGA ・720p 60Hz (800x600) (1600x1200) ・XGA ・WSXGA+ ・1080i 50Hz...

  • Page 41: Aspect Ratio For Sink Device

    MSD-402 User’s Guide 8.4.2 Aspect ratio for sink device OUTPUT TIMING → MONITOR ASPECT Menu Setting for Each output channel, each PinP output Setting value ・RESOLUTION [Default ・5:4 ・16:9 ・4:3 ・5:3 ・16:10 You can set the aspect ratio of the connected sink device.

  • Page 42: Aspect Ratio Control

    MSD-402 User’s Guide 8.4.4 Aspect ratio control Menu OUTPUT TIMING→ASPECT PROCESS Setting for Each input channel, each input signal Setting value L-BOX/S-PANEL: Letter box/side panel [Default] S-CUT/TB-CUT: Side cut/top bottom cut You can get how to restore aspect ratio. Output signal...

  • Page 43: Display Position

    MSD-402 User’s Guide 8.4.6 Display position OUTPUT TIMING → POSITION Menu Setting for Input channel : each input channel, each input signal Output channel : each output channel PinP output : each PinP output Setting value Input channel: Horizontal position (-Horizontal input size to +Horizontal output resolution...

  • Page 44: Masking

    MSD-402 User’s Guide You can set the display size of input video. The video size is scaled based on the upper left of the input video set in “8.4.6 Display position”. If you set “LINK” to ”ON”, only settings of ”H”(Horizontal) can be set and “V” is set automatically with the current aspect ratio kept.
  • Page 45 MSD-402 User’s Guide Note: For input masking setting, if the resolutions of each output are not the same, the output resolution of OUT1 will be the standard. Masking is not performed if a bitmap is displayed on the PinP window “8.13.2 Outputting bitmap image” or...

  • Page 46: Automatic Sizing

    MSD-402 User’s Guide 8.4.9 Automatic sizing OUTPUT TIMING → AUTO SIZING Menu Setting for Input channel : each input channel, each input signal Output channel : each output channel PinP output : each PinP output For input and output sides, items below will be initialized automatically to enable input video to be displayed on a full screen of a sink device.
  • Page 47 MSD-402 User’s Guide You can select a test pattern to be output instead of displaying video. All settings of “8.5 Quality settings (WEB menu)” will be invalid while a test pattern is displayed. For “OUTPUT FRAME”: Use this pattern if edges are cut off due to enlargement display on the sink device.

  • Page 48: Quality Settings (Web Menu)

    MSD-402 User’s Guide 8.5 Quality settings (WEB menu) You can set items in the following figure. Items that can be set for each input channel: corrects input color bias. Items that can be set for each output channel: adjusts color brightness.
  • Page 49 MSD-402 User’s Guide ① ② ③ ④ ⑤ ⑥ ⑦ [Figure 8.14] Quality setting page (input channel tab) ① 8.5.1 Sharpness (P.50) ② 8.5.2 Brightness (P.50) ③ 8.5.3 Contrast (P.50) ④ 8.5.4 HUE (P.50) ⑤ 8.5.5 Saturation (P.51) ⑥ 8.5.6 Black level (P.51) ⑦...

  • Page 50: Sharpness

    MSD-402 User’s Guide 8.5.1 Sharpness IMAGE EFFECT → SHARPNESS Menu Setting for Each input channel, each input signal Setting value -5 to +15 [Default]:0 You can set the sharpness of input signal. 8.5.2 Brightness IMAGE EFFECT → BRIGHTNESS Menu Setting for...

  • Page 51: Saturation

    MSD-402 User’s Guide 8.5.5 Saturation IMAGE EFFECT → SATURATION Menu Setting for Each input channel, each input signal Setting value 0% to 200% [Default]: 100% You can set the saturation of input signal. 8.5.6 Black level IMAGE EFFECT → SETUP LEVEL...

  • Page 52: Input Settings (Web Menu)

    MSD-402 User’s Guide 8.6 Input settings (WEB menu) You can set input settings. - Upper tabs (“IN1”, “IN2”, “IN3”, and “IN4”): Selects channels. - Other items: Sets common settings for all input channels. ① ② ③ ④ ⑤ [Figure 8.15] Input setting page ①...

  • Page 53: No-Signal Input Monitoring

    MSD-402 User’s Guide 8.6.1 No-signal input monitoring INPUT SETTING → INPUT VIDEO DETECT Menu Setting for Each input channel Setting value OFF, 2000ms to 15000ms (100 ms steps) [Default]: 10000ms If you change EDID settings of the MSD or power off/on the MSD, the source device may not output video signal.

  • Page 54: Input Equalizer

    MSD-402 User’s Guide 8.6.3 Input equalizer INPUT SETTING → INPUT EQUALIZER Menu Setting for Each input channel (only for HDMI connector) Setting value ON [Default], OFF HDMI input connector has an equalizer circuit to correct attenuated signal caused when a long cable is connected.

  • Page 55: Fixing Setting For Each Input

    【See: 8.2 Input Signal Automatic Detection】 You can select settings saved for each input signal or current settings in this menu. “ALL FIXED”: The current settings are used to output video. The MSD-402 does not load settings saved for each input signal.

  • Page 56: Input Timing (Web Menu)

    MSD-402 User’s Guide 8.7 Input timing (WEB menu) You can set the input timing of input video. Since the MSD loads the optimal table from the built-in tables and adjusts the input timing automatically, you do not need to set this menu. However, if signal which is not registered in the MSD tables are input or if part of the output video is cut off by using the standard table registered in the MSD, set the input timing manually.

  • Page 57: The Total Number Of Horizontal Dots

    MSD-402 User’s Guide 8.7.1 The total number of horizontal dots INPUT TIMING → H TOTAL DOTS Menu Setting for Each input channel, each input signal Setting value 400DOT to 4125DOT [Default] varies depending on the input signal. You can check the total number of horizontal dots. This menu is only for displaying but not setting.

  • Page 58: Active Area

    MSD-402 User’s Guide 8.7.3 Active area INPUT TIMING → DISPLAY Menu Setting for Each input channel, each input signal Setting value [Table 8.7] Settings of active area [Table 8.7] Settings of active area Function Setting value Horizontal active area 64DOT to 2900DOT (The total number of horizontal dots－64 or less) Vertical active area 10LINE to 2048LINE (The total number of vertical lines－10 or less)

  • Page 59: Output Settings (Web Menu)

    MSD-402 User’s Guide 8.8 Output settings (WEB menu) You can set output settings from this page. You can select channel you want to set from each tab. ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬...
  • Page 60 MSD-402 User’s Guide ① ② ③ ④ ⑤ [Figure 8.20] Output setting (PinP output tab) ① 8.8.3 Output video with no input video (P.62) ② 8.8.4 Window transition effect (P.62) ③ 8.8.5 Window transition speed (P.62) ④ 8.8.12 Priority of input channel automatic switching (P.65) ⑤...

  • Page 61: Output Mode

    MSD-402 User’s Guide 8.8.1 Output mode OUTPUT SETTING → OUTPUT MODE Menu Setting for Each output channel Setting value ・DVI MODE ・HDMI YCbCr4:2:2 MODE ・HDMI RGB MODE ・HDMI YCbCr4:4:4 MODE [Default] You can select an output mode. Select “HDMI YCbCr4:4:4 MODE” to output video with the optimal mode automatically even if a sink device that does not support HDMI component signal or DVI signal is connected.

  • Page 62: Output Video With No Input Video

    MSD-402 User’s Guide 8.8.3 Output video with no input video OUTPUT SETTING → VIDEO OUTPUT Menu Setting for Each output channel, each PinP output Setting value ・BLUE [Default] ・BACKGROUND COLOR ・BLACK You can set the color of the video to be output when no video signal is input from the selected input. The setting will be valid when “8.8.2 Synchronous signal output with no input video”...

  • Page 63: Wipe Color

    MSD-402 User’s Guide 8.8.6 Wipe color OUTPUT SETTING → WIPE COLOR Menu Setting for Each output channel Setting value R / G / B: 0 to 255 [Default]: R / G / B: 0 (black) You can set the wipe color while switching video input when the input channel is switched.

  • Page 64: Deep Color

    MSD-402 User’s Guide 8.8.9 Deep Color OUTPUT SETTING → DEEP COLOR OUTPUT Menu Setting for Each output channel Setting value 24-BIT COLOR [Default], 30-BIT COLOR You can select the color depth of HDMI signal. “30-BIT COLOR”: signal is output with “30-BIT COLOR” only if a sink device supporting Deep Color is connected.

  • Page 65: Priority Of Input Channel Automatic Switchin

    MSD-402 User’s Guide 8.8.12 Priority of input channel automatic switching INPUT SETTING → AUTO SWITCHING ON / AUTO SWITCHING OFF Menu Setting for Each input channel, each output channel, each PinP output Setting value [Table 8.9] Setting of priority of input channel automatic switching...

  • Page 66: Masking Time After Automatic Switching Of Input Channel

    MSD-402 User’s Guide ■ AUTO SWITCHING OFF AUTO SWITCHING OFF menu switches input signal when the input signal changes from “ON” to “OFF”. The MSD switches input signal automatically based on following conditions. ・Switched to the input channel having input signal and the highest priority.

  • Page 67: Audio Settings (Web Menu)

    MSD-402 User’s Guide 8.9 Audio settings (WEB menu) HDMI digital audio supports the following formats. Change the audio settings according to devices connected to the HDMI and HDBaseT output connectors. Only “2 channel linear PCM” can be input by factory default. If you want to use “Multi channel linear PCM” or bit stream signal (compressed audio), set “Audio format”...
  • Page 68 MSD-402 User’s Guide You can set audio input and output settings. - Upper tabs (“OUT1” and “OUT2”): Selects channels. - Other items: Sets common settings for all output channels. ① ② ③ ④ ⑤ ⑥ [Figure 8.25] Audio setting ①...

  • Page 69: Output Level

    MSD-402 User’s Guide 8.9.1 Output level AUDIO → OUTPUT LEVEL Menu Setting for Each output channel Setting value -60dB to +10dB [Default] ±0dB You can set the audio output level. If you change the output level while audio output mute is set to ”ON”, mute is canceled.

  • Page 70: Multi Channel Audio Output

    MSD-402 User’s Guide 8.9.4 Multi channel audio output AUDIO → MULTI AUDIO Menu Setting for Each output channel Setting value ・DOWN MIX [Default] ・CH1/CH2 STEREO ・CH7/CH8 STEREO ・CH5/CH6 MONO ・CH3/CH4 STEREO ・CH1/CH2 MONO ・CH7/CH8 MONO ・CH5/CH6 STEREO ・CH3/CH4 MONO You can select an audio format (“DOWN MIX”, “STEREO”, “MONO”) used for analog audio output connectors and sink devices that do not support multi-channel linear PCM.

  • Page 71: Edid: Extended Display Identification Data (Web Menu)

    MSD-402 User’s Guide 8.10 EDID: Extended Display Identification Data (WEB menu) You can set or customize the EDID to be sent to the source device. Change the setting as needed. ■ Setting EDID (1) If you use copied EDID, copy the desired EDID from the sink device.
  • Page 72 MSD-402 User’s Guide You can set EDID settings. - Upper tabs (“IN1”, “IN2”, “IN3”, and “IN4”): Selects channels. - Other items: Sets common settings for all channels. ① ② ③ ④ ⑤ ⑥ ⑦ [Figure 8.27] EDID ① 8.10.1 EDID (P.73) ②...

  • Page 73: Edid

    MSD-402 User’s Guide 8.10.1 EDID EDID → EDID DATA Menu Setting for Each input channel Setting value ・INTERNAL EDID [Default] ・OUT1 MONITOR ・OUT2 MONITOR ・COPY DATA1 to COPY DATA8 You can set the EDID to be sent to the source device from built-in EDID (“INTERNAL EDID”), connected sink device’s EDID (“MONITOR”) and copied EDID (“COPY DATA”).

  • Page 74: Resolution For Pcs

    MSD-402 User’s Guide 8.10.2 Resolution for PCs EDID → PC RESOLUTION Menu Setting for Each input channel Setting value ・SVGA(800x600) ・Quad-VGA(1280x960) ・WXGA+(1440x900) ・1080p(1920x1080) ・XGA(1024x768) ・SXGA(1280x1024) ・WXGA++(1600x900) ・WUXGA(1920x1200) ・720p(1280x720) ・WXGA(1360x768) ・UXGA(1600x1200) ・QWXGA(2048x1152) ・WXGA(1280x768) ・WXGA(1366x768) ・WSXGA+(1680x1050) ・WXGA(1280x800) ・SXGA+(1400x1050) ・1080i(1920x1080) [Default] 1080p(1920x1080) You can set the desired resolution that is output from source devices.

  • Page 75: Input Resolution For Av Devices

    MSD-402 User’s Guide 8.10.3 Input resolution for AV devices EDID → AV RESOLUTION Menu Setting for Each input channel Setting value ・AUTO [Default ・480p ・1080i ・UNUSED ・720p ・1080p You can set the resolution requested to be output from AV devices (such as Blu-ray players).

  • Page 76: Deep Color

    MSD-402 User’s Guide 8.10.4 Deep Color EDID → DEEP COLOR INPUT Menu Setting for Each input channel Setting value 24-BIT COLOR [Default], 30-BIT COLOR You can set the color depth to be output from the source device. This menu is valid only if you select “INTERNAL EDID” for “8.10.1 EDID” and you select a resolution other than “UNUSED”...

  • Page 77: Speaker Configuration

    MSD-402 User’s Guide 8.10.6 Speaker configuration EDID → SPEAKER Menu Setting for Each input channel Setting value Setting mode : AUTO [Default], MANUAL Each speaker : ON, OFF The number of speakers: 1 to 8 [Table 8.15] Default speaker configuration...

  • Page 78: Copying Edid

    MSD-402 User’s Guide You can set the speaker configuration of multi channel audio. This menu is valid only if you select “INTERNAL EDID” for “8.10.1 EDID” and you select a resolution other than “UNUSED” for “8.10.3 Input resolution for AV devices”.

  • Page 79: Communication Settings (Web Menu)

    MSD-402 User’s Guide 8.11 Communication settings (WEB menu) You can set communication settings for RS-232C and LAN communications. ① ② ③ ④ [Figure 8.29] Communication ① 8.11.1 RS-232C communication (P.83) ② 8.11.2 IP address/Subnet mask/Gate way address (P.83) ③ 8.11.3 TCP port number (P.84) ④...
  • Page 80 MSD-402 User’s Guide ■ RS-232C communication The RS-232C connector of the MSD can receive control command from PCs or external control devices. 【See: 6.3.4 Connecting RS-232C cable】 Notes: The MSD does not support following RS-232C communication. - Communication command control from HDC’s RS-232C connector which is connected to HDBaseT input/output connector to the MSD.
  • Page 81 MSD-402 User’s Guide ■ LAN communication The MSD’s LAN connector and the HDC’s LAN connector that is connected to an HDBaseT input or output connectors are all connected through a switching hub. All LAN connectors can be used for outputting communication command control from PCs and external control devices, and control from a web browser.
  • Page 82 AUDIO OUT 2 ANALOG RGB / YPbPr / VIDEO ANALOG RGB / YPbPr / VIDEO HDMI / DVI / ANALOG Twisted pair cable Loop problem Twisted pair cable MSD-402 Switching hub [Figure 8.33] Example of loop problem between IDK products...

  • Page 83: Rs-232C Communication

    MSD-402 User’s Guide 8.11.1 RS-232C communication :COMMUNICATION → RS-232C → BAUD RATE Menu Baud rate :COMMUNICATION → RS-232C → DATA BIT LENGTH Data bit length :COMMUNICATION → RS-232C → PARITY Parity check :COMMUNICATION → RS-232C → STOP BIT Stop bit Setting value [Table 8.16] RS-232C settable items...

  • Page 84: Tcp Port Number

    MSD-402 User’s Guide 8.11.3 TCP port number COMMUNICATION → LAN → PORT NUMBER Menu Setting for Each connection Setting value [Table 8.17] Settings of TCP port number [Table 8.17] Settings of TCP port number Setting value Communication command control 23,1100,6000 to 6999...

  • Page 85: Preset Memory (Web Menu)

    MSD-402 User’s Guide 8.12 Preset memory (WEB menu) You can set the crosspoint memory, preset memory, and others. ① ② ③ ④ ⑤ ⑥ ⑦ [Figure 8.34] Preset memory ① 8.12.1 Loading crosspoint (P.86) ② 8.12.2 Saving crosspoint (P.86) ③...

  • Page 86: Loading Crosspoint

    MSD-402 User’s Guide 8.12.1 Loading crosspoint PRESET MEMORY → LOAD CROSS POINT Menu Setting value No.1 to No.9 You can load the I/O channel settings of video and audio saved in the crosspoint memory. Click the “LOAD” button to open the dialog box and click the “OK” button to load the crosspoint memory.

  • Page 87: Editing Crosspoint

    MSD-402 User’s Guide 8.12.3 Editing crosspoint PRESET MEMORY → EDIT CROSS POINT Menu Setting for Each crosspoint memory Setting value [Table 8.18] Editing items of crosspoint [Table 8.18] Editing items of crosspoint Setting item Setting value Default Memory name (NAME)

  • Page 88: Saving All Settings

    MSD-402 User’s Guide 8.12.5 Saving all settings PRESET MEMORY → SAVE ALL SETTING Menu Setting value No.01 to No.16 You can save up to 16 preset memories (up to 10 characters) of settings below. Click the “SAVE” button to open the dialog box and click the “OK” button to save the all settings.

  • Page 89: Copying Output Setting

    MSD-402 User’s Guide 8.12.6 Copying output setting PRESET MEMORY → COPY OUTPUT MEMORY Menu Setting value OUT1 → OUT2, OUT2 → OUT1 You can copy output setting from one output to another output. PinP output settings are also copied at the same time.

  • Page 90: Startup Setting

    MSD-402 User’s Guide 8.12.7 Startup setting PRESET MEMORY → START UP Menu Setting value [Table 8.21] Startup settings You can set the memory loading at startup. [Table 8.21] Startup settings Item Setting value Operation at startup Last channel LAST CHANNEL [Default] Starts with the settings last time the MSD powered off.

  • Page 91: Setting Bitmap (Web Menu)

    MSD-402 User’s Guide 8.13 Setting bitmap (BITMAP window) You can set bitmap to be displayed on a sink device. - Items ① to ⑦: Selects channels from tabs. - Items ⑧ and ⑨: Sets common settings for all channels ①...
  • Page 92 MSD-402 User’s Guide ① ② ③ ④ ⑤ ⑥ ⑦ [Figure 8.38] Setting bitmap (PinP output tab) ① 8.13.2 Outputting bitmap image (P.94) ② 8.13.4 Aspect ratio (P.95) ③ 8.13.6 Input channel assignment (P.97) ④ 8.13.7 Bitmap output at startup (P.97) ⑤...

  • Page 93: Sending Bitmap File

    Menu BITMAP→SEND BITMAP You can set the bitmap image to be displayed on a sink device. Up to four bitmaps can be registered. IDK’s logo is displayed by factory default. Bitmaps can be enlarged but cannot be reduced. The larger a resolution, the longer output time. It may take a maximum of approximately six seconds to output a bitmap.

  • Page 94: Outputing Bitmap Image

    MSD-402 User’s Guide 8.13.2 Outputting bitmap image BITMAP → BITMAP OUTPUT Menu Setting for Each output channel Setting value OFF [Default], ON (BITMAP1 ON to BITMAP4 ON) You can enable/disable the bitmap image output. If several bitmaps are registered, select the bitmap number you want to output.

  • Page 95: Aspect Ratio

    MSD-402 User’s Guide 8.13.4 Aspect ratio BITMAP → ASPECT Menu Setting for Each output channel, each bitmap Setting value [Figure 8.39] Setting aspect ratio ●AUTO [Default] ●FULL ●THROUGH Bitmap (1024x768) (1920x1080) (1920x1080) (1920x1080) [Figure 8.39] Setting aspect ratio You can set the aspect ratio of bitmap.

  • Page 96: Display Position

    MSD-402 User’s Guide 8.13.5 Display position BITMAP → POSITION Menu Setting for Each output channel, each bitmap Setting value [Figure 8.40] Display position ● TOP-LEFT ● TOP-RIGHT ● CENTER [Default] ● ● BOTTOM-RIGHT BOTTOM-LEFT [Figure 8.40] Display position You can set the display position of the bitmap.

  • Page 97: Input Channel Assignment

    MSD-402 User’s Guide 8.13.6 Input channel assignment BITMAP → CHANNEL ASSIGN Menu Setting for Each input channel, each output channel Setting value Input channel : IN1 to IN4 [Default] IN1 Registered bitmap : OFF [Default] BITMAP1 ON to BITMAP4 ON A bitmap can be treated as an input video source by assigning the bitmap to any input that is not currently being used.
  • Page 98 MSD-402 User’s Guide ■ Preview of memory dividing result You can preview the results of memory dividing. ③ ① ② ① ④ ③ ② [Figure 8.41] MEMORY AREA PREVIEW ① Current memory area ② Memory area after dividing ③ Memory area in where bitmap is registered ④...
  • Page 99 MSD-402 User’s Guide ■ Dividing mode AUTO RESIZE DELETE 2MByte 2MByte 2MByte ① ① ① 2MByte 2MByte 2MByte ② ② ② 8MByte 8MByte 8MByte ① ① ① Into four Into four Into four 2MByte 2MByte 2MByte ③ ③ ③ sections...

  • Page 100: Input Image Capture

    MSD-402 User’s Guide 8.13.9 Input image capture BITMAP → VIDEO CAPTURE Menu Setting value [Table 8.27] Setting items for input video capture [Table 8.27] Setting items for input video capture Setting item Setting value Default Register number No.1 to No.4 No.1...

  • Page 101: Other Settings (Web Menu)

    MSD-402 User’s Guide 8.14 Other settings (WEB menu) You can set other settings from this page. ① ② ③ ④ ⑤ [Figure 8.43] Other settings ① 8.14.1 Startup setting for key lock (P.102) ② 8.14.2 Automatic reload time (P.102) ③...

  • Page 102: Startup Setting For Key Lock

    MSD-402 User’s Guide 8.14.1 Startup setting for key lock OTHERS → STARTUP KEY LOCK Menu Setting value AUTO [Default], UNLOCK, LOCK You can set key lock for when the MSD is powered on. AUTO: the previous key lock mode will be applied.

  • Page 103: Initialization (Web Menu)

    MSD-402 User’s Guide 8.14.4 Initialization (WEB menu) OTHERS → INITIALIZE Menu You can initialize the MSD. If you click the “NORMAL INITIALIZE” button, the MSD will be initialized except for LAN communication settings. This menu is useful when you operate the MSD from WEB browser.

  • Page 104: Displaying Status (Web Menu)

    MSD-402 User’s Guide 8.15 Displaying status (WEB menu) You can confirm input and output signal status from this page. ① ② ③ ④ [Figure 8.44] Input and output signal status ① 8.15.1 Input signal status (P.105) ② 8.15.2 Sink device status (P.108) ③...

  • Page 105: Input Signal Status

    MSD-402 User’s Guide 8.15.1 Input signal status STATUS → INPUT STATUS Menu Display value [Table 8.29] Input signal status You can confirm the input signal status that is from video input connectors. [Table 8.29] Input signal status VIDEO STATUS Signal status...
  • Page 106 MSD-402 User’s Guide ■ Input signal type [Table 8.31] Input signal type Display simple Signal HDMI MODE HDMI signal DVI MODE DVI signal No video signal is input. ■ HDCP status [Table 8.32] HDCP status Display simple Description The signal is protected by HDCP The signal is not protected by HDCP No video signal is input.
  • Page 107 MSD-402 User’s Guide AUDIO STATUS ■ Audio signal type [Table 8.35] Audio signal type Display simple Signal LINEAR PCM Linear PCM Compressed audio (Dolby Digital, DTS, COMPRESSED AUDIO etc.) NO SIGNAL No audio signal is input. ■ Sampling frequency [Table 8.36] Sampling frequency...

  • Page 108: Sink Device Status

    MSD-402 User’s Guide 8.15.2 Sink device status STATUS → MONITOR STATUS Menu Display value [Table 8.40] Sink device status You can confirm the sink device status. Statuses of all output channels are displayed. [Table 8.40] Sink device status MONITOR STATUS...
  • Page 109 MSD-402 User’s Guide 8.15.3 Sink error status Menu STATUS→ERROR STATUS Display value [Table 8.44] Error status of sink device You can confirm the error statuses of sink devices. Error statuses of all output channels are displayed. Error messages of audio output are not displayed on PinP output.
  • Page 110 MSD-402 User’s Guide audio. Channel OFF Input channel is set to “OFF”. [Table 8.47] Error message (analog audio output) Error message Audio output No message: Video is output correctly. Audio Mute “8.9.2 Output mute” is set to “ON” Analog Out OFF “8.9.3 Audio output connector”...

  • Page 111: Displaying Edid Of Sink Device

    MSD-402 User’s Guide 8.15.4 Displaying EDID of sink device STATUS → MONITOR STATUS Menu Setting value [Table 8.48] Sink device You can display EDID of the sink device that is connected to the video output connector. “UNCONNECTED” is displayed in “MONITOR NAME” if no sink device is connected.

  • Page 112: Product Specification

    MSD-402 User’s Guide 9 Product specification Item Description 2 inputs HDMI Deep Color (*1) / DVI 1.0 HDMI / DVI TMDS single link, HDCP 1.4, TMDS clock: 25 MHz to 225 MHz Built-in cable EQ, EDID emulation Connector: Female HDMI Type A (19-pin)
  • Page 113 The maximum extension distance was obtained when IDK’s CAT.5E HDC cable was used. The distance may not be extended with some device combinations, cabling method, or other manufacturer’s cable. Video may be disturbed or may not be output even if signals are within the range mentioned above. Operations may not be stable with some LCD devices;...

  • Page 114: Troubleshooting

    MSD-402 User’s Guide 10 Troubleshooting This chapter recommends what to do if you have problems operating the MSD. In case the MSD does not work correctly, please check the following items first. ･Are the MSD and all devices plugged in and powered on normally? ･Are cables connected correctly?
  • Page 115 MSD-402 User’s Guide Problem Cause/Check item/Solution Page ・If no error code is displayed: － Video is not output. Set “8.4.11 Test pattern (P.46)” to a pattern other than “OFF”. If any test pattern is not output, check [4] to [6]. If a test pattern is output, the source device may not output video.
  • Page 116 MSD-402 User’s Guide Problem Cause/Check item/Solution Page － Video from HDMI/DVI If the problem occurs in all input channels or at the time of displaying a test output is choppy or has pattern and a long cable is connected for output, then change the output noise.
  • Page 117 MSD-402 User’s Guide Problem Cause/Check item/Solution Page It takes a long time to If you set the HDCP output to “HDCP INPUT ONLY”, some sink devices output video after video may fail HDCP authentication. In this case, it may temporarily not output input is switched.
  • Page 118 MSD-402 User’s Guide Problem Cause/Check item/Solution Page ・Error message: “Digital Out OFF” Audio is not output. Turn “8.9.3 Audio output connector (P.69)” to other than “ANALOG”. ・Error message: “Analog Out OFF” Turn “8.9.3 Audio output connector (P.69)” to other than “DIGITAL”...
  • Page 119 MSD-402 User’s Guide Problem Cause/Check item/Solution Page Multi-channel audio is In order to output multi-channel audio, set the number of speakers. not output. Only audio of a specific Is “DOWN MIX” is set for multi-channel audio output? scene is not output from...
  • Page 120 MSD-402 User’s Guide User’s guide of MSD-402 Ver.1.4.0 Issued on: 7 September 2018 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http: //www.idkav.com IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: sales@idkav.com URL: http: //www.idkav.com...

Table of Contents
